Ashland I-110TS User Manual

Page 15

background image

1

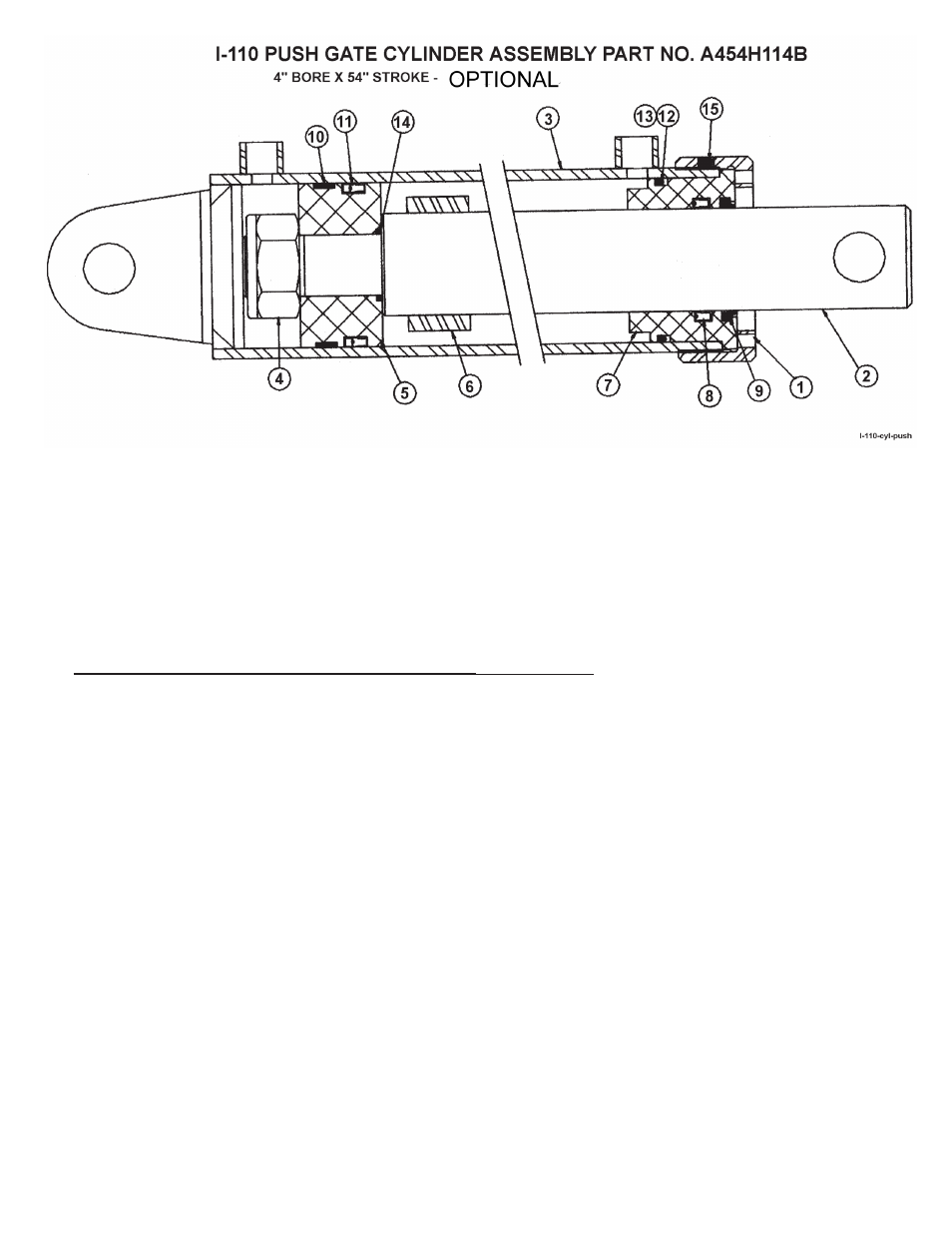

KEY NO. QTY. PART NO. DESCRIPTION

1

1

A175H10

Collar

2

1

A130H30

2 1/2” Rod

3

1

A130H29

Barrel weldment

4

1

A140H13

Lock nut (2” - 12)

5

1

A175H12

Piston

6

1

A17506

Spacer

7

1

A175H09

Head

8

1

A140H07

Rod seal

9

1

A140H08

Rod wiper

10

1

A175H07

Wear ring

11

1

A175H05

Piston seal

12

1

A175H03

O-ring

13

1

A175H04

Backup ring

14

1

A140H14

O-ring

15

1

Nylon tip set screw (3/8” NC x 3/8)

16

1

A175H15

Seal kit (Items 8-14)
