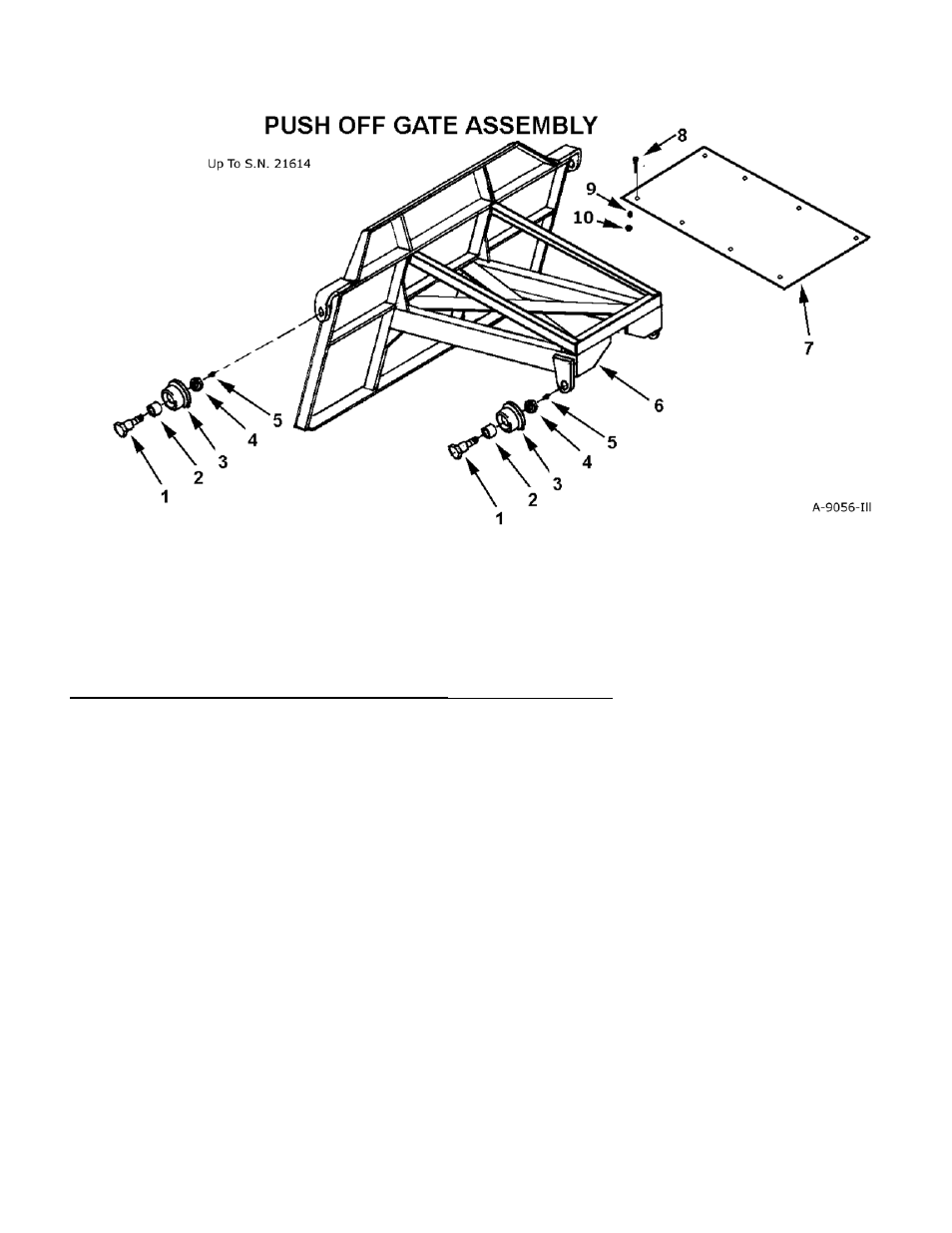

Ashland I-900 Ver 1-2007 - Manual (Page 9)

KEY NO. PART NO. DESCRIPTION
1 A10008 Shoulder pin, 1-5/8” to 1-1/4” with zerk in threaded end
2 A10162 Bushing, 2” OD x 1-5/8” ID x 1-1/2”
(No bushing with Roller A123306)
3 A123306 Roller, gate rear with flange type (for models made after
Jan 1, 2000; sn 20219 and
above)
4 AFN-00024 Jam nut, 1-1/4” NF
5 14505 Grease fitting, 1/8” NPT straight
6 A9056 Push off gate
7 A9058 Dirt shield
8 AFB-00015 Bolt, 1/2” NC x 1-1/2”
9 8100 Lockwasher, 1-2”
10 AFN-00011 Nut, 1-2” NC
11. AHF-00028 Grease Fitting: 1/8” NPT -90 degree
12. A6007A Pin: 1-1/4” x 4-1/8” Lg.
13. AFP-00001 Cotter Pin: 1/4 X 3-1/2”
14. A10163 Bushing: 1-3/4” OD x 1-1/4” ID
15. A10164 Roller: 4-1/4 OD X 1-3/4 ID
16. A123323 Pin: 1-1/4 X 4 1/8” Tab Head
17. A10163 Bushing: 1-3/4” OD x 1-1/4” ID
