Ashland I-900 Ver 1-2007 - Manual (Page 14)

1

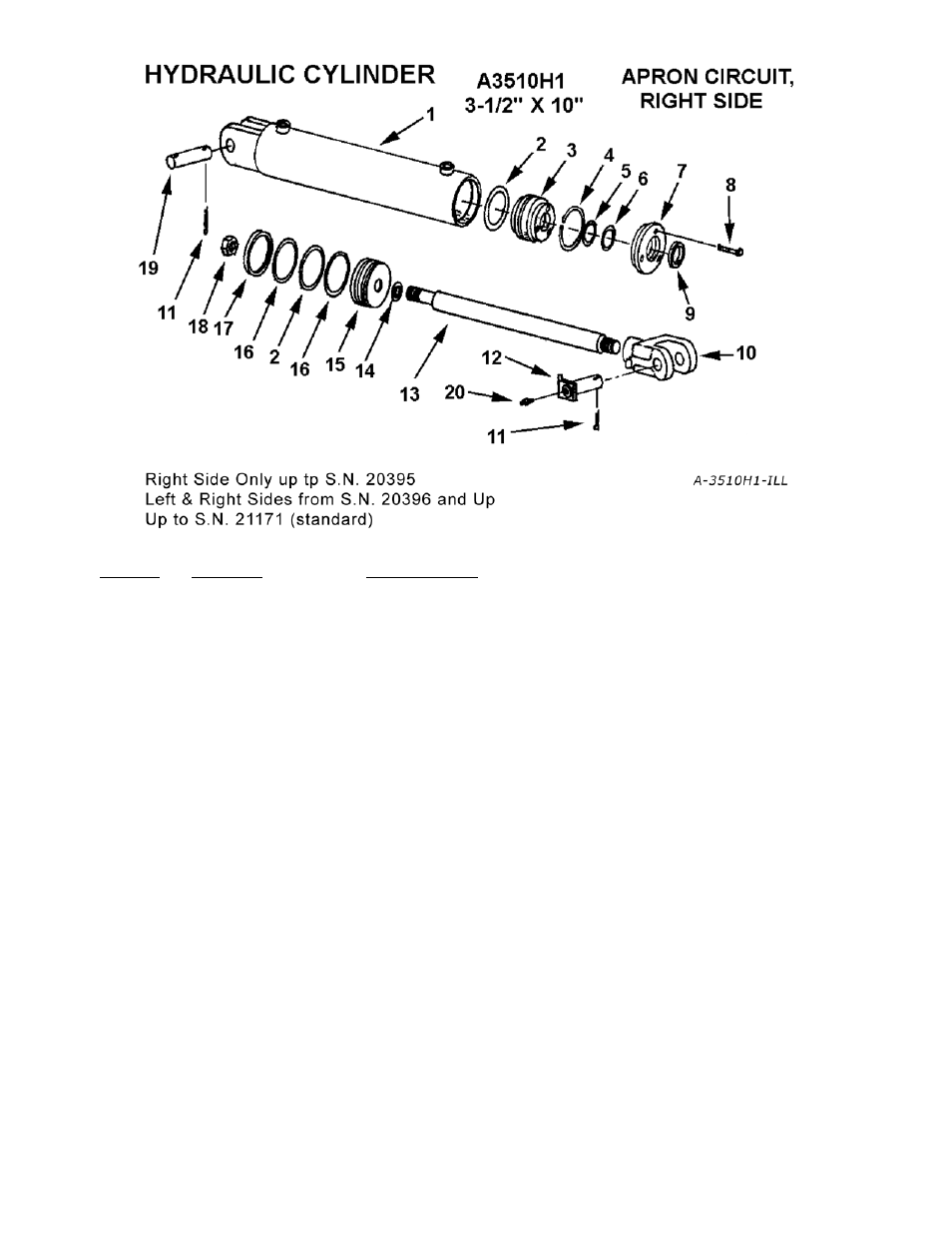

KEY NO. PART NO. DESCRIPTION
1 A12H04 Barrel
2 A22H08 O-ring, 3-1/2” OD
3 A22H13 Head gland
4 A22H14 Retainer ring
6 A400H12B Seal 2” ID
7 A22H16 Head cap
8 A22H18 Socket head capscrew, 1/4 x 1”
9 A22H17 Wiper seal, 1-1/2” ID
10 A12H03 Clevis end
11 AFP-00003 Cotter pin, 3/16” x 1-1/2”
12 A10167 Pin, 1” x 3-9/16”
13 A12H02 Shaft, 1-1/2” diameter
14 A22H10 Piston gasket, 3/4” ID
15 A22H09 Piston
16 A22H07 Back up washer, 3-1/2” OD
17 A22H06 Piston ring, 3-1/2” x 3/16”
18 A22H05 Piston nut, 3/4” NF
19 A1217 Pin, 1” x 3-1/2”
20 14505 Grease fitting
A22H19B Packing kit containing:
1 - A22H06 2 - A22H07 2 - A22H08
1 - A22H10 1 - A22H14 1 - A22H15
1 - A22H15A 1 - A22H17
Serial Numbers 21172 and up require 2 AHA-00048 Adapters
