1

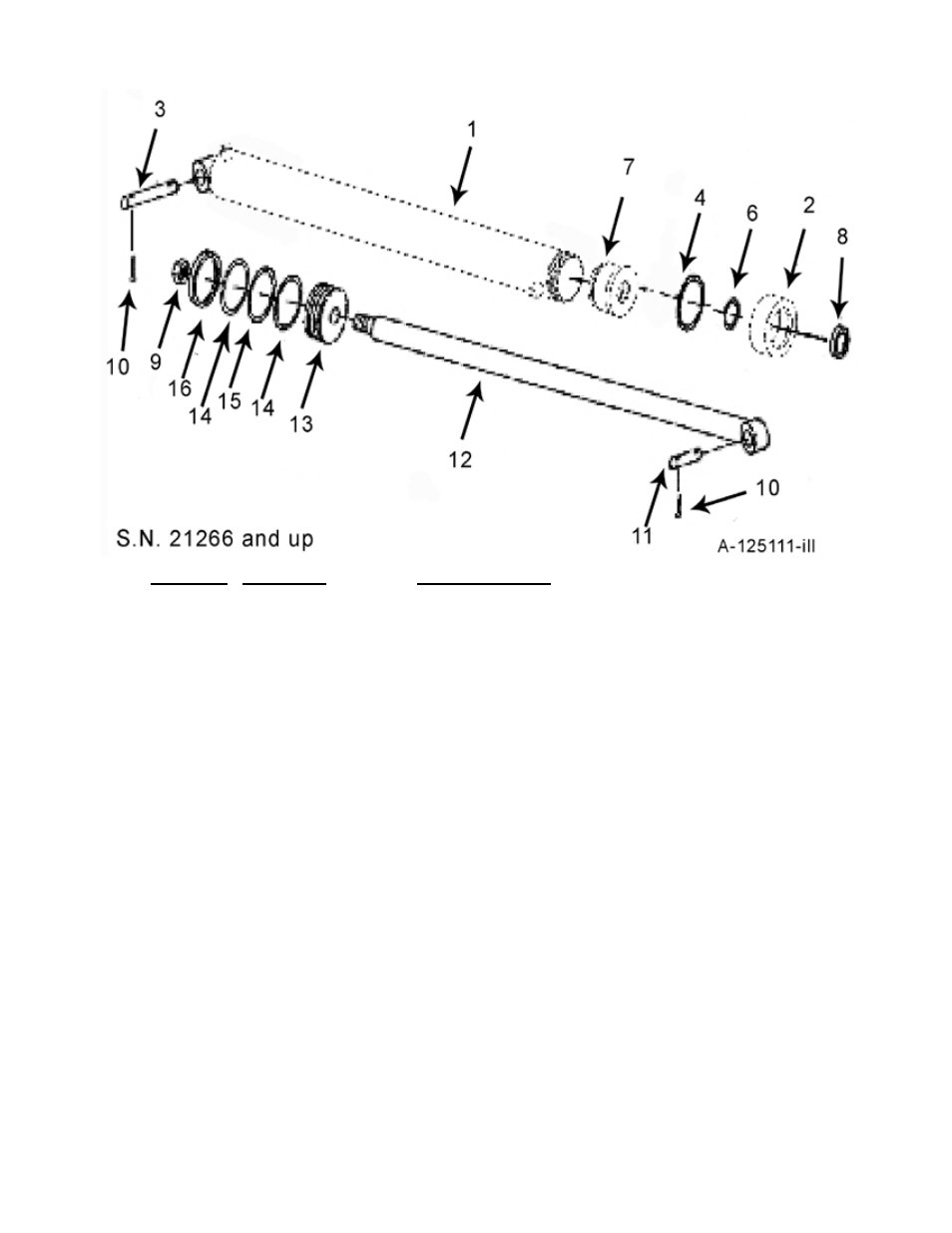

KEY NO. PART NO. DESCRIPTION
1 A123424 Barrel Assembly
2 A123426 Gland Cap
3 A8062 Pin, 1-1/4” X 7”
4 A80H24 O-ring, 4” OD x 1/8”
5 A400H12 O-ring, 2” ID
6 A400H12A Backup washer
7 A123425 Head gland
8 A80H06 Wiper seal, 2” ID
9 A400H17 Piston nut, 1-1/4” NF
10 8602 Cotter pin, 1/4” x 2”
11 A8061 Pin, 1-1/4” x 4-3/4”
12 A90H26 Rod assembly
13 A80H27 Piston
14 A300H05 Backup washer, 4” OD
15 A300H06 O-ring, 4” OD x 3/16”
16 A300H04 Cast iron ring, 4” OD
A80H30 Packing kit containing:
1 - A80H24 2 - A300H05 1 - A400H12
1 - A300H06 1 - A400H12A 1 - A300H04
1 - A80H06
Hydraulic Cylinder - Pushgate Circuit ” x 0”
