MODEL I-180
LIFT CYLINDER 5 1/2 X 20
PART NO. A125044
*** Dealer Note ***
***Dealer Note***
Some 00 models used a ” x 0” Lift cylinders in lieu of this cylinder. To enusre
correct parts shipment, carefully examine the cylinder for size.
-/” x 0” ” x 0” (p.n. A)
Barrel Circumference -/” -/”
Barrel Diameter ” -/”

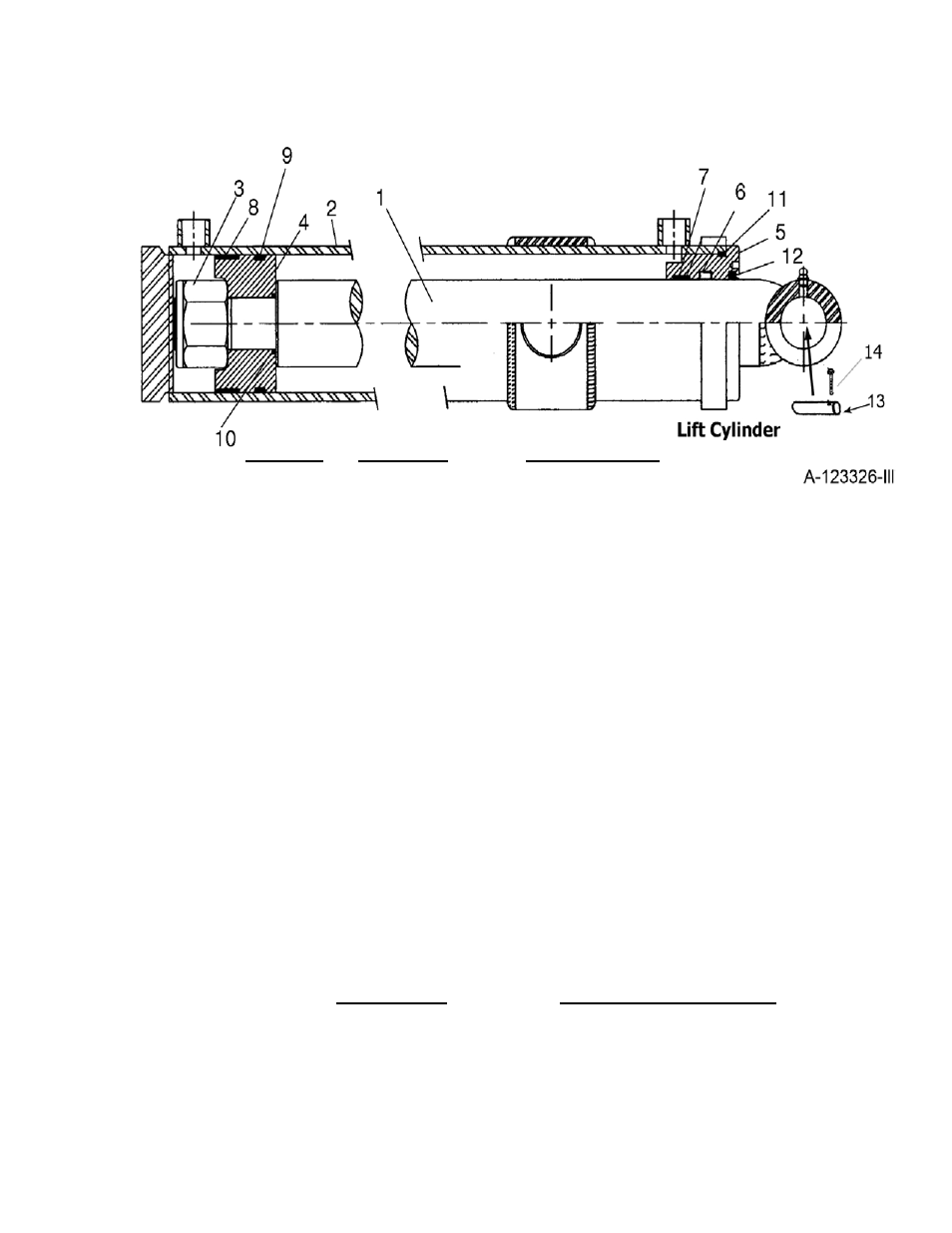

KEY NO. PART NO. DESCRIPTION
1. A123326-1 Piston Rod: 2-1/2”
2. A125044-02 Barrel Weldment, 5-1/2”
3. A125159-34 1-3/4 NF Locknut
4. A125044-04 Piston, 5-1/2”
5. A125044-05 Gland, 5-1/2”
6. A123324-6 Rod Seal
7. A123324-3 Wear Band ID for Gland
8. A125044-10 Wear Ring, 5-1/2”
9. A125044-15 Piston Seal, 5-1/2”
10. A123324-10 O-Ring, ID of Piston
11. A125044-20 O-Ring, OD of Gland
12. A123324-7 Rod Wiper
A125044-40 Seal Kit (Items 6-12)
13. A123335 Pin, 2” x 10-1/2” lg.
14. AFP-00001 Cotter Pin, 1-4” x 3”
