IMPORTANT: This is the new style Apron Cylinder. The old style has rein-
forcement strap on the outside of the barrel near the rod end, the new style
does not. New style was integrated into production Sept. 2003, sn 20808 and
above.
ITEM QTY PART NUMBER DESCRIPTION
1a 1 A125065-1a O-RING (-248)
1b 1 A125065-1b B/U RING 5” OD X 1-8” C.S. (-248)
2 1 A125065-2 ROD SEAL U-CUP
3 1 AHS-00096 WIPER SEAL
4 1 A125065-4 WEAR RING
5 1 A123324-9 PISTON SEAL = PSP TYPE
6 1 A125065-6 WEAR RING
8 1 A125065-01 BARREL
9 1 A125065-02 HEAD
10 1 AFN-00018 LOCK NUT
11 1 A125065-04 ROD
12 1 A125065-03 PISTON
13 1 A125065-05 SEAL KIT, INCLUDES ITEMS 1 - 7
15 2 A123322-09 Pin: Apron cylinder barrel end

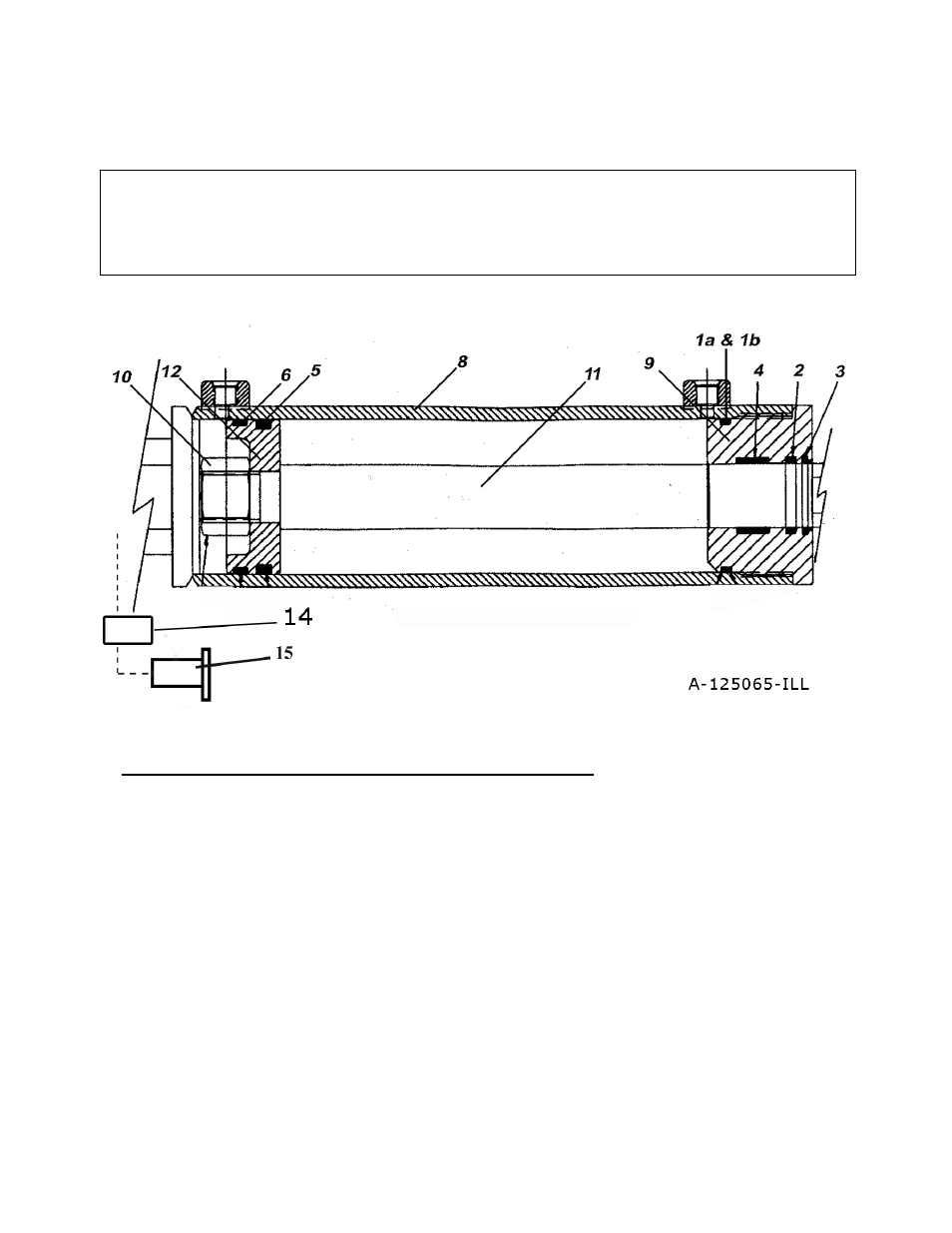

APRON CYLINDER I-180TS2
PART NO. A125065
NEW STYLE
