Ashland I-180TS2 - Manual (Page 14)

ITEM QTY PART NUMBER DESCRIPTION
1 1 A123323 Push Gate Assembly
2 2 A125023 Grease line, outside floor roller 48”
3 4 A123323-21 Pin: 1-1/4” x 4-1/8” long
4 4 AFP-00001 Cotter Pin: 1/4” x 3
5 4 A10163 Bushing: 1-3/4” O.D. x 1-1/4” I.D.
6 2 A10164 Roller
7 4 AFW-00015 Washer
8 2 A123459 V-Roller
9 1 AFB-00103 1 x 12 Bolt
10 2 AFW-00019 Wedge Washer
11 1 A123323-48 Wedge Spacer
12 12 AFN-00023 JamNut: 3/4” NF
13 12 AFB-00060 Bolt: 3/4” NF x 2” long
14 4 A123364-08 Plastic slide
15 1 A123364 Slide Guide Box
16 2 A123323-36 Top Support
17 2 A123323-35 Bottom Support
18 2 A125022 Grease line, v-roller 18”
19 4 A125026 Bulk Head Nut
20 8 6684 5/8 x 2 NC gr. 8 Bolts
21 8 7530 5/8 NC gr. 8 Nuts
22 8 8110 5/8 Lock Washer
23 1 AFN-00001 NF Nut Lock 1” NF
24 2 A6007A Pin 1-1/4 x 4-1/8 LG
25 2 Bolt: 1-1/4 NF x 5”
26 4 Bolt: 1-1/4 NF x 4”
27 6 AFN-00009 Nut: 1-1/4 - 12 NF - Top Lock
28 2 123364-3 Shim Plate
S.N. And Up

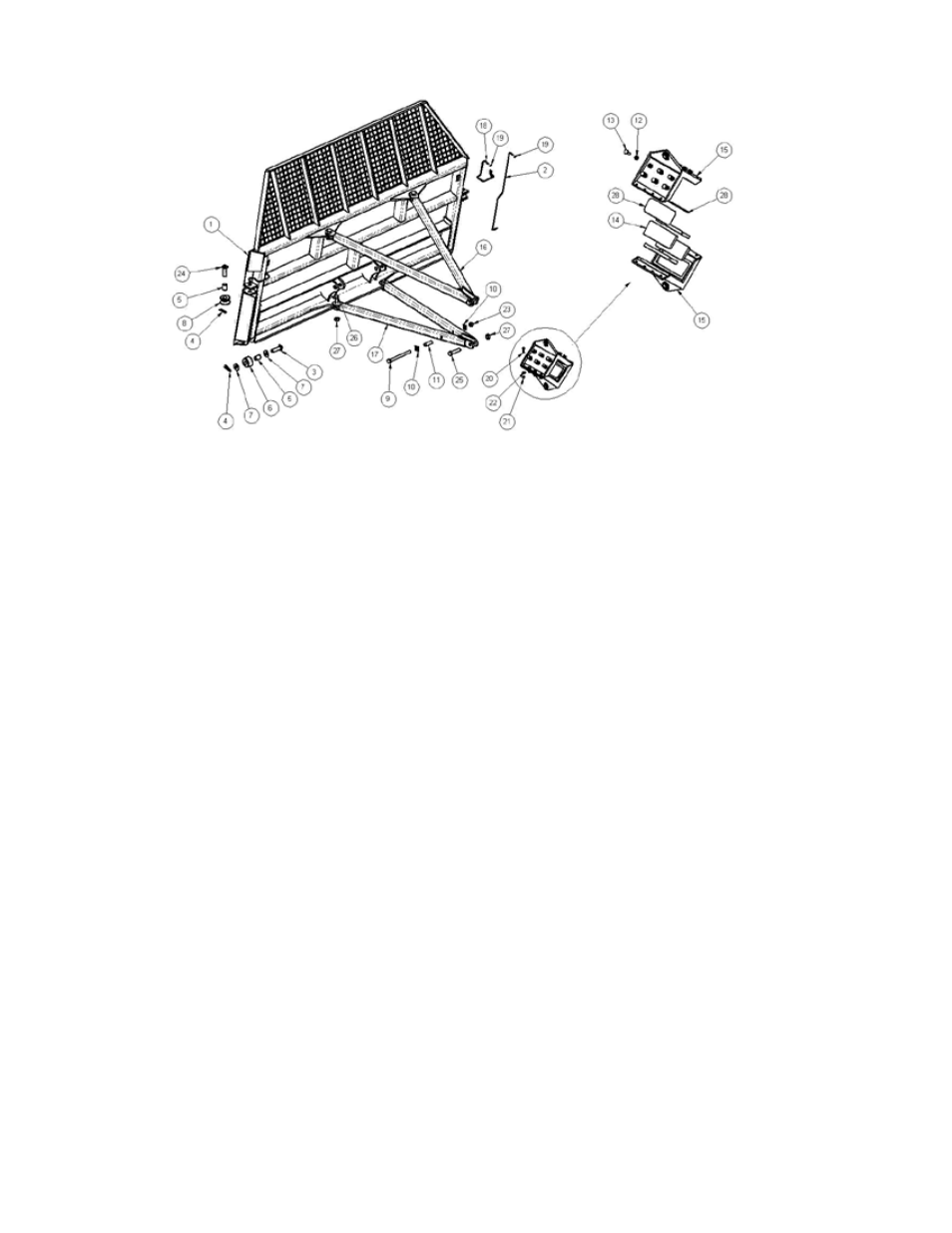

Push-off Assembly
