KEY PART DESCRIPTION
A125178 Pushoff Cylinder (4” x 60”)
1 A123360-01 Barrel
2 A123360-02 Rod
3 A123360-03 Piston
4 A123360-04 Head Gland
5 A123360-05 Lock Nut
6 A123360-07 Spacer Sleeve
7 A123323-38 Rod End Pin, 5-1/16 x 1-1/2
8 600157 Barrel End Pin, 1-1/2 x 4-1/8 L
9 AFP-00001 1/4 x 3 Cotter Pin
10 A125178-35 Bushing
11 A125178-36 Snap Ring
12 14505 Grease Fitting 1/8 NPT St
13 AFB-00128 1/2 x 1 Gr. 5 Bolt
- A123360-16 Seal Kit (Items a-h)
a - Piston Seal
b - Wear Ring
c - O-Ring
d - Wear Ring
e - Rod Seal
f - Wiper
g - O-Ring
h - Back-up Ring

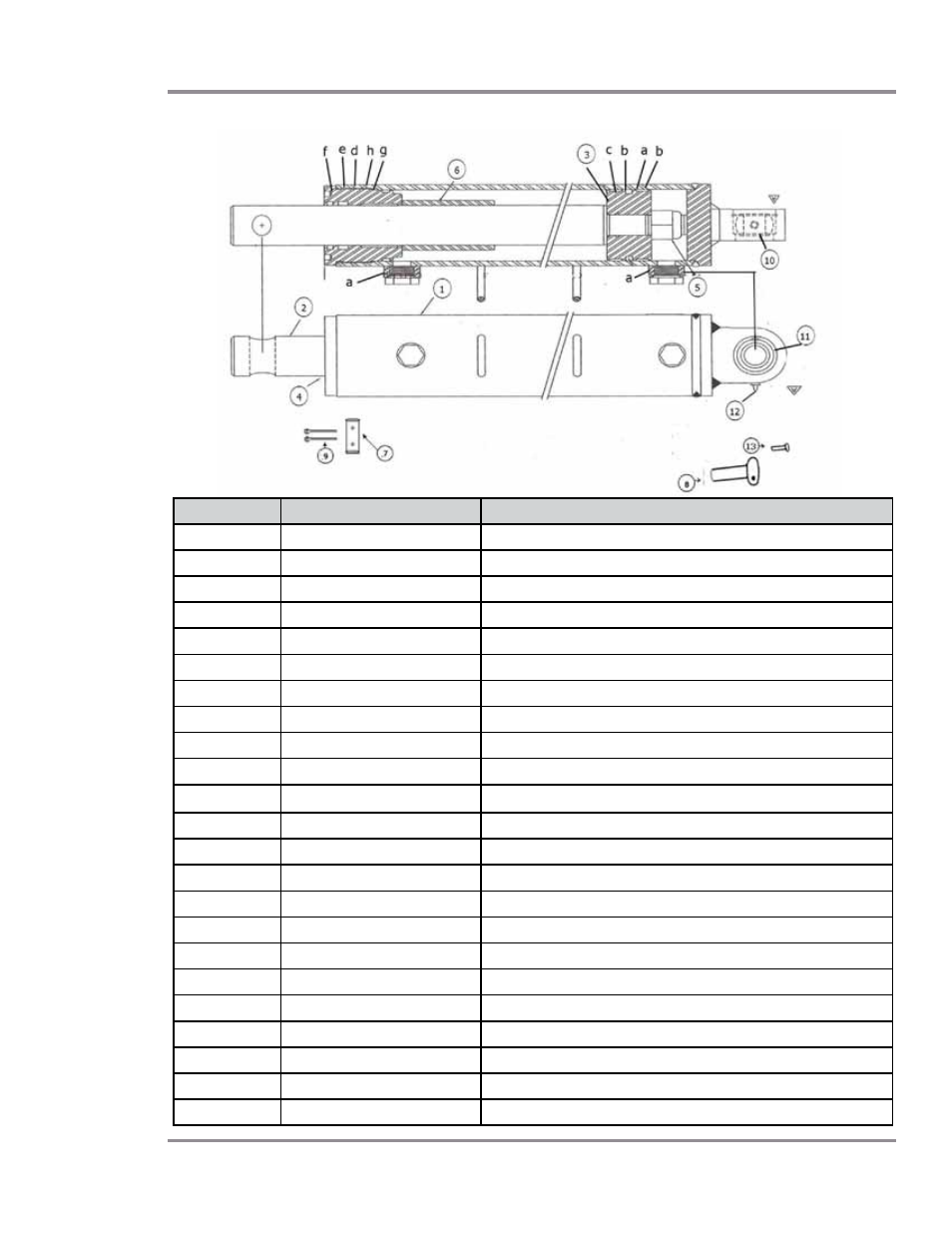

Pushoff Cylinder
