25
Connecting to the N-111
Use a Windows PC or similar computer connected to an Ethernet network. Connect the
N-111 to the same network. Ensure that the network is one where the IP address of the
N-111 (Default address is 192.168.10.11) is legal and not already in use.
You will need to use a browser program such as Internet Explorer with cookie
functionality enabled to connect to the N-111.

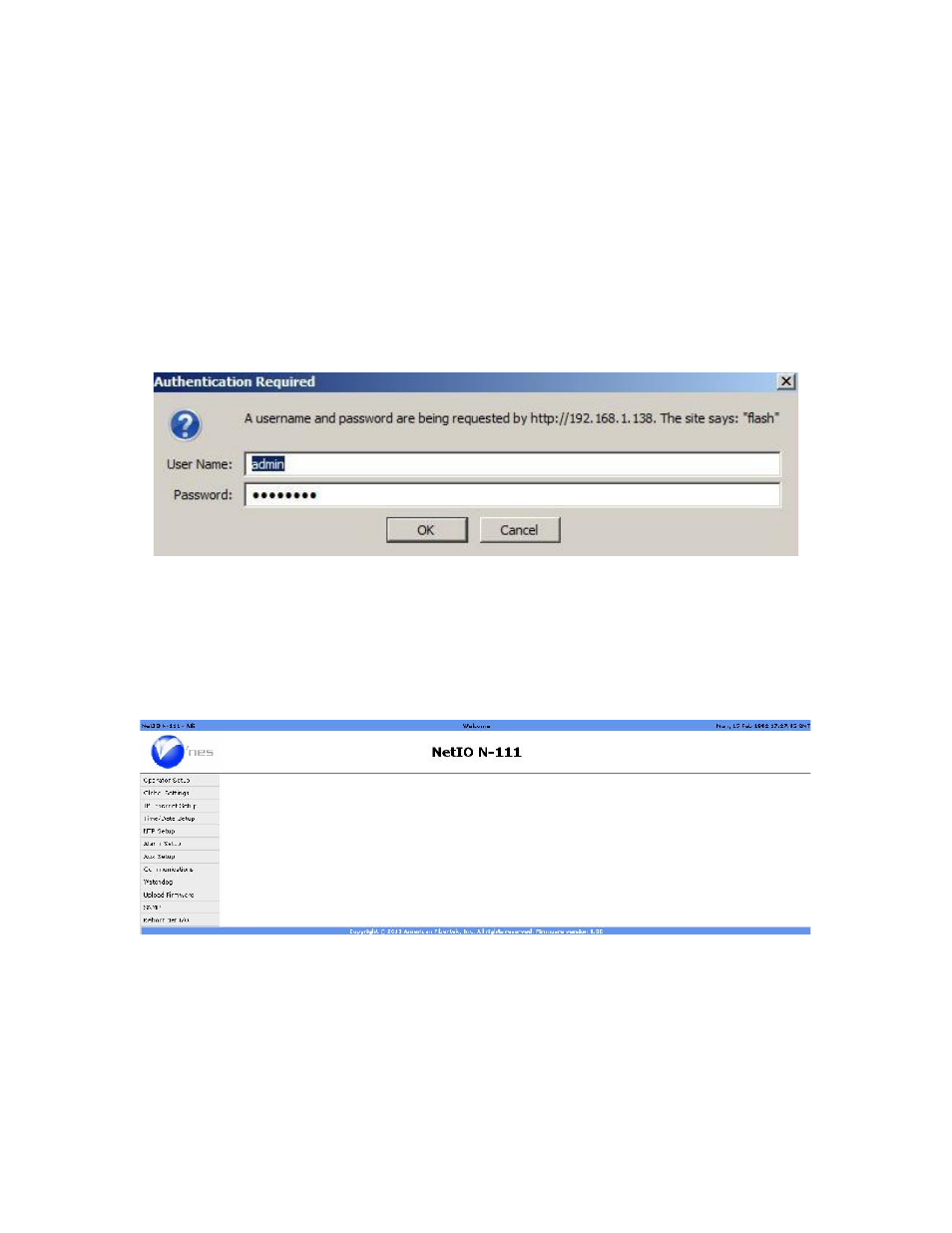

Type 192.168.10.11 in to the Address bar of your browser window and then press Enter.
(If you have changed the IP address of the N-111, you will need to type that address in
instead.) You should see a prompt for a User Name and Password to access the unit.
[note – need to fix this to have the right address and username/password]
The default User Name and Password are “Admin” and “Password” respectively. It is
strongly recommended that you change these when you first install and set up your unit.
Interface layout
The N-111 web interface screens use a common design in which the screen is divided
into three sections. Across the top of the screen is a title bar which contains the user-
settable device name and device location strings, and the current time and date setting.
Down the left side of each screen is a menu used to access the configuration sub-pages.
Clicking on one of the selections in that menu will bring up that configuration sub-page.
The name of currently selected sub-page will be indicated in bold.
