Apple Mac G4 (Optical Drive Replacement) User Manual
Page 7
Power Mac G4 Optical Drive -
7
4.
Slide the back panel off the carrier.

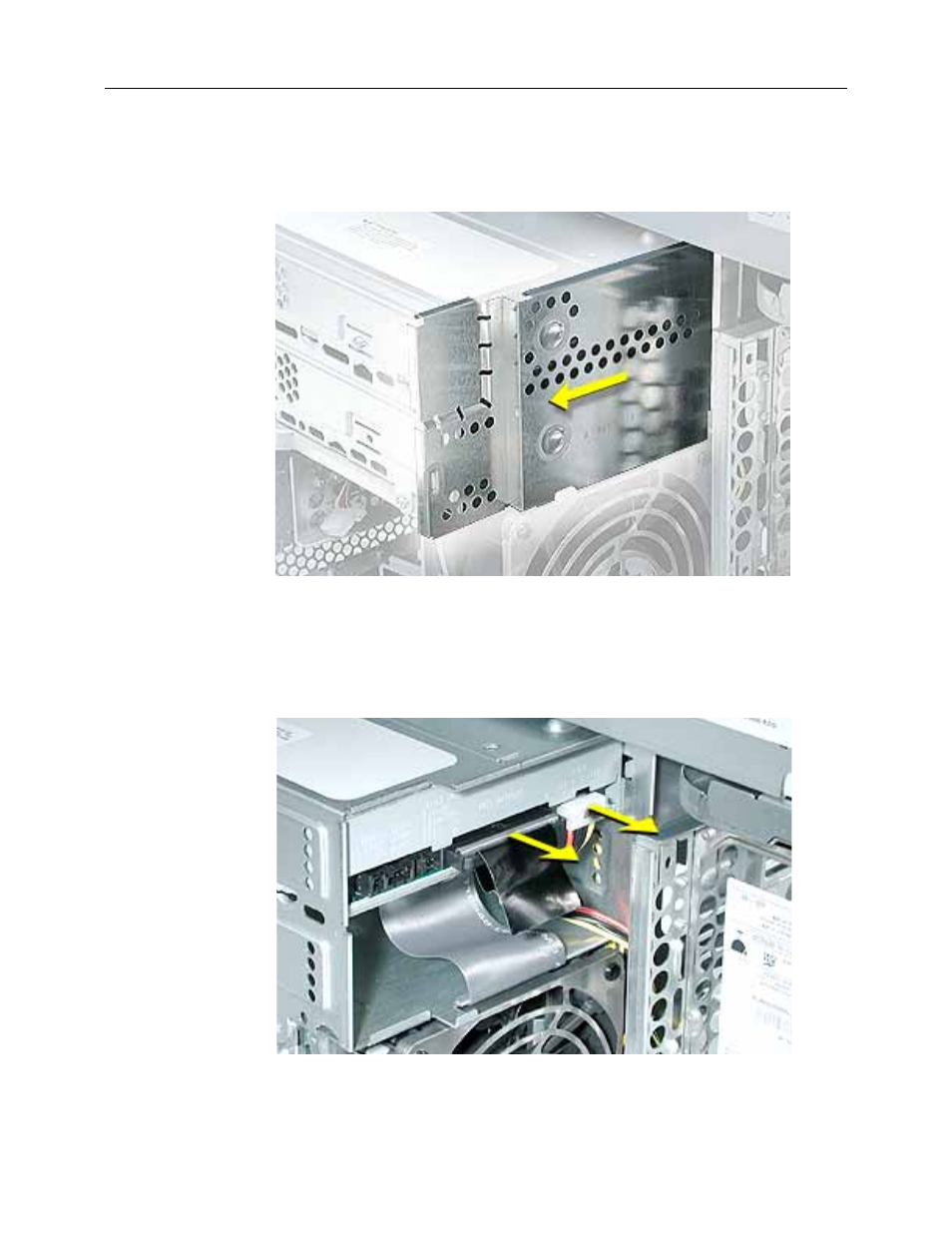

(Figure 9)
Figure 9
5.
Slide the carrier back and rotate it so that you can reach the drive cables.
6.
Disconnect the drive data and power cables (P6 and P7) from the back of the optical
drive(s) and remove the carrier from the computer.
(Figure 10)
Figure 10
