Ag-Bag MB7010HyPac User Manual
Page 62
S
ETUP
AND
O
PERATING
P
ROCEDURES
12
Ag-Bag International, Ltd.
MB7010 HyPac November 2003
Section 4
S
IGHT
G
AUGE
L
OCATIONS

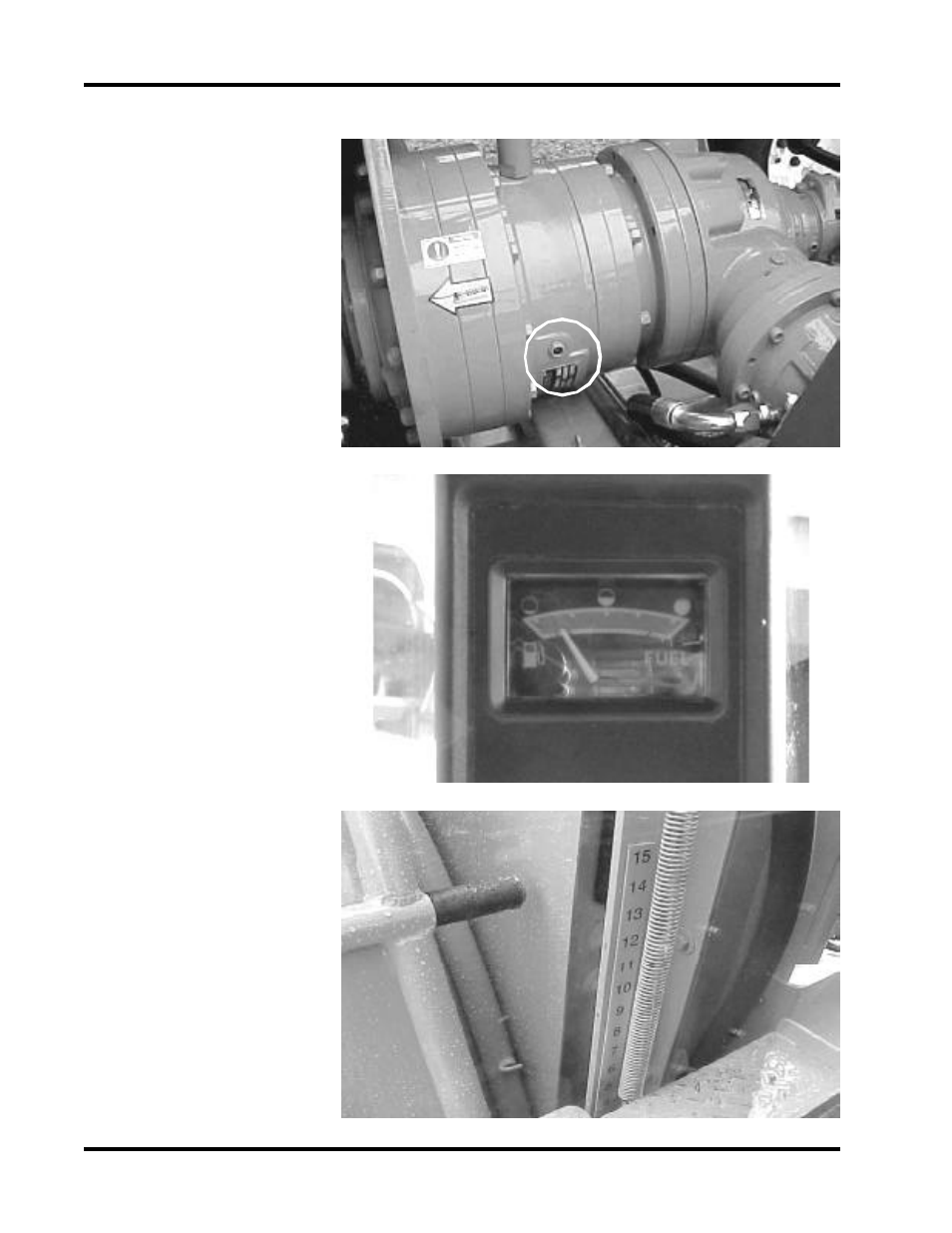

Anchor Cable Gauge
Viewable only from inside the
operator’s cab the gauge is lo-
cated to the left of the Hydraulic
Tank Sight Gauge. The gauge
measures in feet the amount of
anchor cable that has been re-
leased into the bag.
Planetary Sight Gauge
Located on the front side of the
Ag-Bagger
®
below the engine
compartment. This gauge indi-
cates the level of fluid in the plan-
etary. Use only liquid recom-
mended in the Service and Main-
tenance section of this manual.
Fuel Gauge
Located inside the operator’s
cab, on the right hand cab frame,
the gauge indicates fuel tank
level. Refer to the Service and
Maintenance section of this
manual for specifications.
