S
ETUP AND
O
PERATING
P
ROCEDURES
4 Ag-Bag International, Ltd.
MB7010 HyPac November 2003
Section 4
O
PERATOR
’
S
P
LATFORM
P
OSITIONING
Operator’s Platform - Bagging
Position

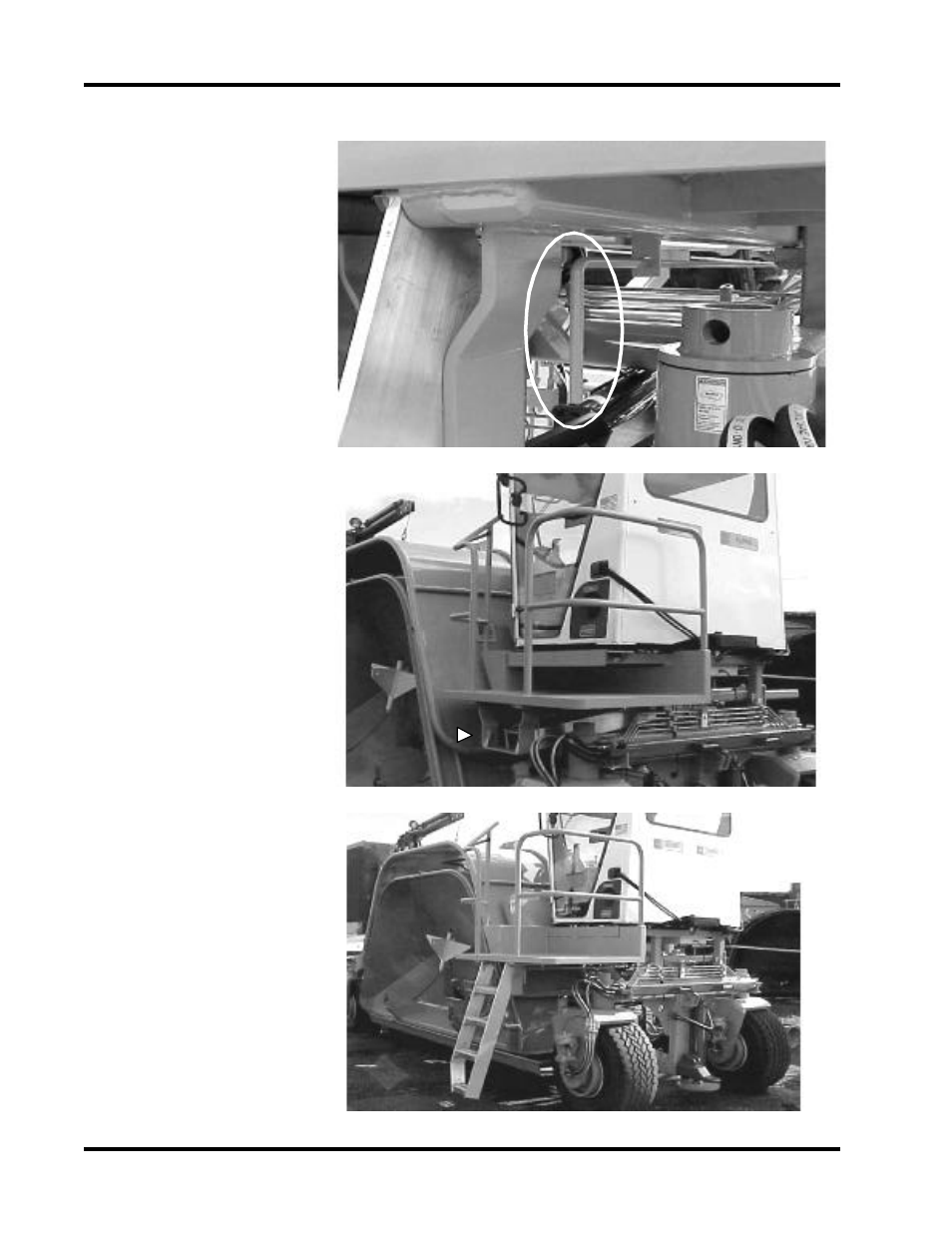

Operator’s Platform Release
Rod.
This rod is used when moving the
Operator’s Platform from trans-
port to operating positions. By
pulling the rod the platform is re-
leased and will move in and out
to the desired position.
Operator’s Platform - Trans-
port Position
This illustration shows the
Operator’s Platform in the trans-
port/storage position, also note
that the access ladder is placed
under the platform in it’s storage
area.
This illustration shows the
Operator’s Platform pulled out
into the bagging position. The
access ladder has also been
pulled out of the storage area.
