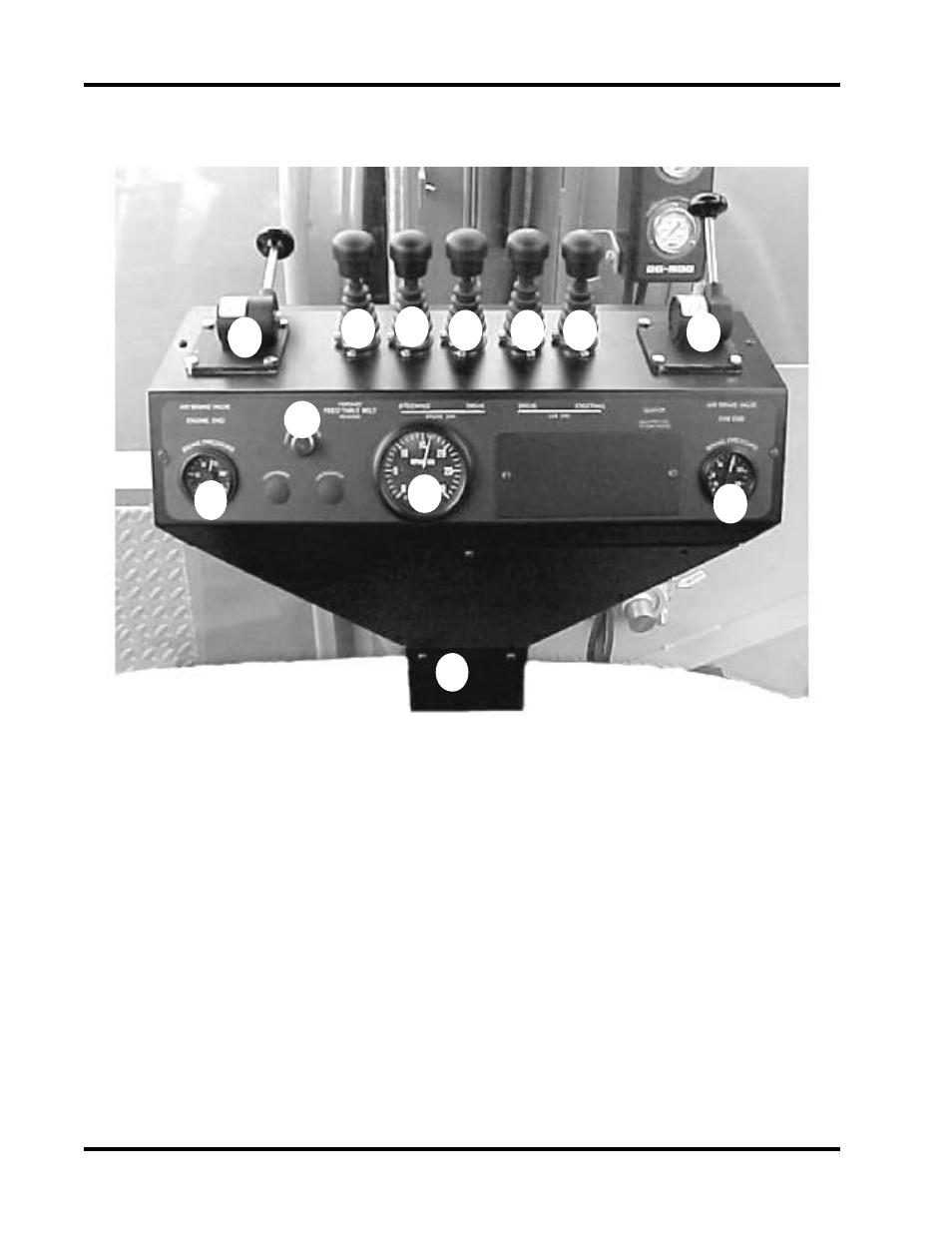

1. Air Brake Control - Engine
End: Regulates the brake pres-
sure on the cab end of the Ag-
Bagger

2. Feed Table Speed Control:
Forward moves the belt/feed to-
wards the rotor. Back moves the
belt/feed away from the rotor.

3. Steering - Engine End: Move
the handle to turn the wheel po-
sition. Use the mirror to observe

white arrows for wheel position.

4. Wheel Drive - Engine End:
Controls the speed and rotation
of the wheels on the engine end
of the Ag-Bagger

5. Wheel Drive - Cab End: Con-
trols the speed and rotation of the
wheel on the cab end of the Ag-
Bagger

6. Steering - Cab End: Move the
handle to turn the wheel position.
Observe the wheel position out

side of cab.

7. Air Brake Control - Cab End:
Regulates the brake pressure on
the cab end of the Ag-Bagger

8. Air Brake Gauge - Cab End:
The white indicator needle is the
cab end operating pressure.
