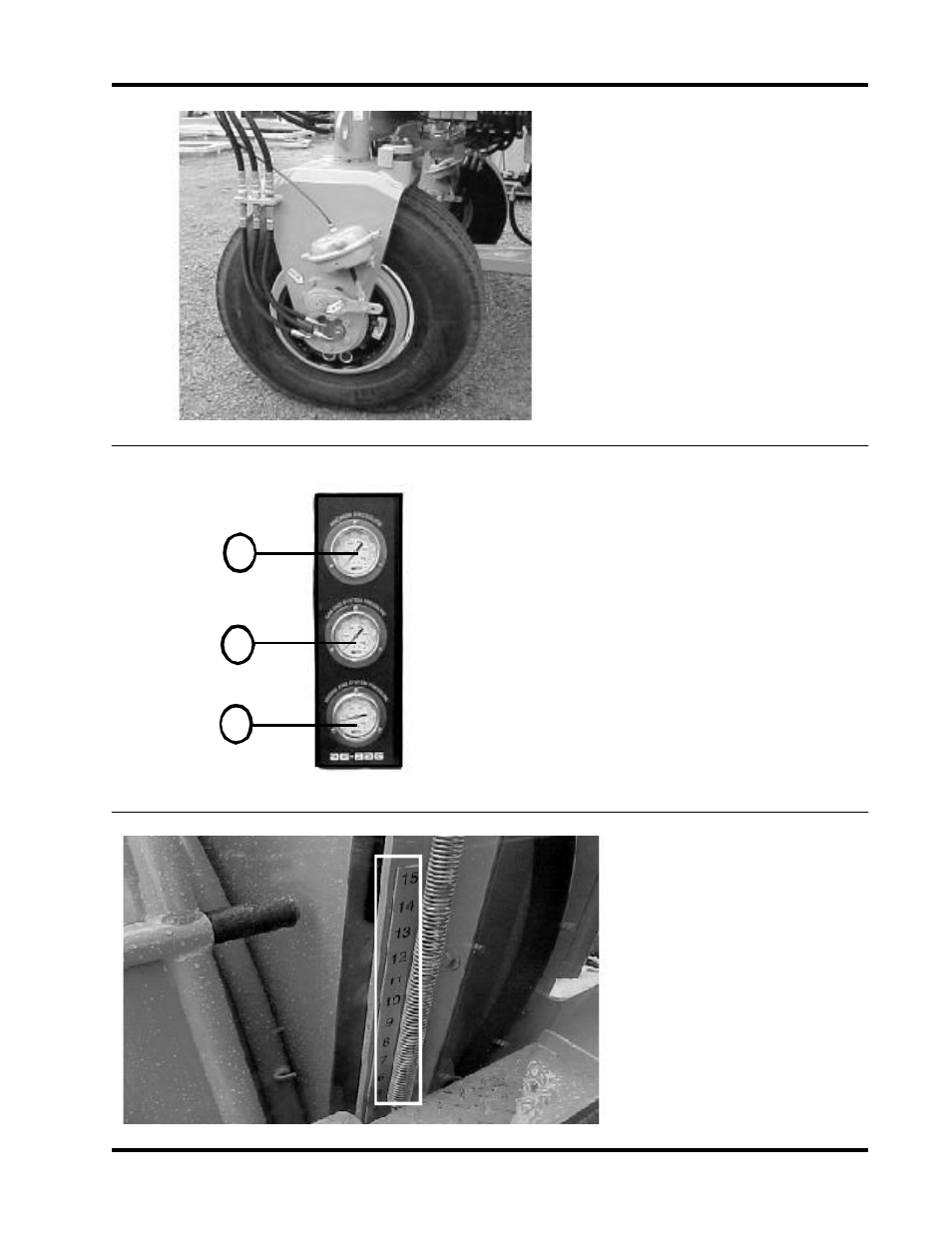

Hydraulic Pressure Gauges
Located to the left of the
operator’s counsel, outside the
cab, these gauges are used to
monitor hydraulic pressure as
follows
1. Anchor Pressure
2. System Pressure - Cab End
3. System Pressure - Engine
End
Standards
Hydraulic Wheel Drive
Your Ag-Bagger ® is equipped
with four wheel drive. Each
wheel is driven by separate wheel
drive units.
Standard
Cable Feed Out Guide
Located to the left of the Hydrau-
lic Pressure Gauges this indi-
cated the total feet of cable that
has been fed out while bagging.
The indicator is in feet.
Standard
1
2
3
