ETUP

AND

PERATING

ROCEDURES

Ag-Bag International, Ltd.

MB7010 HyPac November 2003

Section 4

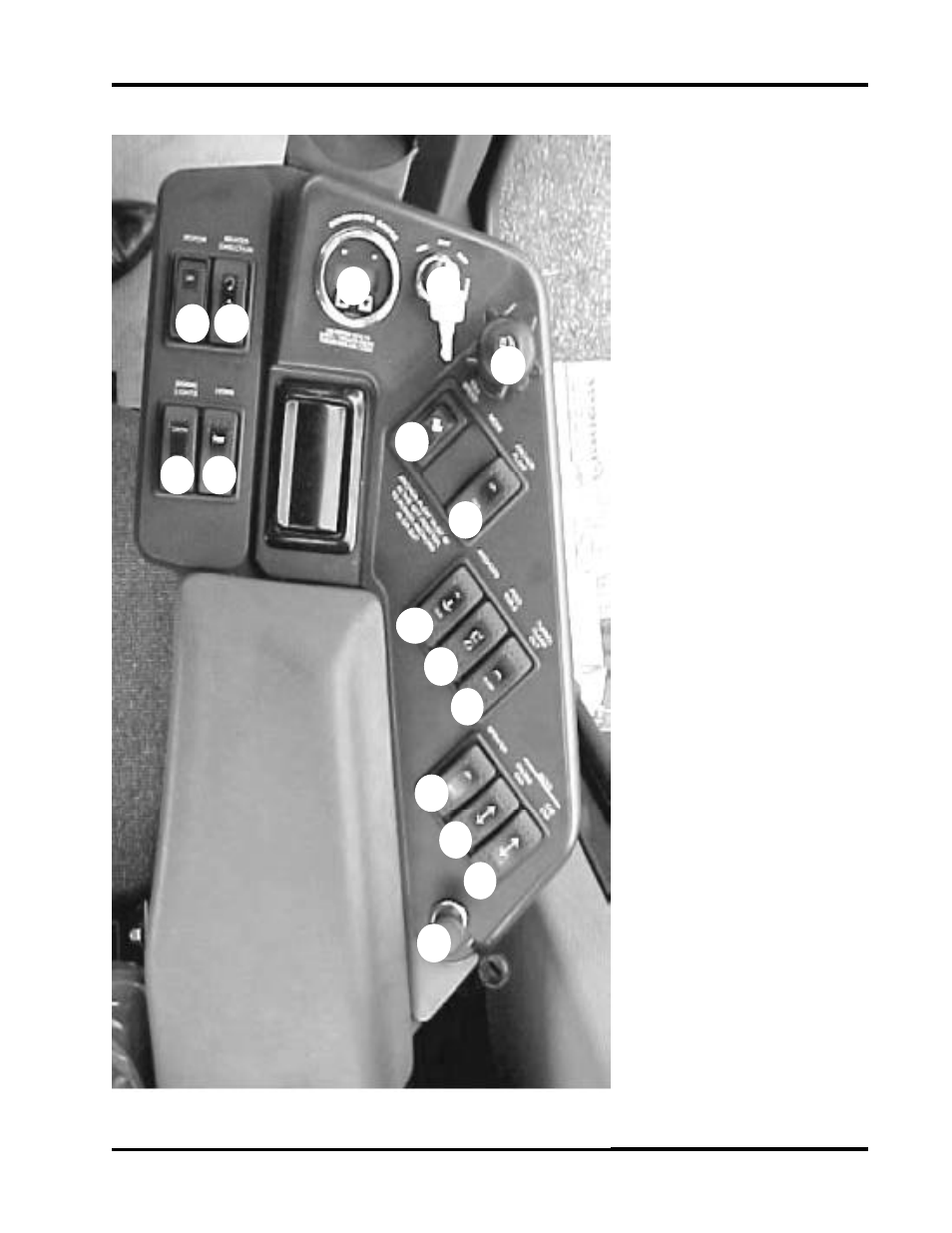

The Arm Rest console keeps the
bagging operation of your Ag-
Bagger

at your finger tips. The

electric over hydraulics keep the
hydraulics out of the cab.

EST

ONTROLS

1. Signal Lights Switch: Press
the top of the switch to illuminate
the green light. Press the bottom
of the switch to illuminate the red
light.

2. Horn Switch: Press and hold
top to sound horn.

3. Rotor Control: Press top of
switch to start rotor and lower
beater bar. Press bottom of
switch to stop them.

4. Beater Bar Switch: Press
top of switch for counterclock-
wise rotation. Press bottom of
switch for clockwise rotation.
Center position of switch will stop
rotation. Controls upper beater
bar only.

5. Diagnostic Gauge: Allows the
operator to view many readouts
of engine functions and trouble
codes. Refer to the your engine
operator’s manual for explana-
tion of these codes.

6. Ignition Switch: The four po-
sition key switch controls the
electrical system. Use this
switch to start and stop engine.

7. Idle Control Switch: Turn
knob clockwise to increase idle
and counter clockwise to de-
crease. Use bottom knob to lock
idle at desired speed.
