MODELS 2230 and 2240 STEP 8

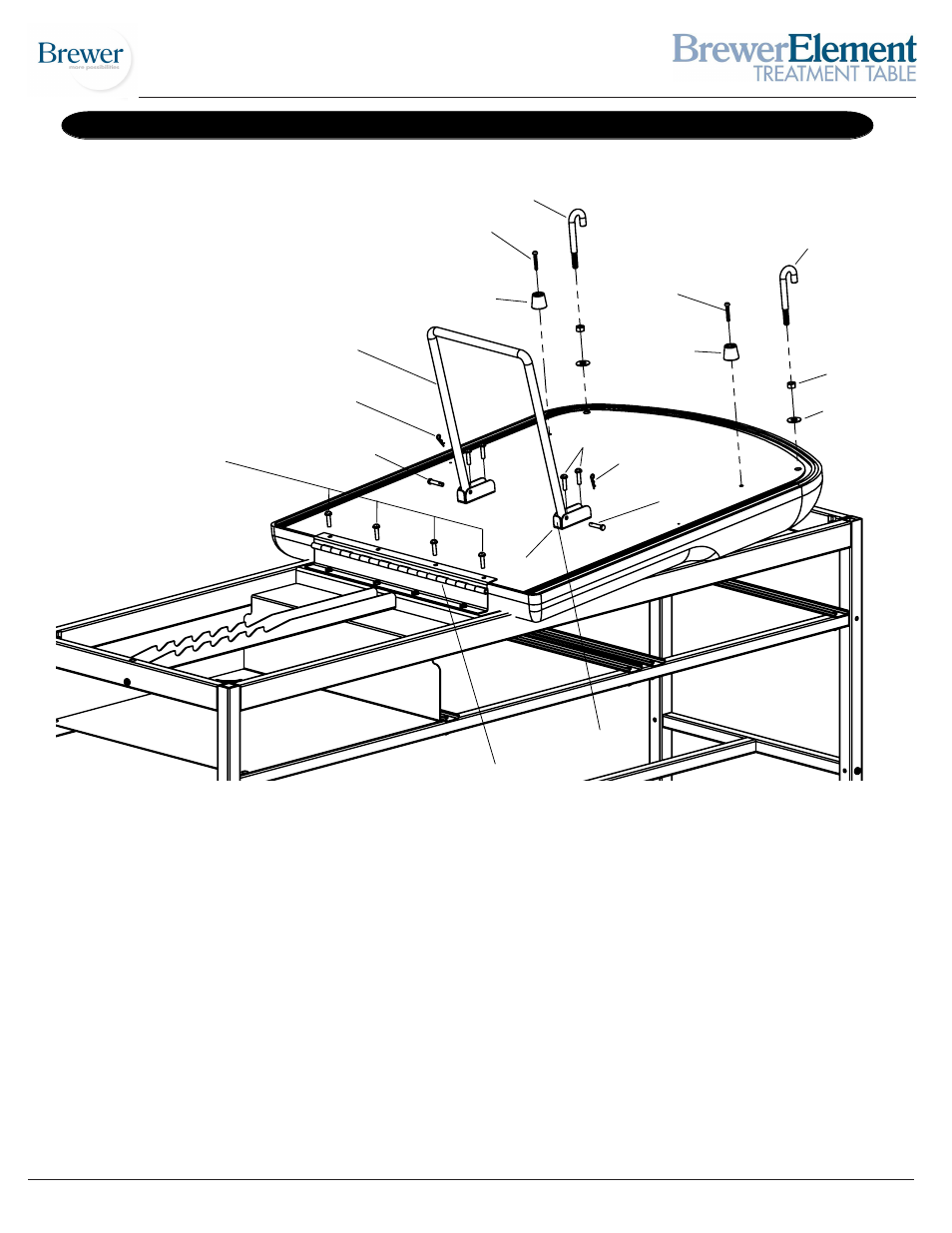

STEP A: Lay upholstered backrest on Foot End of frame as shown.
STEP B: Slide backrest down until it bumps up against Hinge.
STEP C: Insert the four backrest-to-hinge Screws F (1/4”-20 x 1”) and tighten.
STEP D: Insert Screws F (1/4”-20 x 1”) through Clevises and tighten. Note Clevis Tab orientation.
STEP E: Install Backrest Support with Clevis Pins and Cotter Pins.
STEP F: Insert Screws D (10-24 x 1 1/4”) through Bumpers and tighten.
STEP G: Thread Nut L (3/8”) completely onto J-Bolt R. Place Washer M onto J-Bolt and thread into backrest
as shown. Position J-Bolt toward head end of table as shown and tighten nut against backrest.
Screw F
Nut L
Washer M
Foot End
Screw D
Screw D
J-Bolt R
J-Bolt R
Clevis Pin
Clevis Pin
Cotter Pin
Screw F
Clevis
Hinge
Clevis Tab
Bumper
Bumper
Backrest Support
Cotter Pin
