1. TRACK (Current track indicator)
2. MINUTES INDICATORS (Displays current minutes)
3. SECONDS INDICATORS (Displays current seconds)
4. FRAME INDICATORS (Displays current frame)
5. BAR (Bar Indicator)
6. ELAPSED (Elapsed time Indicator)
7. CONTINUE INDICATOR
8. SINGLE INDICATOR
9. REMAIN INDICATOR
10. PITCH PERCENTAGE
American DJ
®
AUDIO • DCD-PRO250™ INSTRUCTIONS MANUAL • PAGE 8
FUNCTIONS & CONTROLS CONT.

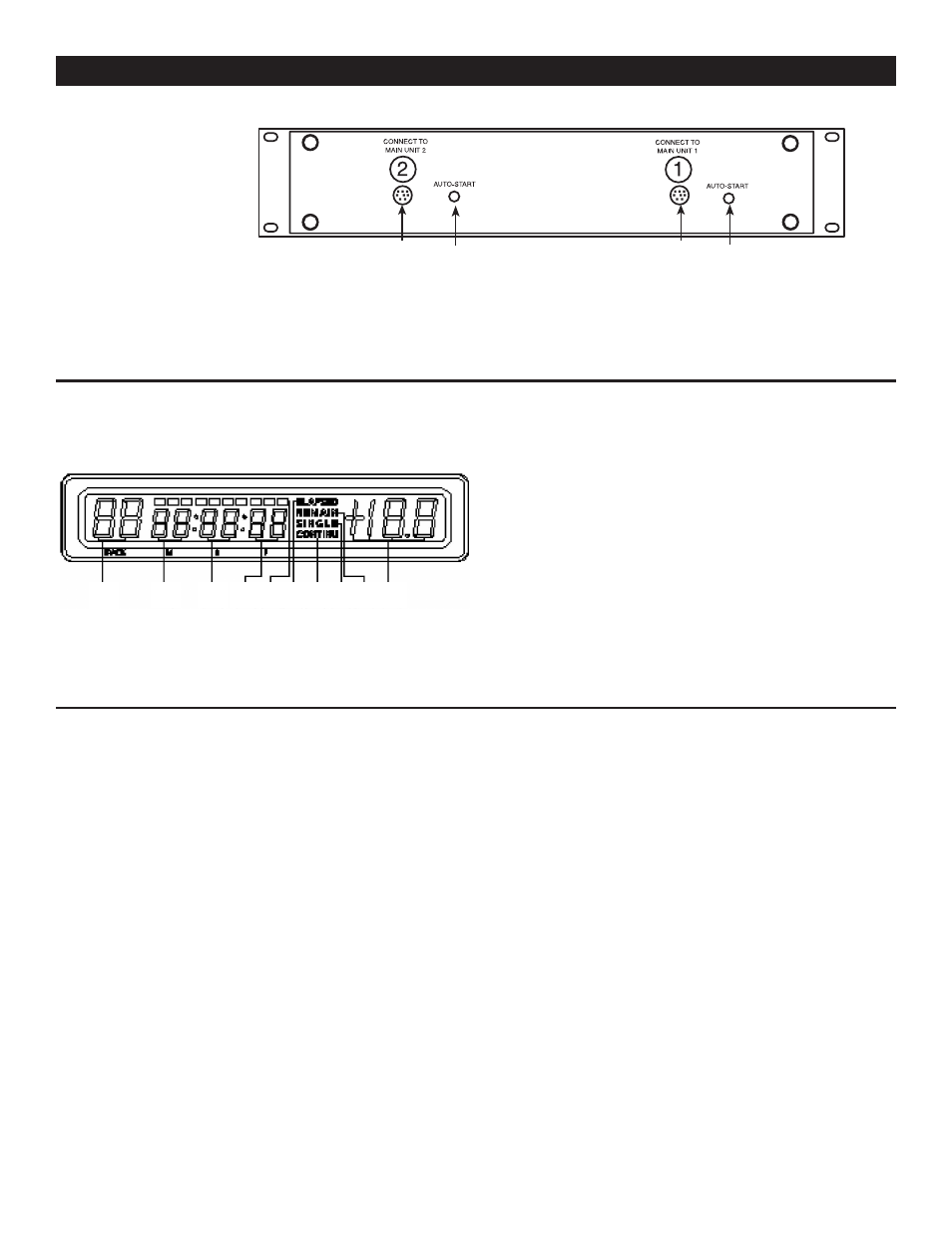

REMOTE UNIT REAR PANEL
FIGURE 4
1. PLAYER 2 REMOTE CONNECTION 3. PLAYER 1 REMOTE CONNECTION
2. PLAYER 2 CONTROL 4. PLAYER 1 CONTROL
1 3
LCD DISPLAY
FIGURE 5
A. DRIVE TRANSPORT (Figures 1 & 2)
1) POWER (Power On/Off Button) - When the
POWER Button is pressed, the power turns
on, press again to turn power off.
2) PLAYER 1 TRANSPORT TRAY- Place the
a compact discs in this tray.
3) PLAYER 1 OPEN/CLOSE BUTTON - Press it
to open and close the player one’s transport
tray. The disc holders cannot be opened
during playback, so stop playback before
pressing these buttons.
4) PLAYER 2 OPEN/CLOSE BUTTON - Press it
to open and close the player one’s transport
tray. The disc holders cannot be opened
during playback, so stop playback before
pressing these buttons.
5) PLAYER 2 TRANSPORT TRAY- Place the
a compact discs in this tray.
6) PLAYER 2 REMOTE CONTROL
CONNECTOR - Connect this connector to the
remote unit using the included control cord.
7) PLAYER 2 DIGITAL OUTPUT (RCA TYPE) -
Connect to a DAT or CDR to make almost perfect
copies of your CDs.
8) PLAYER 2 RCA LINE OUT - Player 2 audio
signal output.
9) VOLTAGE INPUT SELECTOR - This select
between an incoming voltage 115v or 220v. Be
sure the switch is in the proper position for your
area.
10) POWER CONNECTION - Plug in to a standard
wall outlet, to feed power to your unit.
11) PLAYER 1 REMOTE CONTROL
CONNECTOR - Connect this connector to the
remote unit using the included control cord.
12) PLAYER 1 DIGITAL OUTPUT (RCA TYPE) -
Connect to a DAT or CDR to make almost perfect
copies of your CDs.
13) PLAYER 1 RCA LINE OUT - Player 2 audio
signal output.
4 2
3 9 8 7 6 5 4 1 2 10
