American Audio DCD PRO 250 - Manual (Page 7)

1. POWER (Power ON/OFF Button) 4. Player 2 Open/Close Button
2. Player 1 Transport Tray. 5. Player 2 Transport Tray
3. Player 1 Open/Close Button
6. Player 2 Remote Connector 10. AC Power Connection
7. Player 2 Digital Output 11. Player 1 Remote Connector
8. Player 2 RCA Audio Output 12. Player 1 Digital Output
9. Voltage Selector Switch 13. Player 1 RCA Audio Output

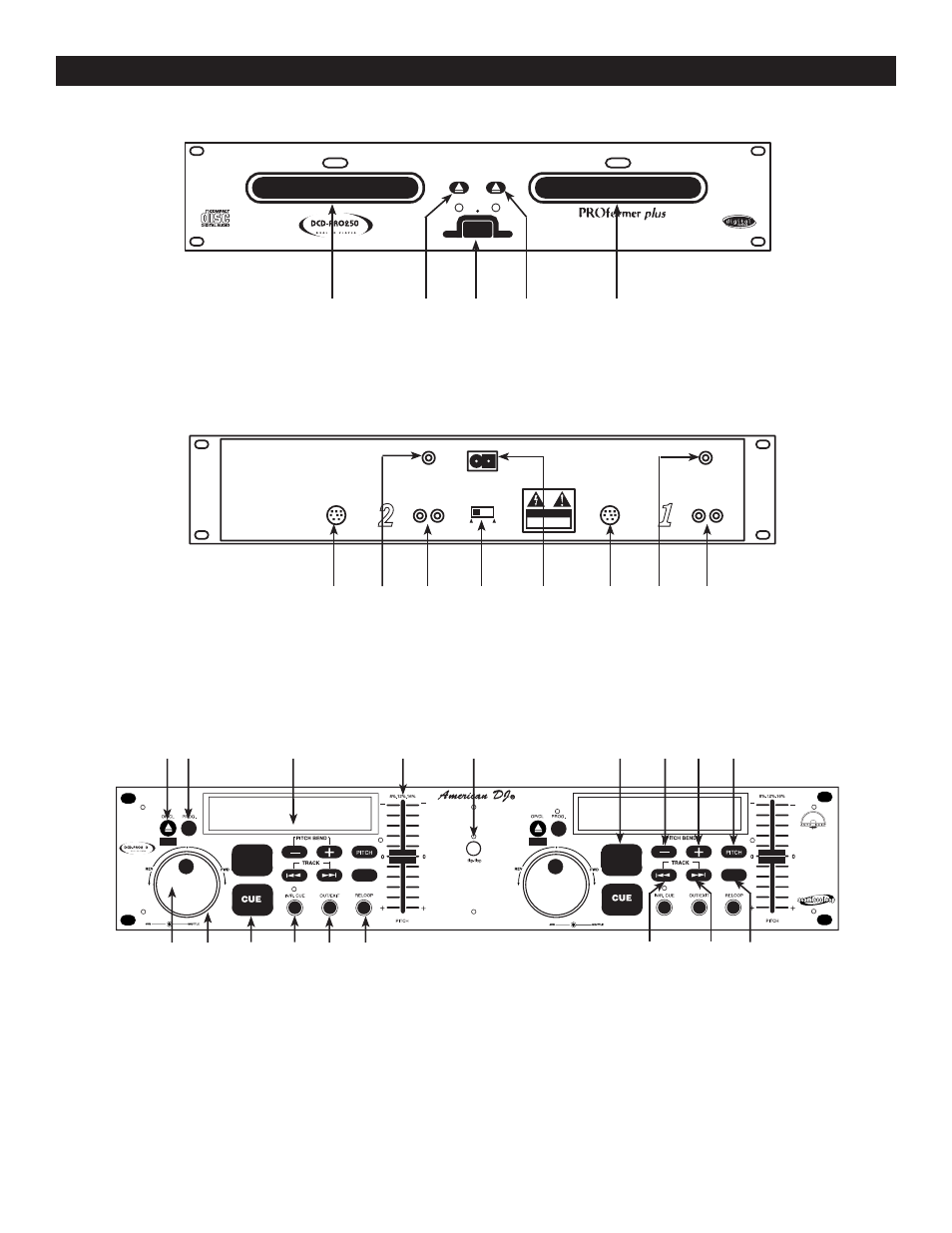

FUNCTIONS & CONTROLS
American DJ
®
POWER
DISC 1
1
OP/CL
DISC 2
2
OP/CL
CONNECT TO
REMOTE CONTROL 2
CONNECT TO
REMOTE CONTROL 1
DIGITAL OUT
SPDIF
AUDIO OUT AUDIO OUT
DIGITAL OUT
SPDIF
115V 230V
RISK OF ELECTRICAL SHOCK
DO NOT OPEN
CAUTION
2 5 4 3 1
DRIVE TRANSPORT UNIT REAR PANEL
FIGURE 2
American DJ
®
POWER
DISC 1
1
OP/CL
DISC 2
2
OP/CL
CONNECT TO
REMOTE CONTROL 2
CONNECT TO
REMOTE CONTROL 1
DIGITAL OUT
SPDIF
AUDIO OUT AUDIO OUT
DIGITAL OUT
SPDIF
115V 230V
RISK OF ELECTRICAL SHOCK
DO NOT OPEN
CAUTION
13 12 11 10 9 7 6 8
DRIVE TRANSPORT UNIT FRONT PANEL
FIGURE 1
1. TRAY OPEN/CLOSE (OPEN/CLOSE BUTTON) 10. JOG SHUTTLE (INNER WHEEL)
2. PROGRAM (PROGRAM BUTTON) 11. JOG SHUTTLE (OUTER WHEEL)
3. LCD (LIQUID CRYSTAL DISPLAY) 12. CUE (CUE BUTTON)
4. PITCH SLIDER 13. IN/LOOP. CUE BUTTON
5. FLIP FLOP BUTTON 14. OUT/LOOP BUTTON
6. PLAY (PLAY/PAUSE BUTTON) 15. RELOOP BUTTON
7. (-) PITCH BEND 16. BACK SKIP BUTTON
8. (+) PITCH BEND 17. FORWARD SKIP BUTTON
9. PITCH (PITCH BUTTON) 18. TIME BUTTON
REMOTE UNIT FRONT PANEL
FIGURE 3
5
REMOTE COTROL UNIT
DISC 1 DISC 2
TIME TIME
PLAY PLAY
1 2 3 4 5
13 14
6 7 8 9
16 17 11 10 12 15 18
American DJ
®
AUDIO • DCD-PRO250™ INSTRUCTIONS MANUAL • PAGE 7
