7
:DOO0RXQW=9
Installation Heights
Actual *Possible
Ceiling *Possible VENTED RECIRCULATING
Height Installation Height Installation Height
7'-11" 24" to 26" 24" to 26"
8'-0" 24" to 27" 24" to 27"
8'-1" 24" to 28" 24" to 28"
8'-2" 24" to 29" 24" to 29"
8'-3" 24" to 30" 24" to 30"
8'-4" 24" to 30" 24" to 30"
8'-5" 24" to 30" 24" to 30"
8'-6" 24" to 30" 24" to 30"
8'-7" 24" to 30" 24" to 30"
8'-8" 24" to 30" 24" to 30"
8'-9" 24" to 30" 24" to 30"
8'-10" 24" to 30" 25" to 30"
8'-11" 24" to 30" 26" to 30"
9'-0" 25" to 30" 24" to 30"
9'-1" 26" to 30" 24" to 30"
9'-2" 27" to 30" 24" to 30"
9'-3" 28" to 30" 24" to 30"
9'-4" 29" to 30" 24" to 30"
9'-5" 30" 25" to 30"
9'-6" 24" to 30" 24" to 30"
9'-7" 24" to 30" 24" to 30"
9'-8" 24" to 30" 24" to 30"
9'-9" 24" to 30" 24" to 30
9"-10" 24" to 30" 24" to 30"
9'-11" 24" to 30" 24" to 30"
10' 24" to 30" 24" to 30"
10'-1" 24" to 30" 24" to 30"
10'-2" 25" to 30" 24" to 30"
10'-3" 26" to 30" 25" to 30"
10'-4" 27" to 30" 26" to 30"
10'-5" 28" to 30" 27" to 30"
*Based on 36 d countertop height.
ACCESSORY
ZX90010
SUPPLIED

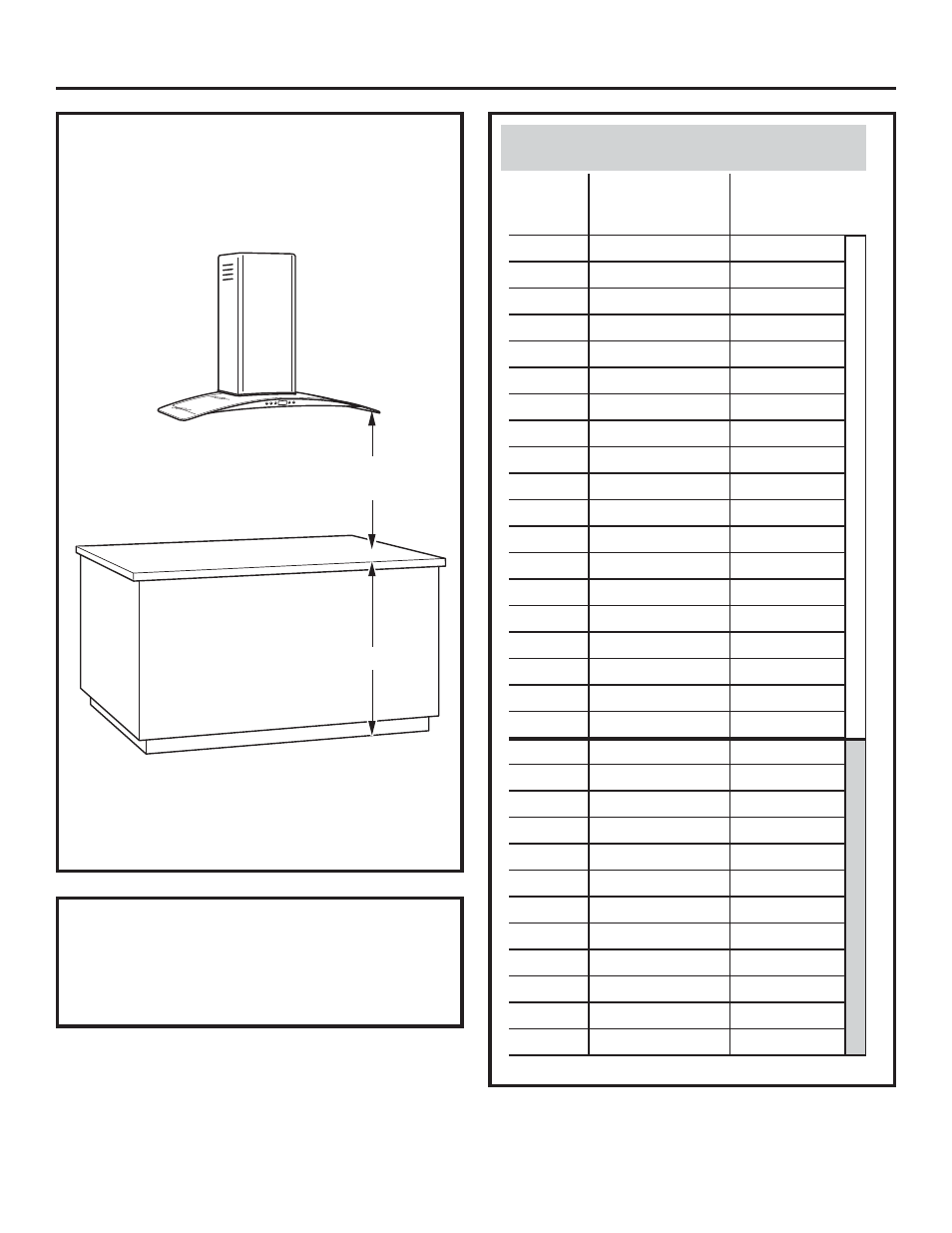

DETERMINE INSTALLATION HEIGHT
• Telescopic duct covers are provided to conceal
the ductwork running to the ceiling.
• This hood can be installed for recirculating
operation. No kits required.
The vent hood must be installed 24" min. and
30" max. above the cooking surface. The hood
installation height, from the cooking surface to the
bottom of the hood, depends upon ceiling height.
Installation Preparation
24” Min.
30” Max.
36” Min.
$&&(6625<
=;
NOTE: Measure
installation height
from the cooking
surface to the
outer glass portion
of the hood.
ACCESSORIES:
• Order ZX90010 accessory for ZV900 wall mount
hood to reach ceiling heights between 9'-6" and
10'-5". This accessory contains one 40" long duct
cover.
