Installation Instructions

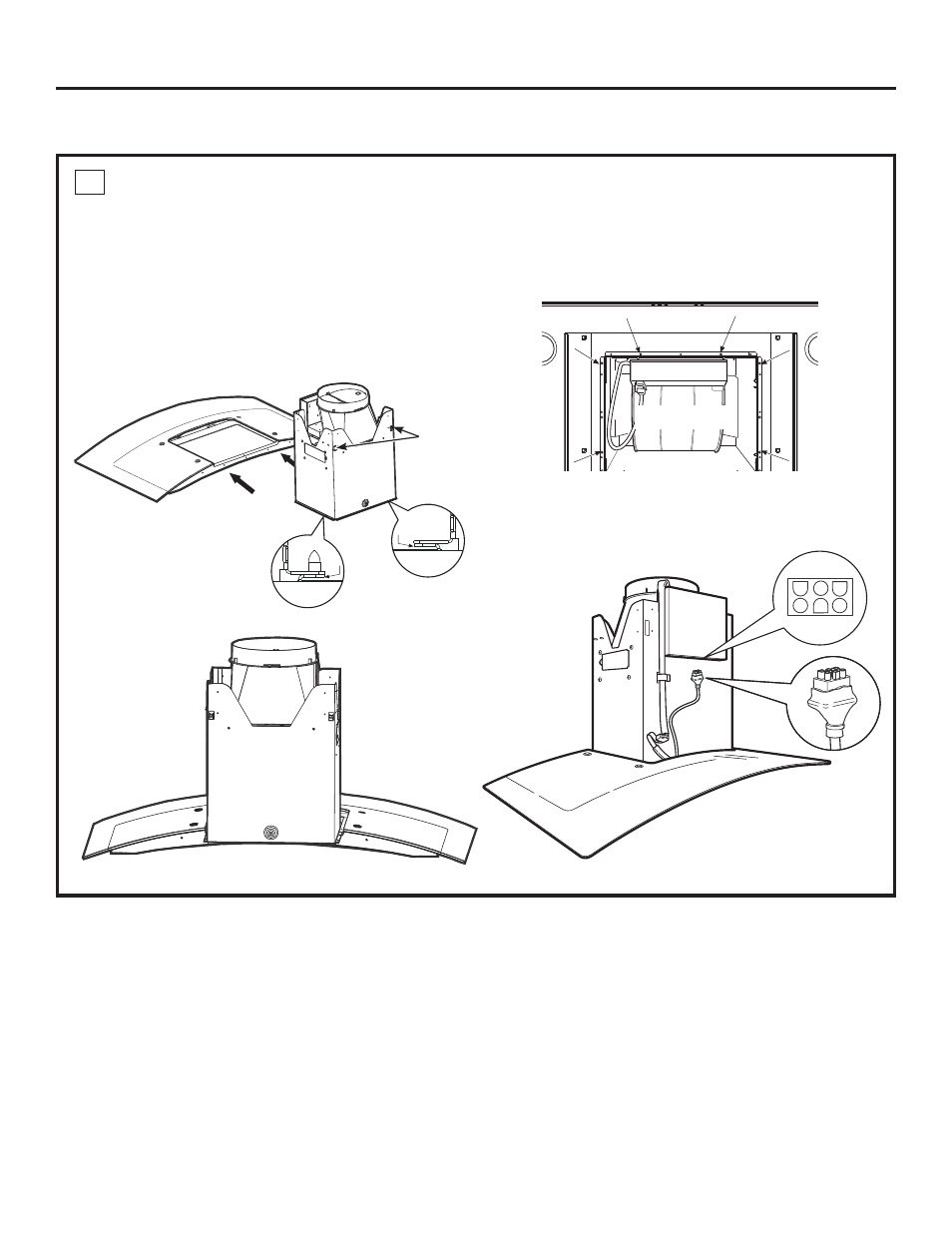

PREPARE THE HOOD
• Place the hood on a padded surface.
• Position the motor housing at the back of the hood.
Electrical connectors should face the front, with
rear mounting hooks at the back.
• Slip the bottom flange of the motor housing into
the side slots at the top rear opening.
• Carefully lay the hood on its back.
• Fasten the hood to the motor housing from the
bottom, using 6 screws.
• Join two cable connectors at the front of the hood.
Rear
mounting
hooks
,167$//$7,21³9(17('727+(2876,'(
Engage flange on
motor housing into slots
Rear view
Bottom view
Rear side
Front side
To Lights
To
Control
Panel
