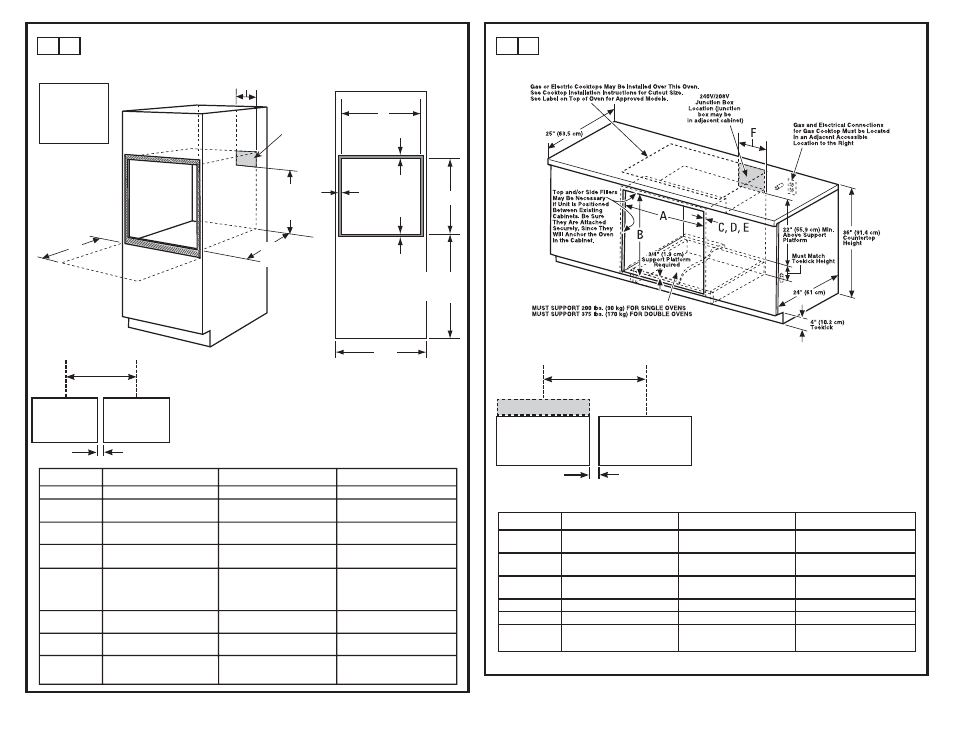

2 A CUTOUT FOR SINGLE OVENS IN WALL CABINET
NOTE: If the cabinet does not have a front frame and the sides are less than ¾” (1.9 cm) thick, shim
both sides equally to establish the cutout width.
These ovens
are not
approved for
stackable
installations.
Cutout –
observe all
dimensions and
requirements.
Cutout –
observe all
dimensions and
requirements.
2” (5.1 cm) Min.
30.5” (77.5 cm)
30” models
27” (68.58 cm)
27” models
Center Line Center Line
Side-by-Side Installations
Install two ovens in separate cutouts.
Dimension Dimension Description 27” Single Oven 30” Single Oven
A Cabinet Width 27” (68.6 cm) 30” (76.2 cm)
B Cutout Width 25” (63.5 cm) min. 28 1 ø 2 ” (72.4 cm) min.
25 1 ø 4
” (64.1 cm) max. 28 5 ø 8
” (72.7 cm) max.
C Cutout Height 27 5 ø 8 ” (70.2 cm) min. 27 1 ø 4 ” (69.2 cm) min.
28 1 ø 8
” (71.4 cm) max. 27 5 ø 16
” (69.4 cm) max.
D Overlap of Oven Over 1” (2.5 cm) 11 ø 16 ” (1.75 cm)
Side Edges of Cutout
E Clearance to 23” (50.8 cm) min. 23” (53.3 cm) min.
Adjacent Corners,
Drawers, Walls, etc.,
When Door Is Open
F Overlap of Oven 1” (2.5 cm) min. 1” (2.5 cm) min.
Top of Cutout (1 1 ø 4
” (3.2 cm) for PT9050)
G Overlap of Oven 1” (2.5 cm) min. 1 1 ø 4
” (3.2 cm)
Bottom of Cutout
H Junction Box Location 8 3 ø 4
” (22.2 cm) max. 9 1 ø 2
” (24.1 cm) max.
right side only right side only
2 B CUTOUT FOR SINGLE OVENS – UNDER COUNTER
NOTE: These ovens are only approved to be installed under the specific models as labeled on the unit.
Dimension Dimension Description 27” Single Oven 30” Single Oven
A Cabinet Width 25” (63.5 cm) min. 28 1 ø 2
” (72.4 cm) min.
25 1 ø 4
” (64.1 cm) max. 28 5 ø 8
” (72.7 cm) max.
B Cutout Height 27 5 ø 8
” (70.2 cm) min. 27 1 ø 4
” (69.2 cm) min.
28 1 ø 8
” (71.4 cm) max. 27 5 ø 16
” (69.4 cm) max.
C Unit Overlap Top 1” (2.5 cm) 1” (2.5 cm)
(1 1 ø 4 ” (3.2 cm) for PT9050)
D Unit Overlap Bottom 1” (2.5 cm) 1 1 ø 4
” (3.2 cm)
E Unit Overlap Side Edges 1” (2.5 cm) 11 ø 16
” (1.75 cm)
F Junction Box Location 8 3 ø 4 ” (22.2 cm) max. 9 1 ø 2 ” (24.1 cm) max.
right side only right side only
Continue to Section 4.
NOTE: One cooktop may be centered over either oven in
the side-by-side installation.
Cutout – observe
all dimensions and
requirements.
2” (5.1 cm) Min.
30.5” (77.5 cm) 30” models
27” (68.58 cm) 27” models
Center Line Center Line
Side-by-Side Installations
Install two ovens in separate cutouts.
Cooktop
Cutout – observe
all dimensions and
requirements.
H
B
F
G
C
D
A
E
Junction
Box
Location
(junction
box may
be located
in adjacent
cabinet)
22” (55.9
cm) Min. to
Bottom of
Junction
Box
Cutout Depth
23-1/2”
(59.7 cm) Min.
Recommended
Cutout Location
from Floor
32-1/2” (82.6 cm)
Opening
Between Inside
Walls Must be
at Least 28-1/2”
(72.4 cm) Wide
Note: Allow
1/4” (0.64 cm)
clearances
from side
edges of oven
door.
