Where to Place the Monitor
Place your monitor on a flat sturdy surface. Ensure the operating site
is free from excessive heat and moisture.
WARNING Before you connect any cables, or install your HP monitor, refer to the safety
instructions at the beginning of this manual. Refer also to the user’s manual
that accompanies your PC and video adapter to ensure this equipment is
correctly installed.
Connecting the Cables
This monitor is equipped with an auto-sensing power supply for
voltage ranges 100 ~ 240V AC, 50 ~ 60 Hz. Only use with the
supplied adapter.
1 Make sure the system power is turned off.
2 Plug the signal cable into the signal connector at the rear of
the PC.
3 Plug the adapter output cable into the jack at the rear of the
monitor and the power cord to the adapter.

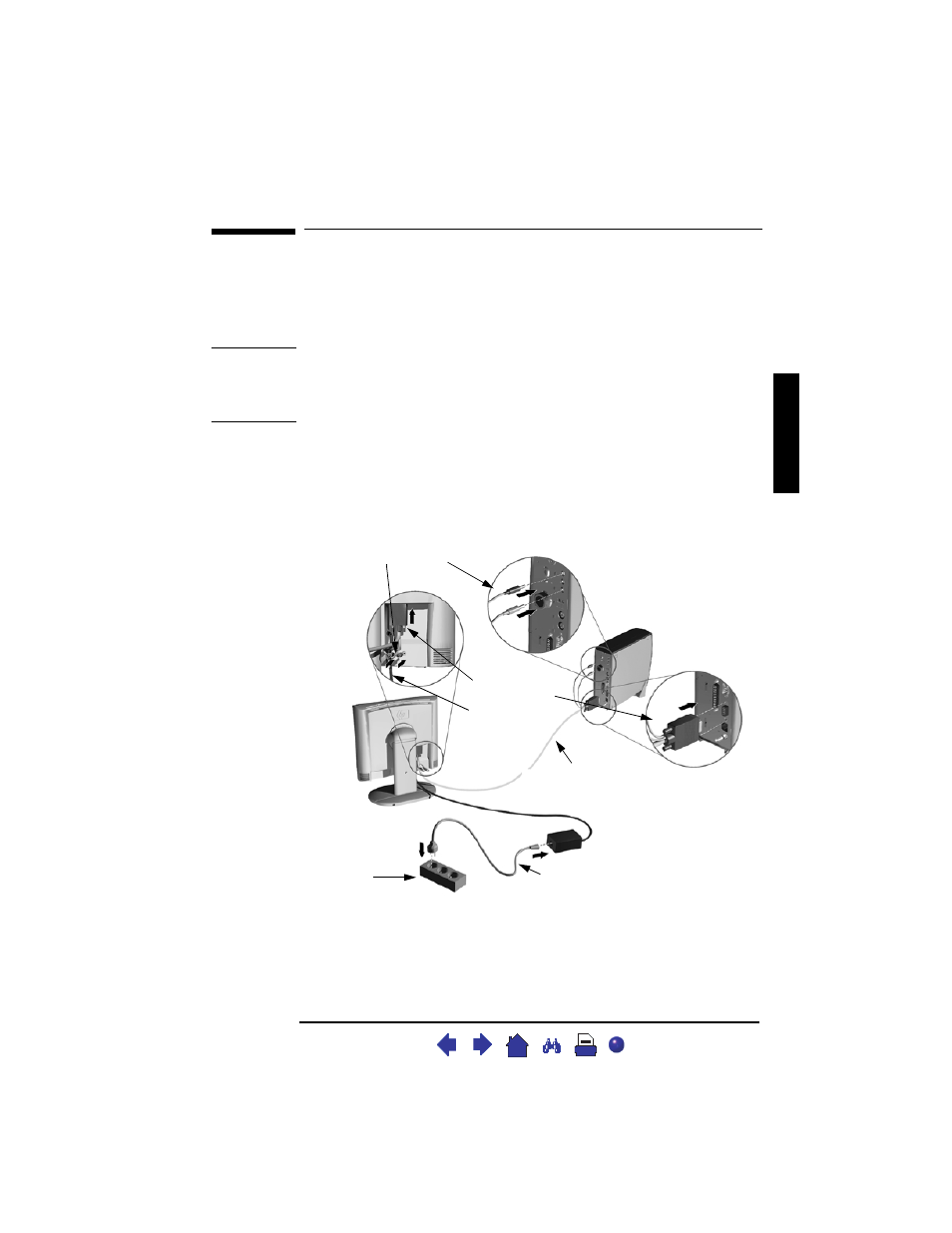

power cord
video cable
adapter output
power source
audio connectors
video connector
