Connecting a headphone, Figure 3-7 connecting the headphone, Managing the cables – HP ENVY 27 27-inch Diagonal IPS LED Backlit Monitor User Manual
Page 16: Figure 3-8 managing the cables, Enww 10 chapter 3 setting up the monitor
ENWW
10 Chapter 3 Setting Up the Monitor
Connecting a Headphone
Connect the headphone cable to the right side of the monitor.

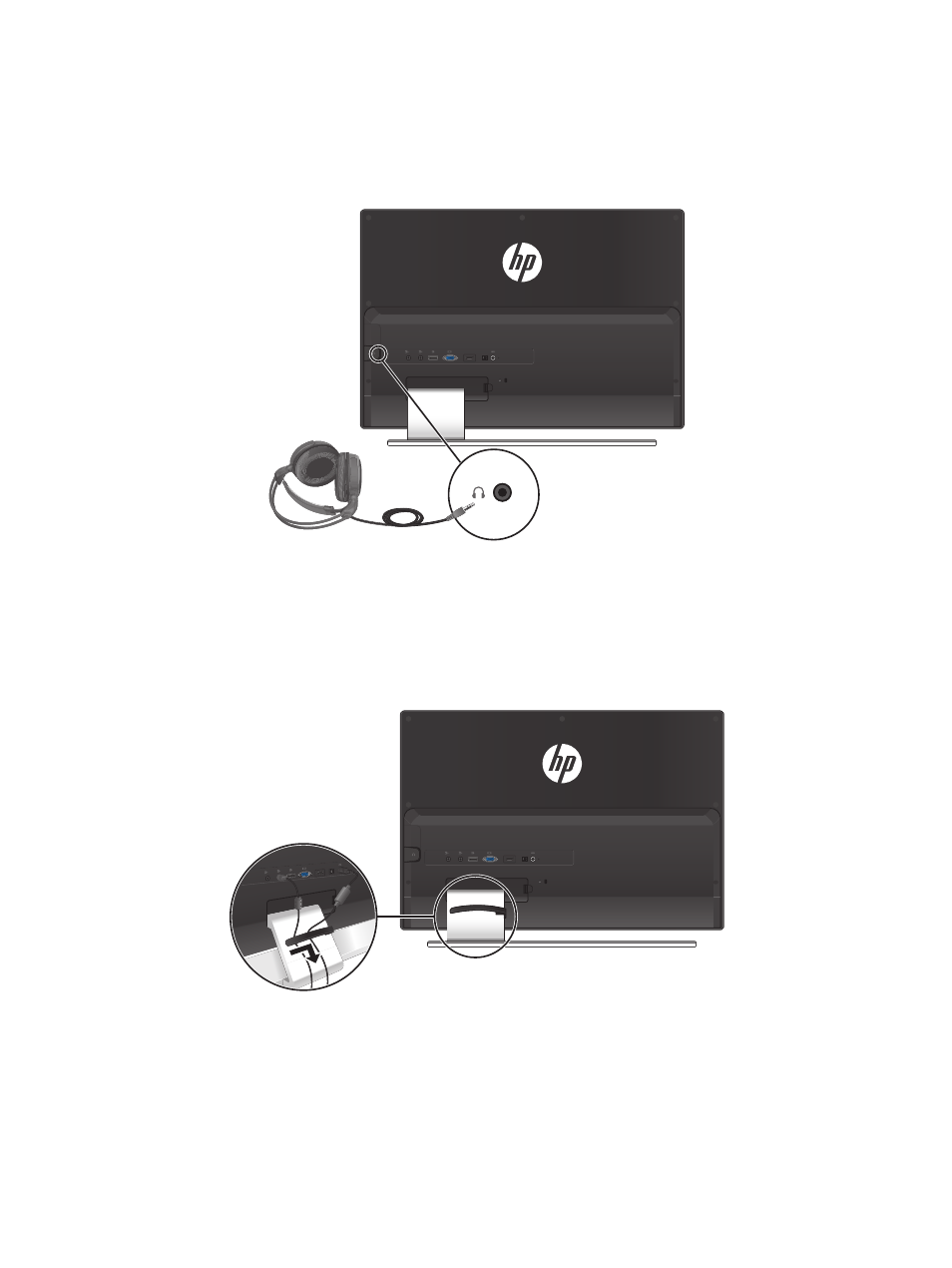

Figure 3-7
Connecting the Headphone
Managing the Cables
A cable management comes with the package. Install the cable management clip on the stand,
then insert the cables into the clip.
Figure 3-8
Managing the Cables
Sub
HDMI
SPDIF
Sub
HDMI
SPDIF
Sub
HDMI
SPDIF
