Connecting audio output devices, Connecting a subwoofer, Figure 3-5 connecting a subwoofer – HP ENVY 27 27-inch Diagonal IPS LED Backlit Monitor User Manual
Page 15: Connecting a digital audio device, Figure 3-6 connecting the spdif cable
Connecting Audio Output Devices 9
ENWW
Connecting Audio Output Devices
Connecting a Subwoofer

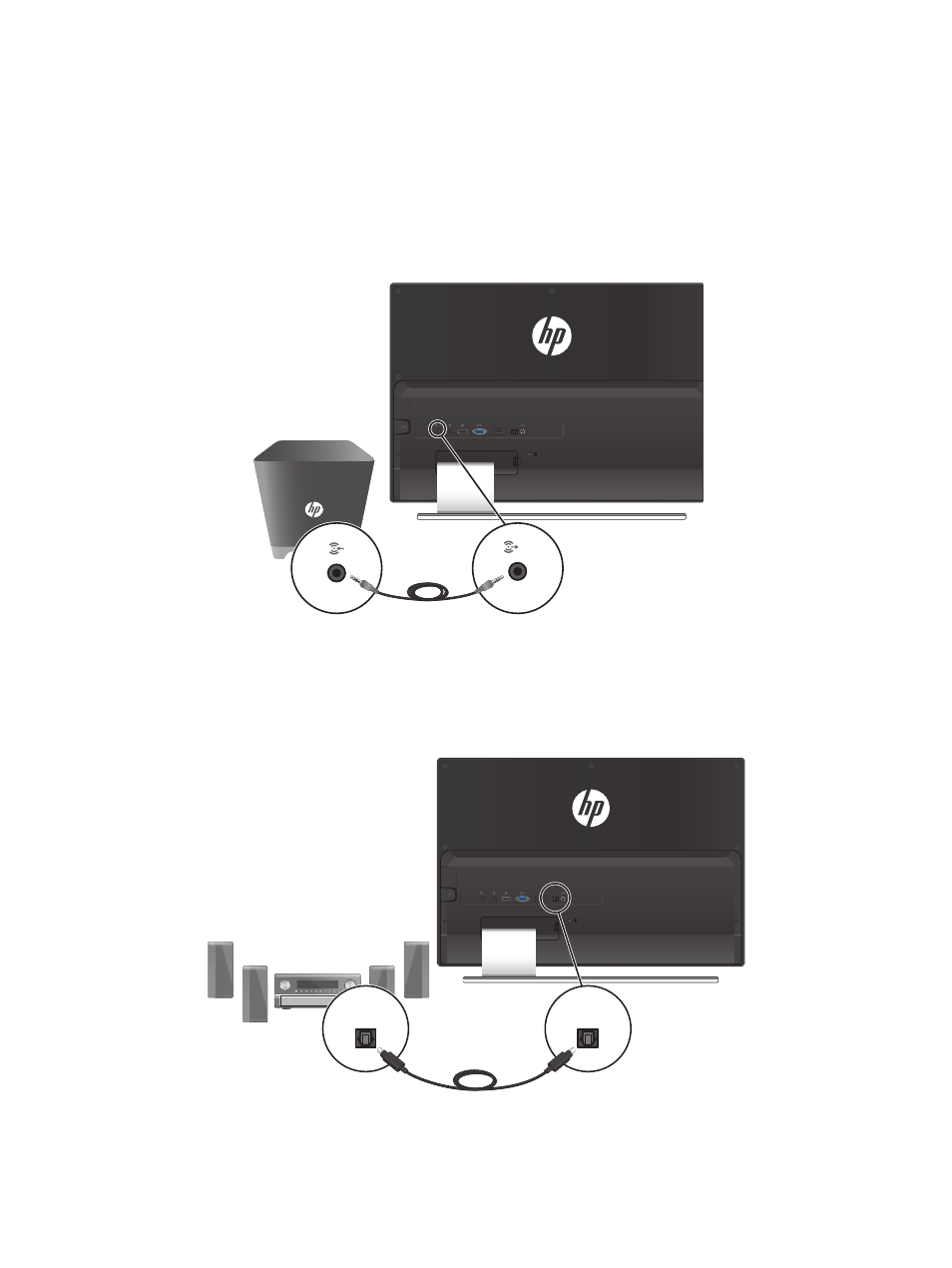

Connect one end of the audio cable to the back of the monitor and the other end of the cable to the
audio output device.
Figure 3-5
Connecting a Subwoofer
Connecting a Digital Audio Device
Connect one end of the SPDIF cable to the back of the monitor and the other end of the cable to
the audio output device. The SPDIF cable is not provided.
Figure 3-6
Connecting the SPDIF Cable
Sub
HDMI
SPDIF
Sub
Sub
HDMI
SPDIF
SPDIF
SPDIF
