7.

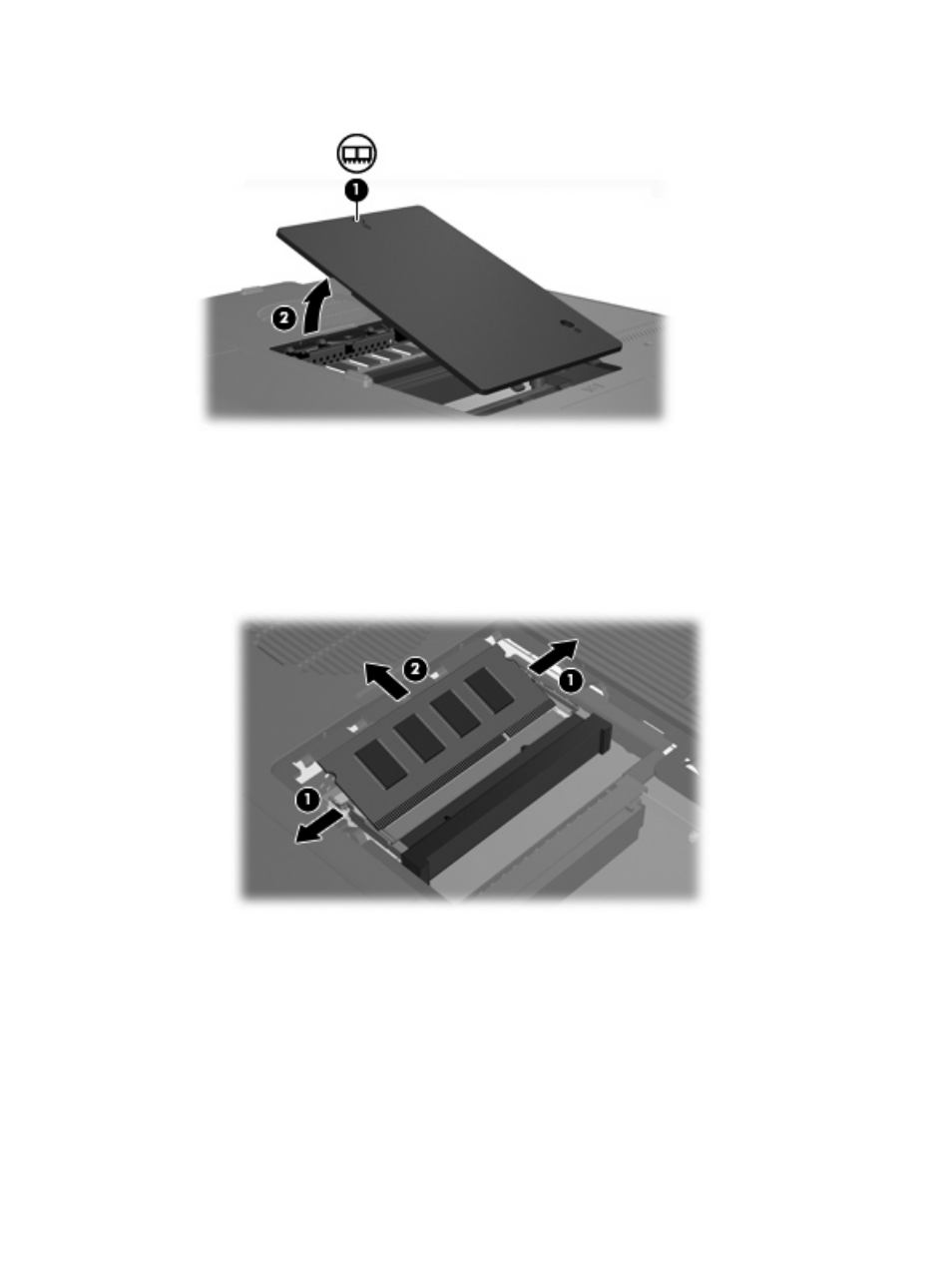

Lift the memory module compartment cover (2) away from the computer.

8.

To remove a memory module:

a.

Pull away the retention clips (1) on each side of the memory module . (The memory module
tilts up.)

b.

Grasp the edge of the memory module (2) and gently pull the module out of the memory
module slot. (To protect a memory module after removal, place it in an electrostatic-safe
container.)

9.

To insert a memory module:

a.

Align the notched edge (1) of the memory module with the tab in the memory module slot.

b.

With the memory module at a 45-degree angle from the surface of the memory module
compartment, press the module (2) into the memory module slot until it is seated.

ENWW

Adding or replacing memory modules

75
