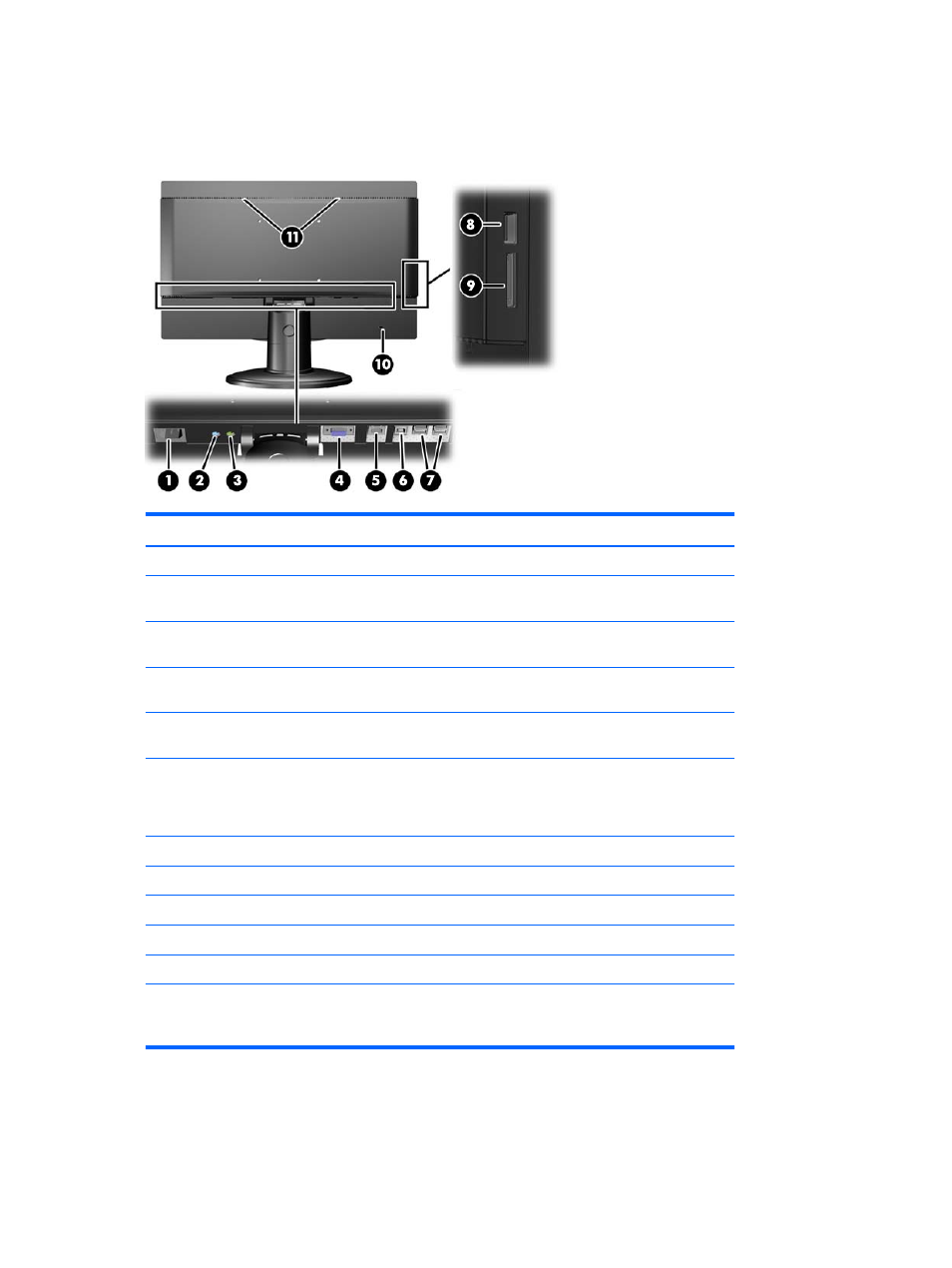

Rear Components

Figure 2-5

Rear Components

Component

Function

1

AC Power Connector

Connects the AC power cord to the monitor.

2

Audio In Connector

Connects an input audio cable between the monitor and a
PC when using the monitor in PC mode.

3

Audio Out Connector

Connects an output audio cable between the monitor and an
external audio device.

4

VGA Connector

Connects a VGA cable between the monitor and a PC when
using the monitor in PC mode.

5

Ethernet Connector

Connects an Ethernet cable to the monitor when using the
monitor in Net mode.

6

USB In Connector

Connects the USB hub cable to the monitor's USB hub
connector and to a host USB port/hub on a PC so that the
USB ports on the monitor are active when using the monitor
in PC mode.

7

4 USB Out Connectors

Connects external USB devices to the monitor.

8

USB Out Connector

Connects external USB devices to the monitor.

9

4-in-1 Media Card Reader Slot Supports SD, MMC, MS, and xD cards.

10

Lock Slot

Attaches a locking mechanism to the monitor.

11

Speakers

Two 2-watt stereo speakers.

NOTE:

In PC mode, a USB upstream cable (not provided) must be connected between the PC and

the monitor's USB In connector in order for the USB Out connectors to function. In Net mode, the
USB Out connectors function without connecting to a PC.
