Hardware options installation 30
Installing DIMMs
1. Power down the server (on page 17 ).
2. Remove the server from the rack (on page 18 ).
3. Remove the access panel (on page 18 ).
4. Open the DIMM slot latches.

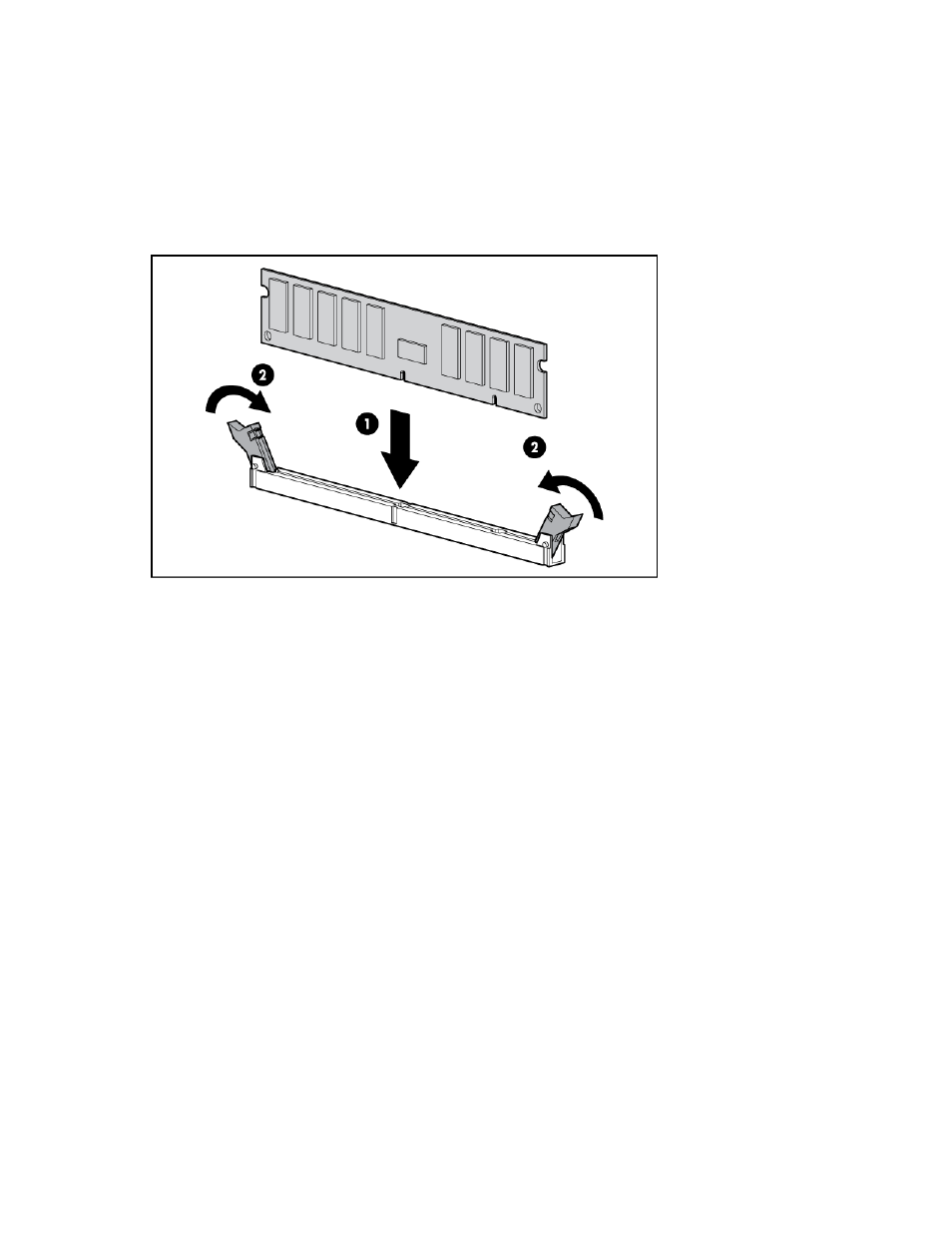

5. Install the DIMM.
6. Install the access panel.
7. Install the server into the rack.
Hard drive options
The server provides non-hot plug capability through an embedded SATA controller. To obtain SAS or
SATA hot-plug capability, install an optional controller and hot-plug cable option kit.
Hard drive guidelines
When adding hard drives to the server, observe the following general guidelines:
• The system automatically sets all drive numbers.
• If only one hard drive is used, install it in the bay with the lowest drive number.
• Drives must be the same capacity to provide the greatest storage space efficiency when drives are
grouped together into the same drive array.
Optional storage controllers provide support for hot-plug capability and drive LEDs. Controller options
are:
• The embedded controller supports non-hot-plug SATA hard drives. Drive LEDs are not supported.
• Optional SATA controllers support hot-plug SATA hard drives and drive LEDs.
• Optional SAS controllers support hot-plug SAS or SATA hard drives and drive LEDs.
