Installing the Fibre Channel to SCSI Router for the
Versatile I/O Enclosure
M8201R Fibre Channel to SCSI Router Installation and User’s Guide — 529971-006
D- 2
Installation
2. Tighten the screws by hand to secure the cable to the unit. Do not use a
screwdriver.

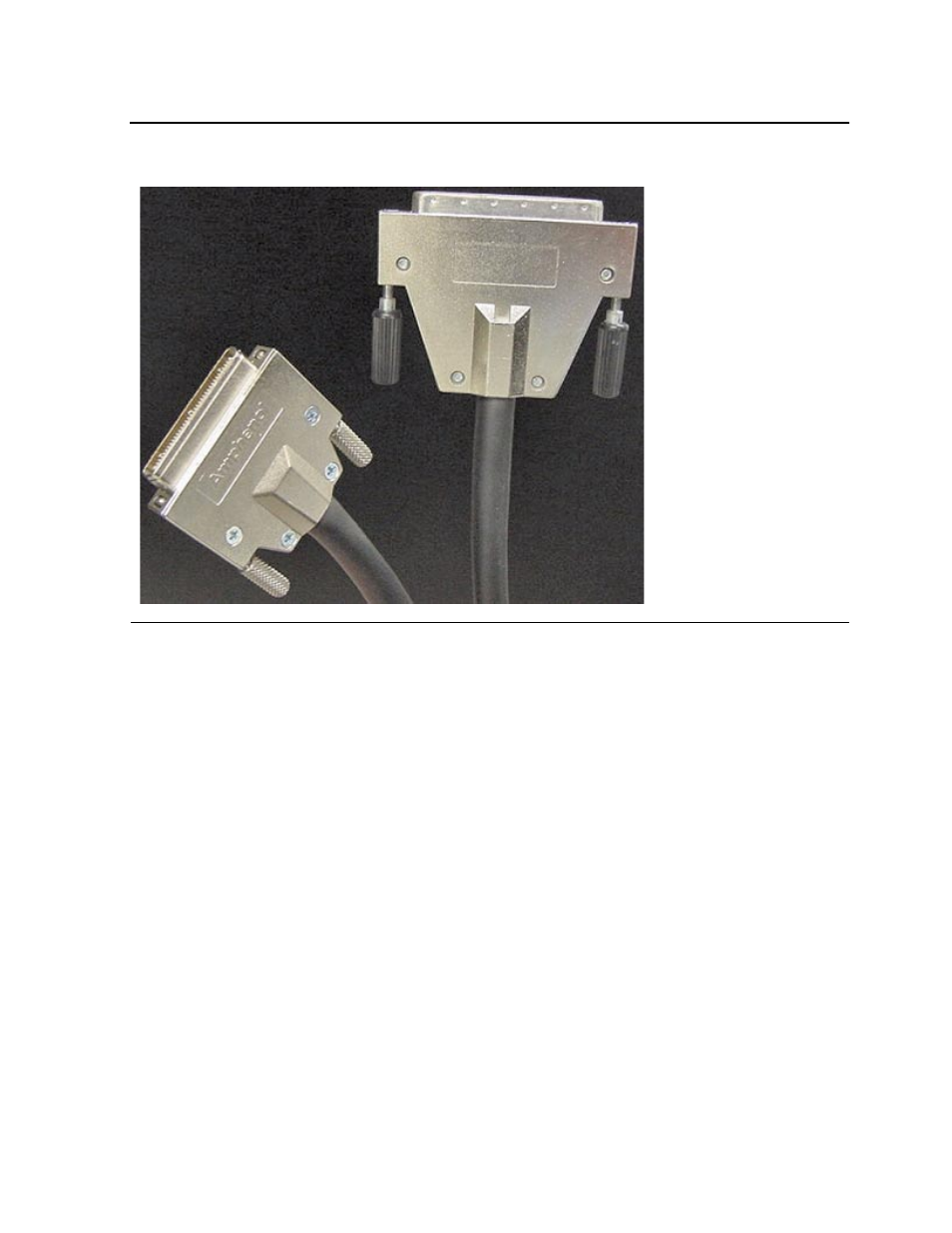

Figure D-1. SCSI Cable
