HP Z800 Workstation chassis components
The following image shows a typical HP Z800 Workstation. Drive configurations can vary.

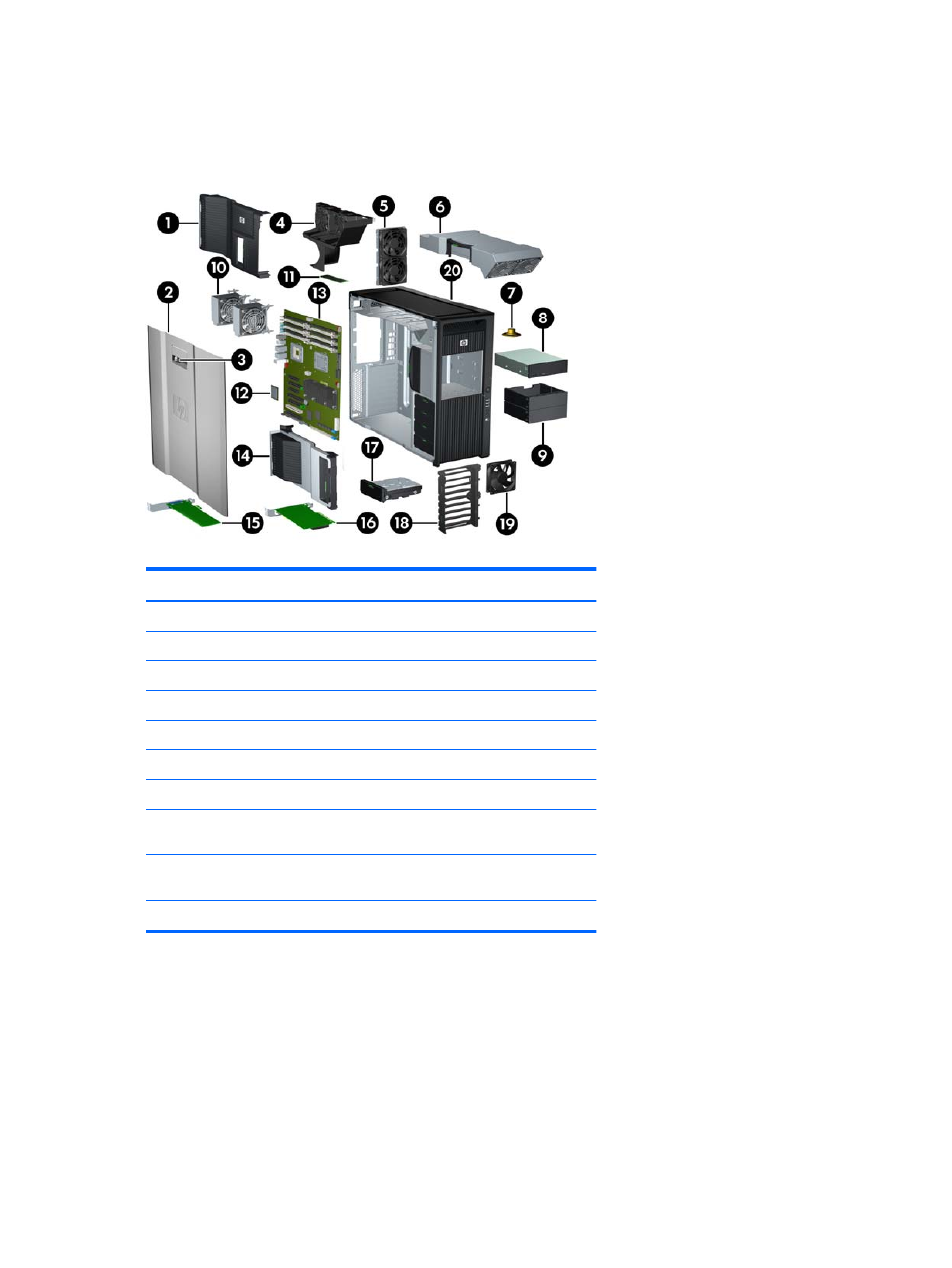

Figure 2-7 HP Z800 Workstation components
Table 2-7 HP Z800 Workstation component descriptions
Item Description Item Description
1 Airflow guide 11 Memory module (DIMM)
2 Side access panel 12 Processor (CPU)
3 Side access panel key lock 13 System board
4 Memory fans 14 Expansion card support
5 Rear system fans 15 PCIe card
6 Power supply 16 PCI card
7 Speaker 17 Hard disk drive
8 Optical drive 18 System board retainer/front
fan holder
9 Optical bay fillers (optional
or other devices) 19 Front system fan*
10 Processor (CPU) heatsinks 20 Chassis
* *Two fans installed in 1110W power supply version.
16 Chapter 2 Workstation components ENWW
