Configuring SAN products and fabrics 92
The Show Route dialog box is displayed ( Figure 47 ).

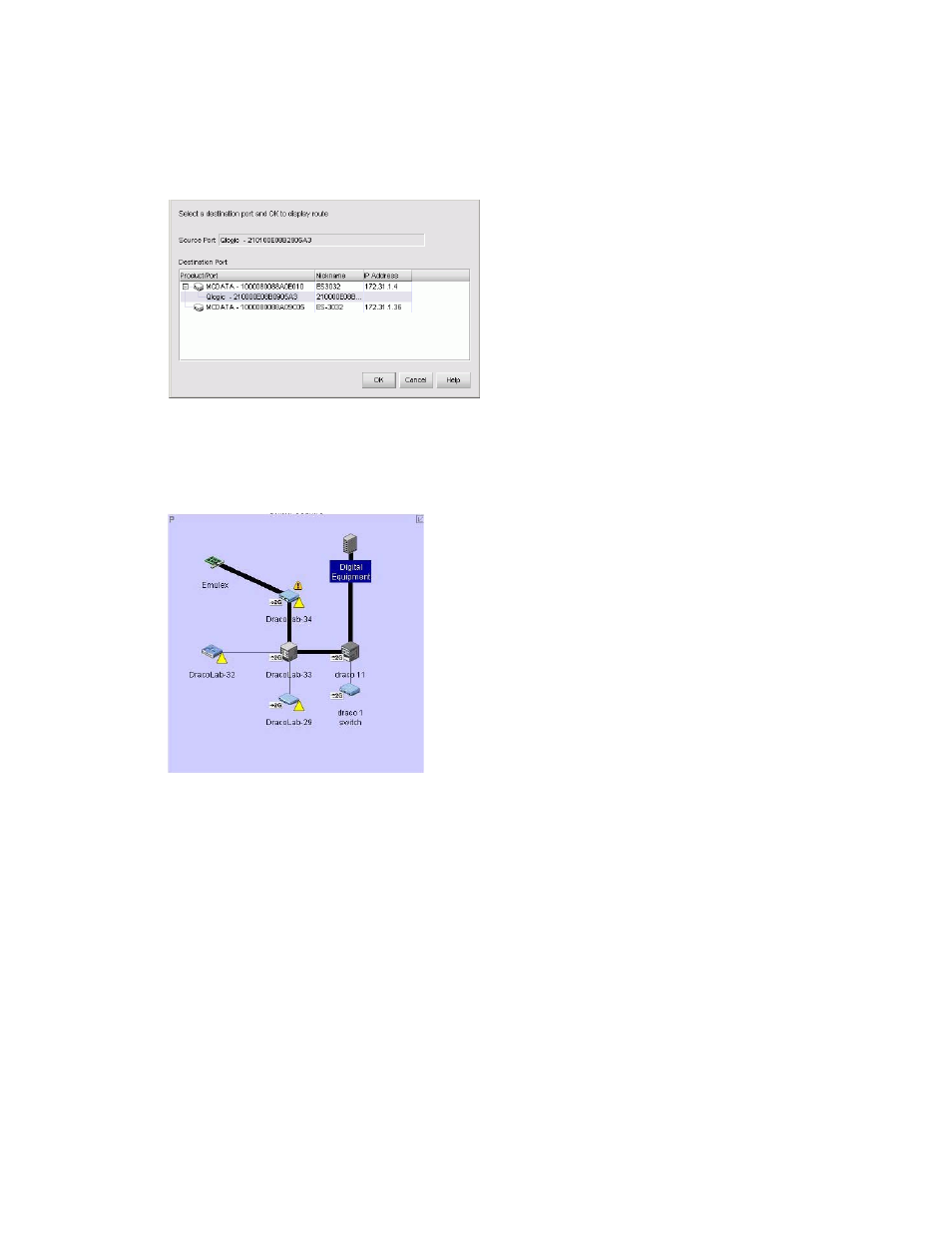

Figure 47 Show Route dialog box
3. Select a destination port from the Destination Port list.
4. Click OK.
The route between the ports is displayed (
Figure 48 ).
Figure 48 Displaying routes between ports
Hiding routes
You can hide routes between two ports in a multiswitch fabric.
To hide the route:
1. Display the route that you want to hide.
See ”
Displaying routes between ports ” on page 91.
2. Right-click the route and select Hide Route.
