Optional HAFM features 128
The Edit Link Threshold dialog box is displayed ( Figure 78 ).

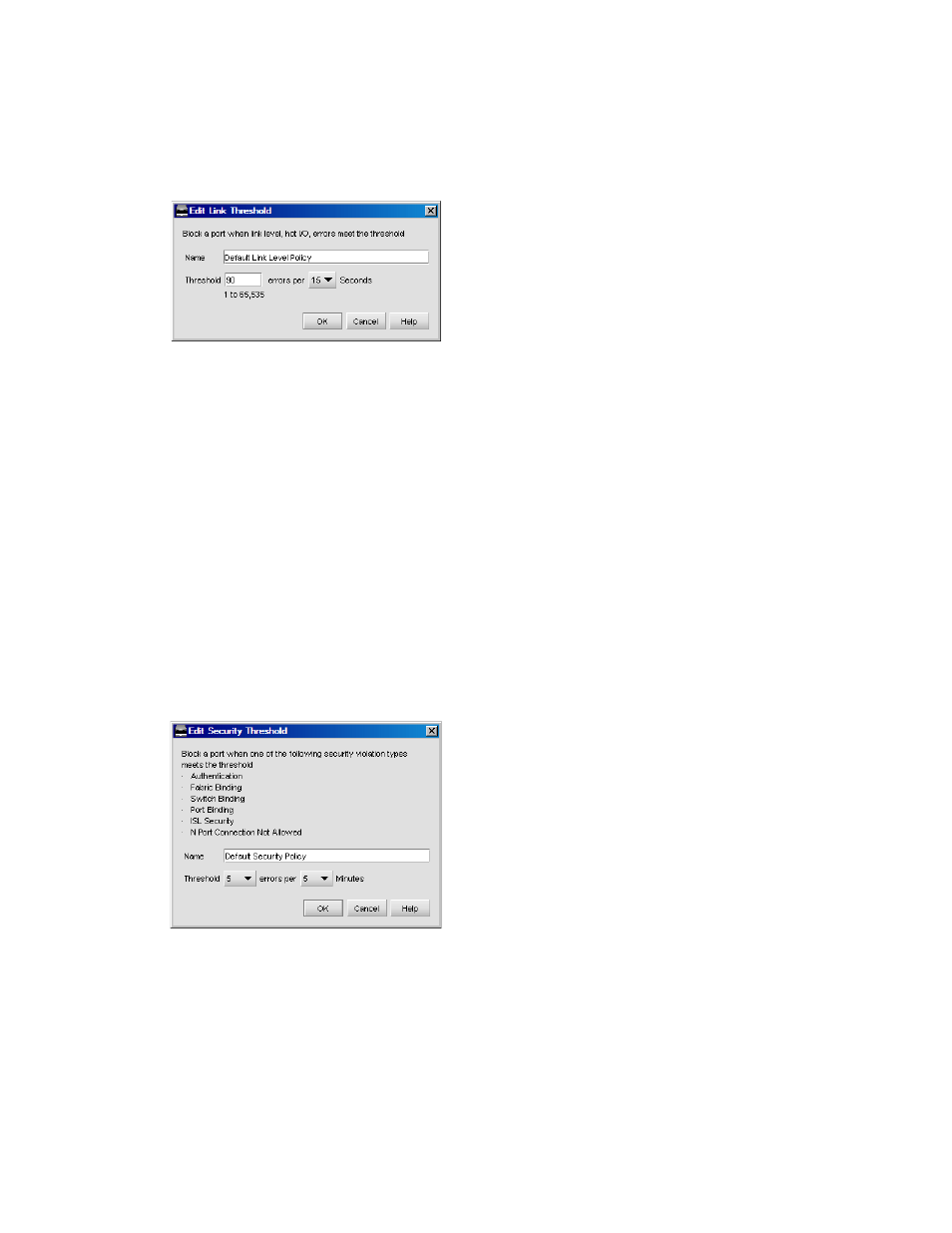

Figure 78 Edit Link Threshold dialog box
4. Make changes to the threshold, if necessary.
5. Click OK to accept the changes and close the Edit Link Threshold dialog box.
If the threshold has already been assigned to ports, the message
This edit will apply
to affected switches
is displayed. Click OK to close.
6. To assign this threshold to fabrics, switches, or switch ports, see ” Assigning thresholds ” on
page 126.
7. Click OK.
Editing security thresholds
To edit a security threshold:
1. Select Configure > Port Fencing.
The Port Fencing dialog box is displayed (
Figure 73 on page 124).
2. Select Security from the Violation Type list.
3. Click Edit.
The Edit Security Threshold dialog box is displayed (
Figure 79 ).
Figure 79 Edit Security Threshold dialog box
4. Make changes to the threshold, if necessary.
5. Click OK to accept the changes and close the Edit Security Threshold dialog box.
If the threshold has already been assigned to ports, the message
This edit will apply
to affected switches
is displayed. Click OK to close.
