Optional HAFM features 124
The Port Fencing dialog box is displayed ( Figure 73 ).

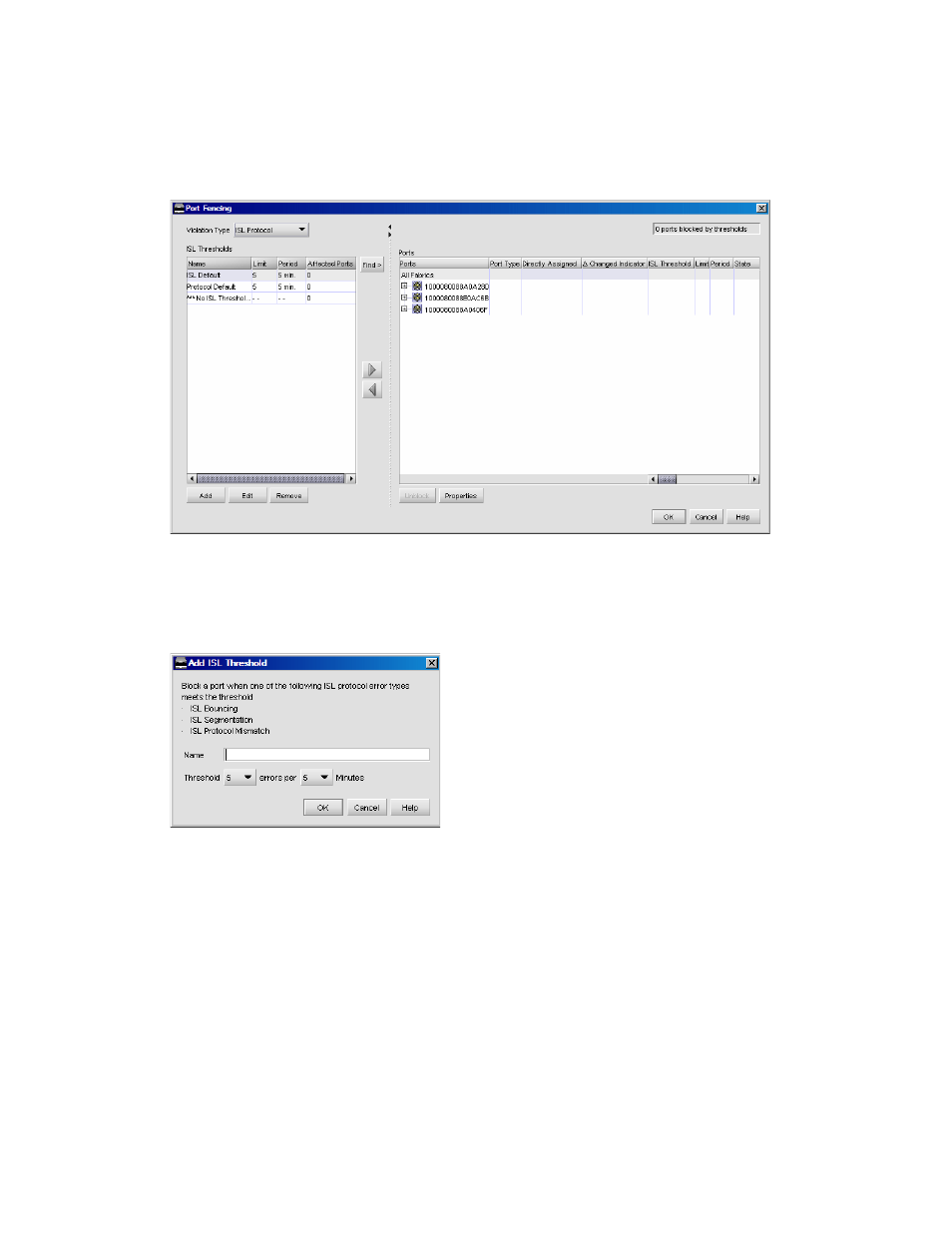

Figure 73 Port Fencing dialog box
2. Select ISL Protocol from the Violation Type list.
3. Click Add.
The Add ISL Threshold dialog box is displayed (
Figure 74 ).
Figure 74 Add ISL Threshold dialog box
4. Enter a name for the threshold in the Name box.
5. Select the number of port events allowed for the threshold from the Threshold errors list.
6. Select the time period for the threshold from the Threshold Minutes list.
7. Click OK to add the ISL threshold to the table and close the Add ISL Threshold dialog box.
8. To assign this threshold to fabrics, switches, or switch ports, see ” Assigning thresholds ” on
page 126.
9. Click OK.
