Setting Up the ACL Tape Drives
This section includes:
Setting Up the M8605A ACL Rackmount Unit
Setting up the ACL rackmount unit requires a template and storage cabinet slide rails
to install the unit in a standard 19-inch rack storage cabinet.
To set up the rackmount model:
1. Ensure that you have adequate space available in the rack.
2. Use the template that is shipped with the unit to mark the location of the mounting
hardware on the mounting rails of the storage cabinet.
Setting Up the M8605A ACL Rackmount Unit 2-1
Setting Up the M8606A ACL Tabletop 2-5

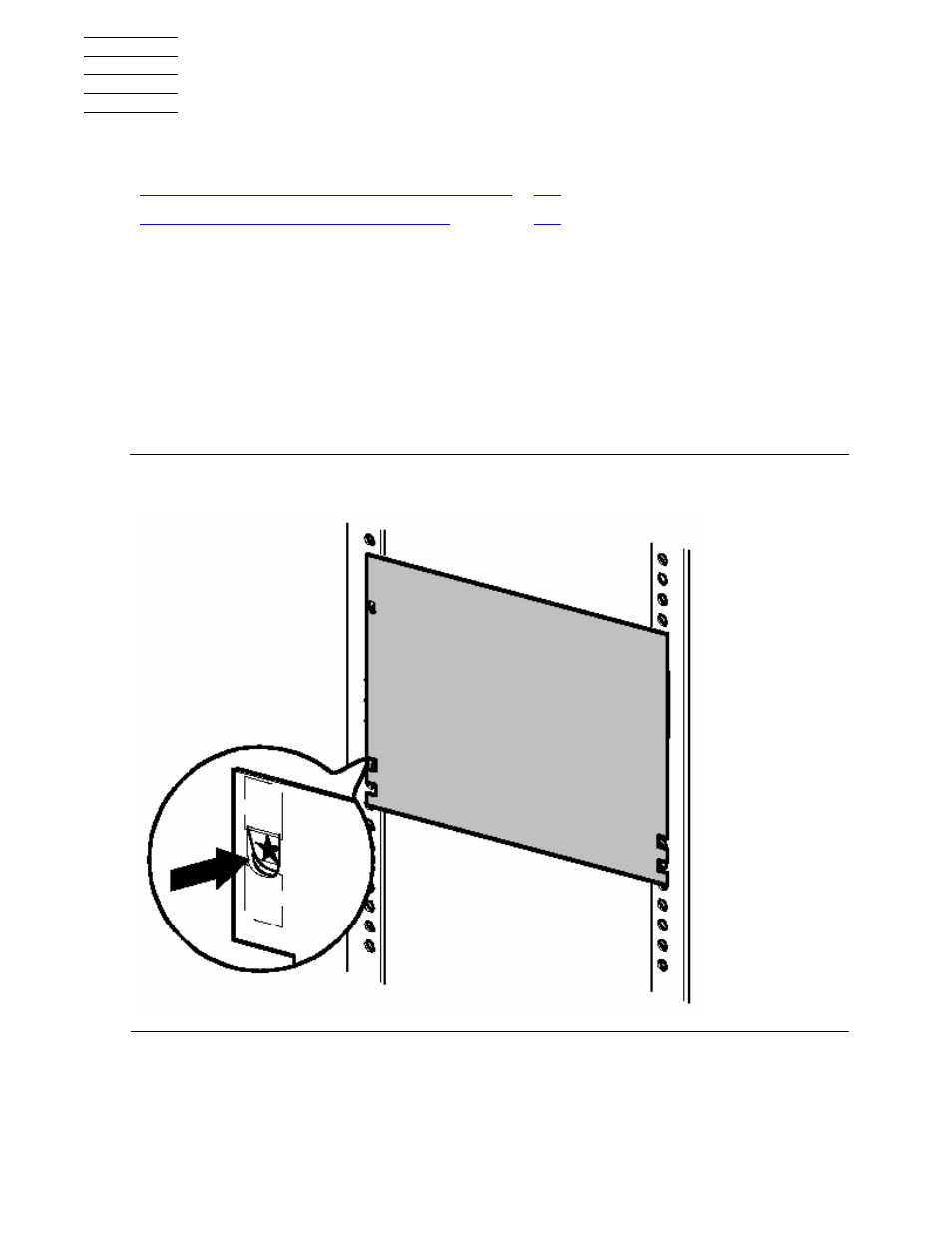

Figure 2-1. M8605A ACL Template
