HP ProBook 5220m Notebook PC - Manual (Page 48)

To remove a hard drive:
1. Save your work.
2. Shut down the computer and close the display.
3. Disconnect all external hardware devices connected to the computer.
4. Unplug the power cord from the AC outlet.
5. Turn the computer upside down on a flat surface, with the battery bay toward you.
6. Remove the battery.

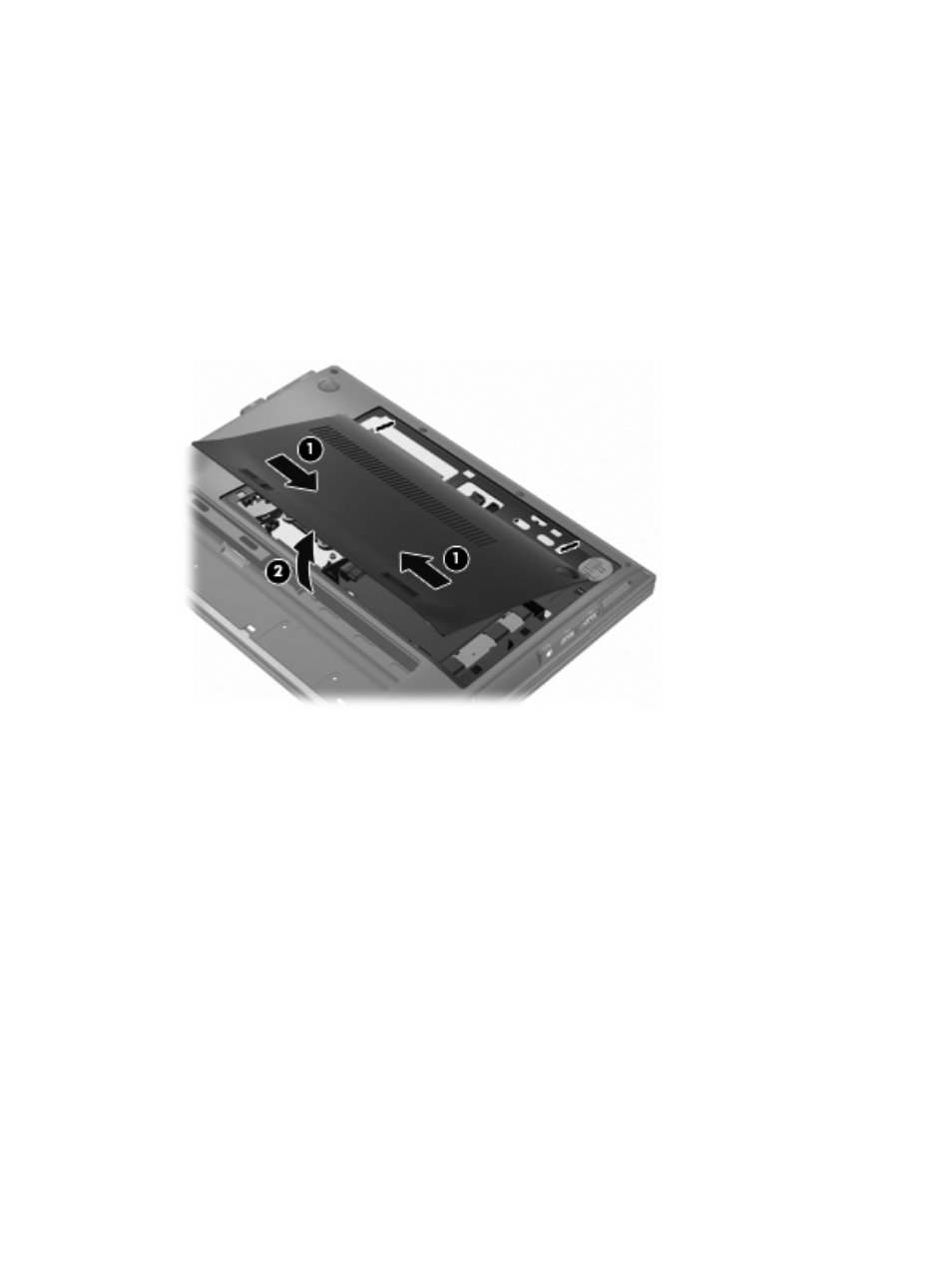

7. Slide the service access door latches (1) inward. Slide the service access door toward the battery
bay. Then lift up the forward edge of the service access door and remove the door (2).
8. Disconnect the hard drive connector cable (1).
9. Remove the 3 hard drive screws (2).
40 Chapter 5 Drives
