Connecting the monitor – HP L2045w 20-inch Widescreen LCD Monitor User Manual
Page 15
The monitor will automatically determine which inputs have valid video signals. The inputs can be
selected through the On-Screen Display (OSD) feature by pressing the
Input Select
button on the front
panel.

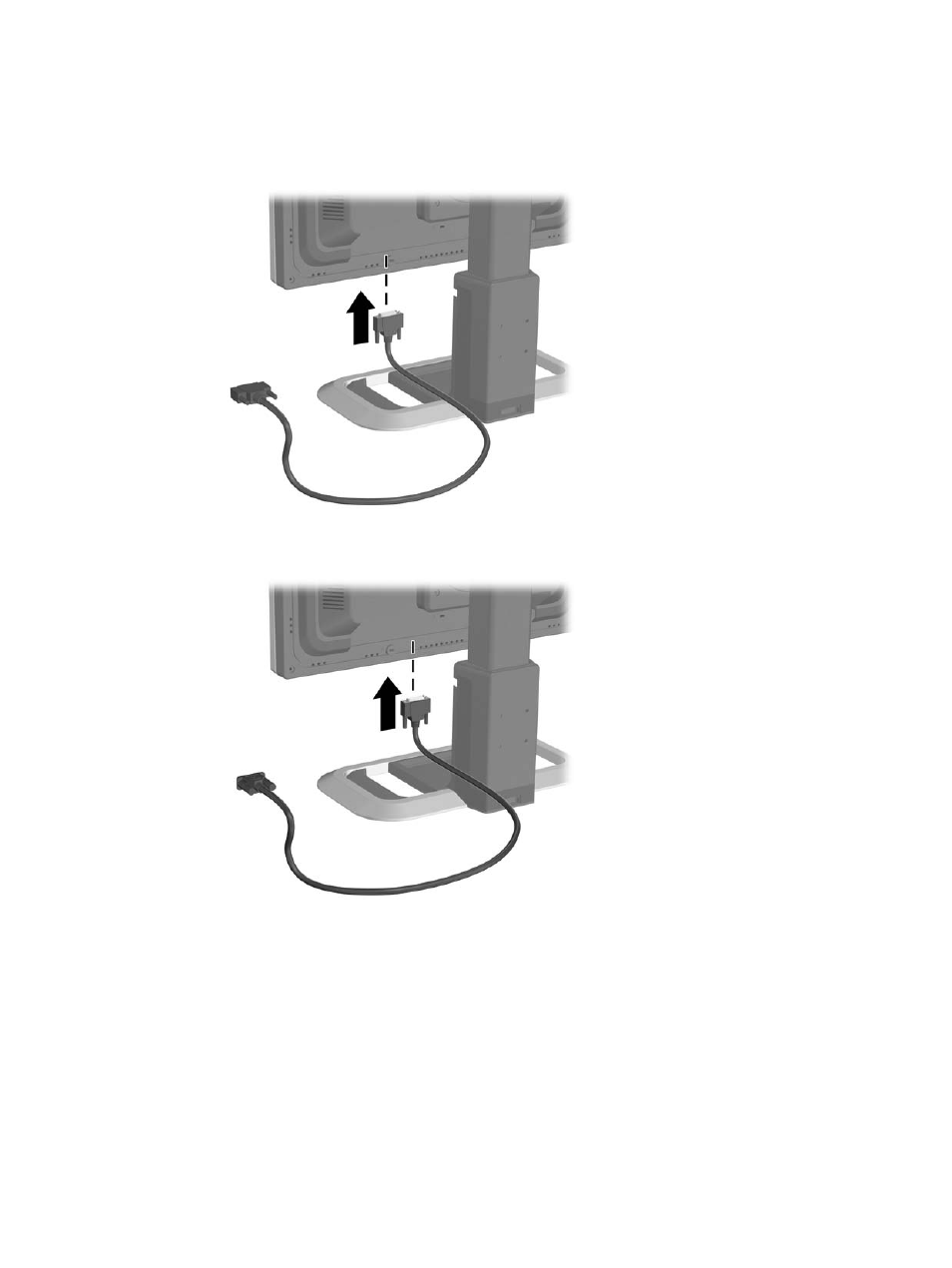

Figure 3-3
Connecting the DVI-D Signal Cable (not included with monitor)
Figure 3-4
Connecting the VGA Signal Cable
Connecting the Monitor
1.
Place the monitor in a convenient, well-ventilated location near the computer.
Connecting the Monitor
7
