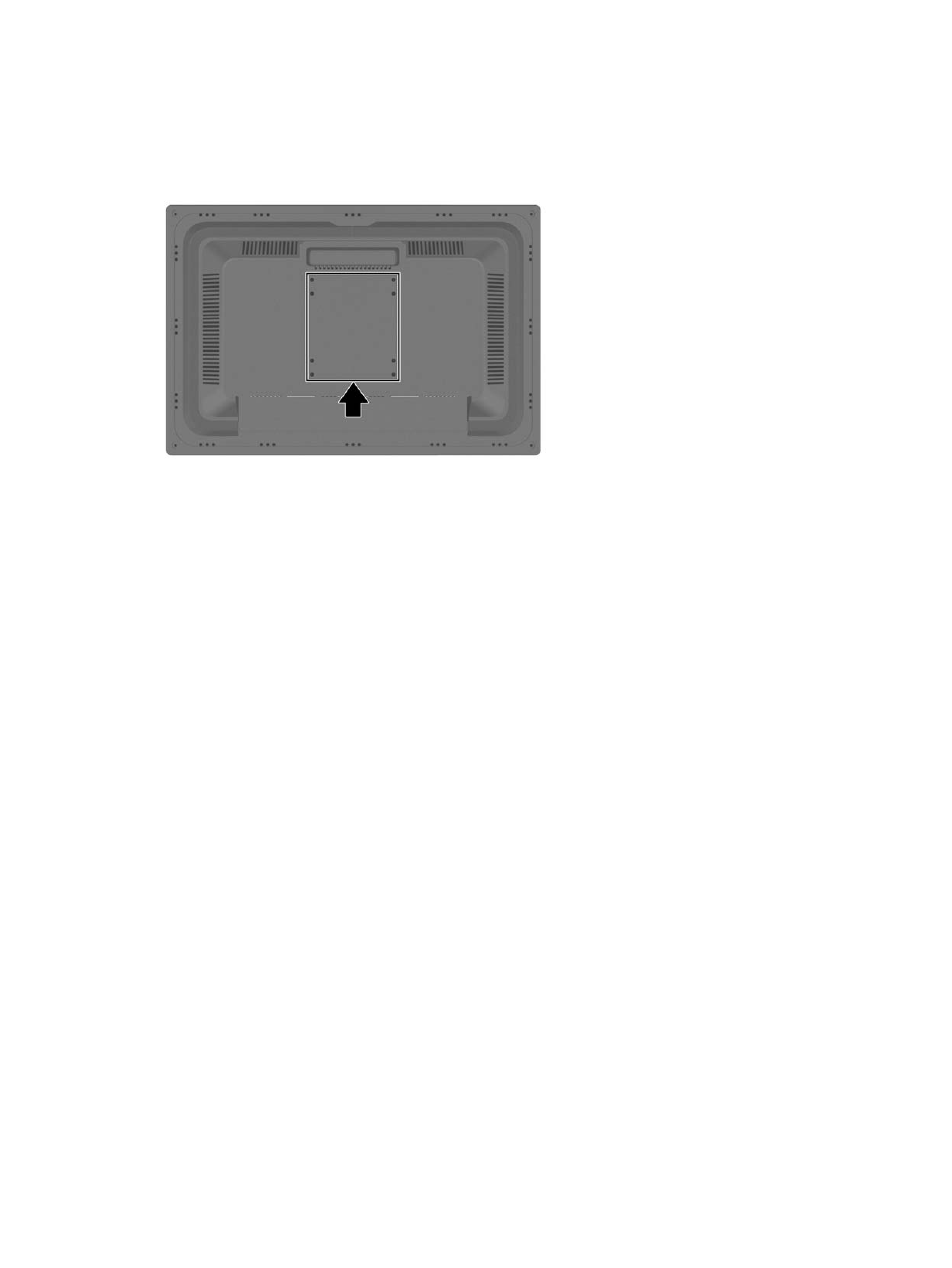

The monitor features two sets of VESA 100mm mounting holes. Use the top mounting holes to allow
the display head to be lowered 18.05 mm closer to the table surface, when used in landscape mode.
Figure 3-2
Two Sets of VESA 100mm Mounting Holes
Selecting the Signal Connectors and Cables
The monitor features one DVI-D connector and one VGA connector capable of supporting either digital
or analog input.
The video mode is determined by the connector and video cable used.
●
For digital operation, use an optional DVI-D signal cable. Connect the DVI-D signal cable to a DVI-
D connector on the monitor and the other end to the DVI-D connector on the computer.
●
For analog operation, use the VGA signal cable provided. Connect the VGA signal cable to a VGA
connector on the monitor and the other end to the VGA connector on the computer.
