Zone Administration
246 Web Tools Version 3.1.x/4.1.x User Guide
To enable the configuration, see “ Enabling a Configuration ” on page 214.
Creating a Configuration Analysis Report
1. Access the Zone Administration window.
See “ Accessing the Zone Administration Window ” on page 204 for more
information.
2. Select the Config tab.
3. Select a Configuration to be analyzed from the Name drop-down menu.
4. Select the Analyze Config button.
An analysis window appears. An example of an Analyze Config report is
shown in
Figure 56 .

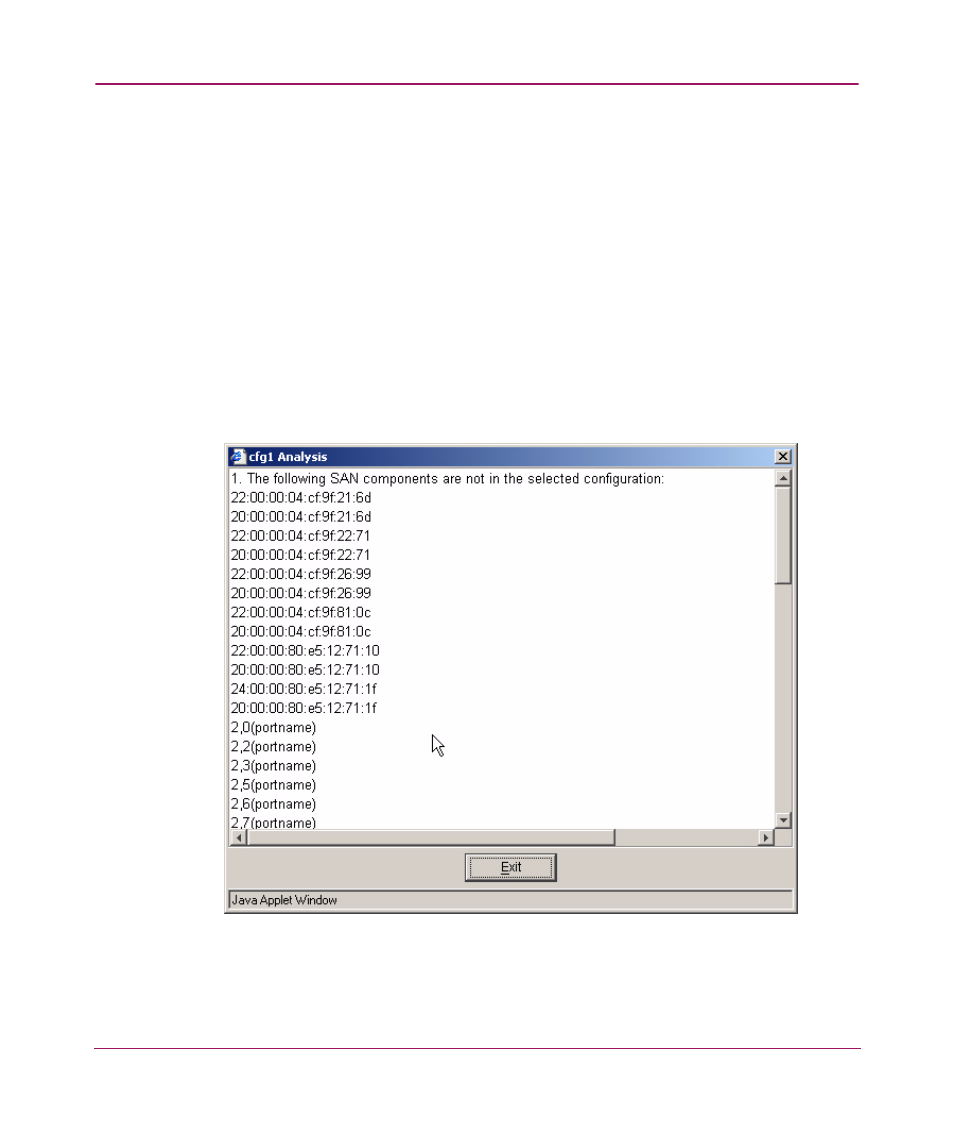

Figure 56: Analyze Config Report Example
5. View the Configuration Analysis. A report is created that lists:
