Chapter 13 Alternative Rack Mounting (4–Post)
6
NOTE Use the HP Rack Configuration Tools to determine where in
the rack to mount the HP Netserver.
1. Find the EIA unit markings on the rack and the location for the Netserver.
The screw holes cover a span of only one EIA unit, which is the height
requirement of the HP Netserver.
NOTE The Netserver can only be mounted into both holes of one EIA
Unit, but cannot be mounted across two EIA units. You cannot
use a hole in one EIA unit and a hole in another EIA unit.
2. Use the masking tape (or marking pen) to mark above the 3rd hole up on
both front columns, as shown in Figure 13-3.
Mark this face and
edge of the columns
with masking tape
or marking pen, as
shown.
Right
Side Left
Side
Front of
Rack
Rear of
Rack
Bottom of
HP NetServer
represents
the EIA unit
numbers on the
rack columns.
3rd Hole
From Bottom
1st Hole
From Bottom
Masking
Tape
Marker

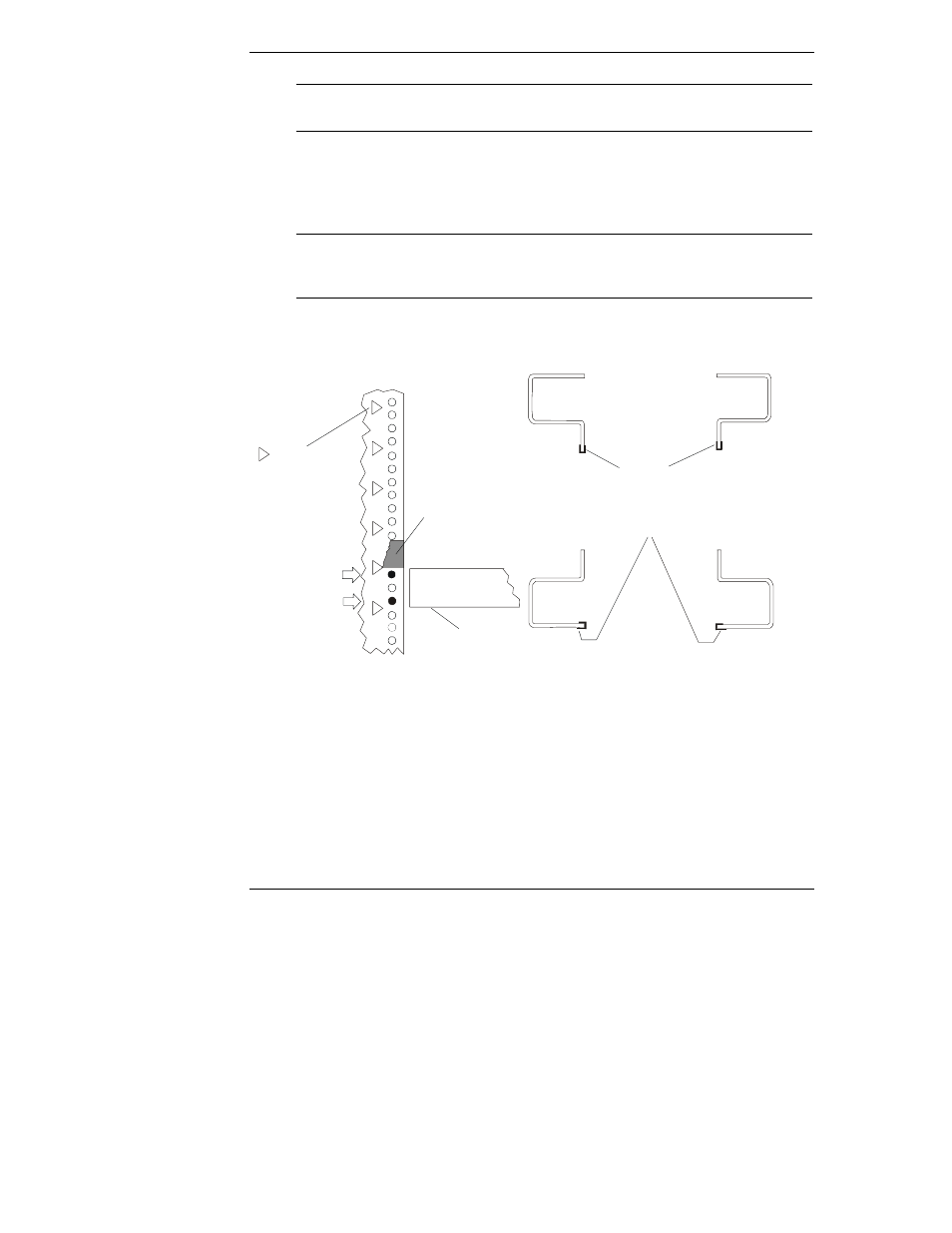

Figure 13-3. Location Marks on the Rack's Columns
3. Mark the forward face and edge of the left-rear and right-rear rack
columns, with masking tape, as shown in Figure 13-3.
Attaching Outer-Rails to the Rack
1. Pull the anti-tip foot forward out of the bottom of the rack.
See Figure 13-4 for the anti-tip foot location.
