Chapter 13 Alternative Rack Mounting (4–Post)
5
2. Remove the coiled wire spring at both ends (outer rail and sliding
mechanism). See Figure 13-2.
The coiled wire spring must be removed to separate the sliding mechanism
from the outer rail.
3. Pull the sliding mechanism away from the outer rail.
4. At the front of the outer rail, remove the screw holding the two flat springs
to the outer rail.
5. Lift both flat springs and the double washer away from the outer rail.
6. Repeat Steps 1-5 for the other outer rail.
Remove
hardware
as shown (2x).
Keep one
nut from
each side.

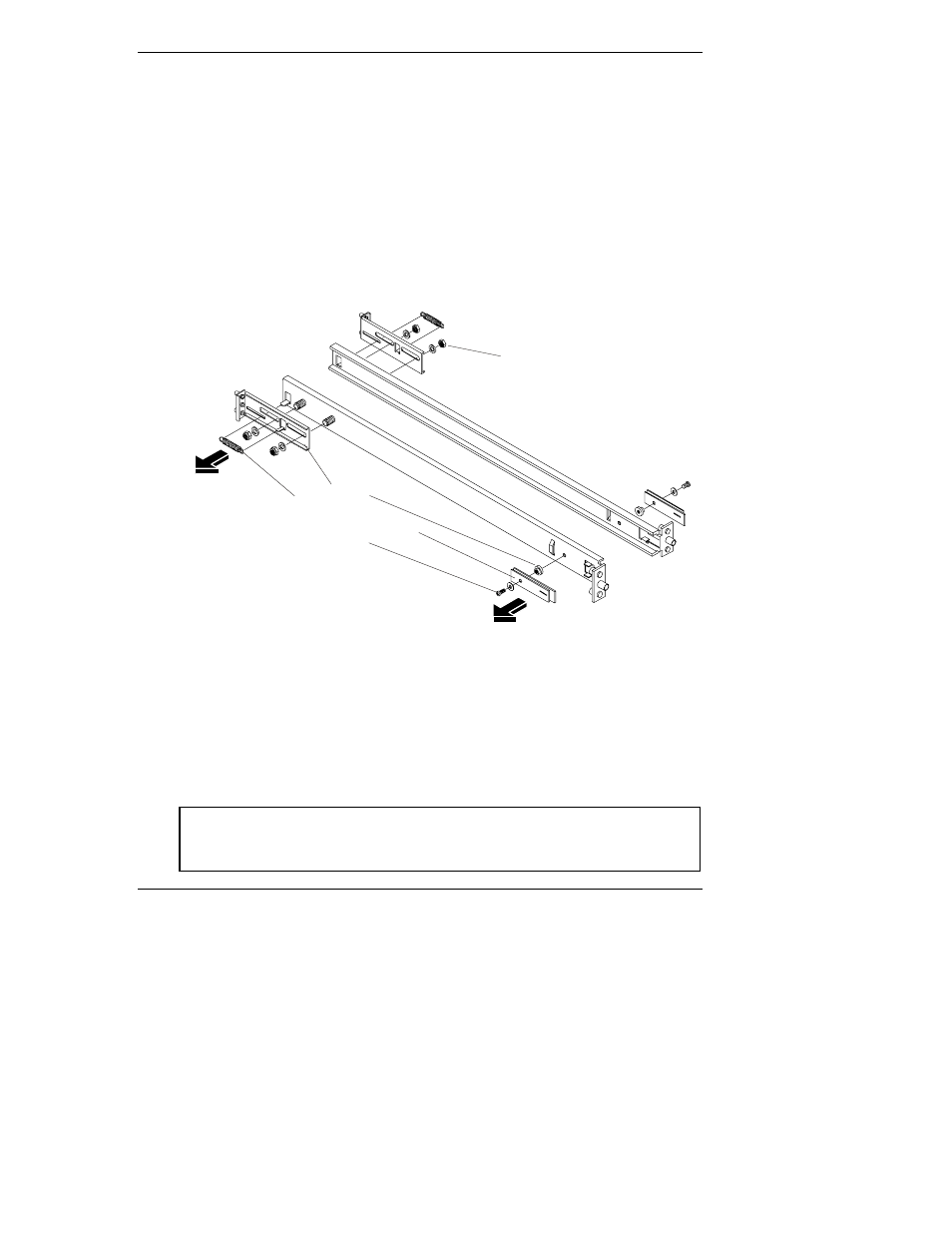

Figure 13-2. Removing Spring Assembly Hardware
Marking the Columns
Use this section to mark the front and rear columns of the HP Systems rack. The
outer-rails mount to the face of the front columns and the inside face of the rear
columns. The masking tape (or marking pen) is used to identify and mark the
locations on the columns.
CAUTION If other rack components are to be mounted in the rack below
the HP Netserver, install those components before starting to
mount the Netserver.
