Configuring SAN products and fabrics 88
The Add Trap Recipient dialog box appears ( Figure 53 ).

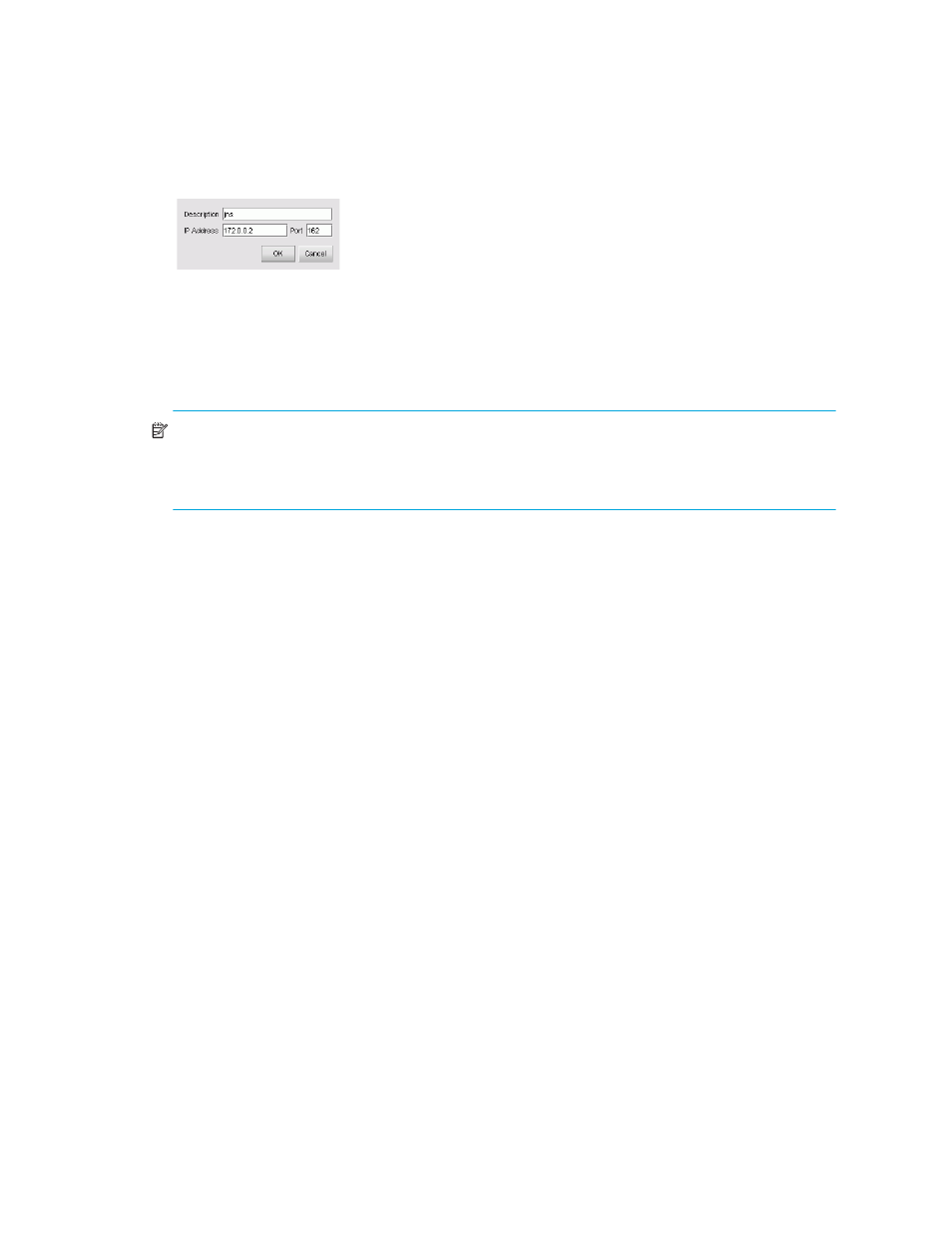

Figure 53 Add Trap Recipient dialog box
3. Enter the appropriate information in the following boxes:
• Description
• IP Address
• Port
NOTE: The HAFM appliance interprets trap data and displays the proper port value for all
firmware levels. When traps are generated on the switch, firmware versions 4.0 and below send the
actual port number and firmware versions 5.X and above add one to the port number to match the
specification. However, third party applications may not correctly interpret the information.
4. Click OK to close the Add Trap Recipient dialog box.
5. Click OK to close the Configure Trap Forwarding dialog box.
Removing trap recipients
To remove a trap recipient:
1. Select Monitor > Trap Forwarding from the HAFM menu bar.
The Configure Trap Forwarding dialog box appears (
Figure 52 ).
2. Highlight the recipient you want to remove from the Available Recipients table.
3. Click Remove.
4. Click OK.
