HA-Fabric Manager user guide 87
On the Physical Map, the ghost fabric shows its original products with minus symbols ( Figure 50 ).
On the Product List, the ghost fabric is shown as offline without products. The fabric log resets after
the fabrics merge.
When you split merged fabrics, the fabric that includes the principal switch becomes the persisted
fabric.
When you move a product in a persisted fabric’s topology, the new location is stored on the client.
If the updated fabric is not persisted, users logged in from a different client can show an invalid
layout.
Configuring trap forwarding
Trap forwarding enables you to configure the application to send SNMP traps to other computers.
To configure trap reporting, you must configure the target computer’s IP address and SNMP ports:
1. Select Monitor > Trap Forwarding from the HAFM menu bar.
The Configure Trap Forwarding dialog box appears (
Figure 52 ).

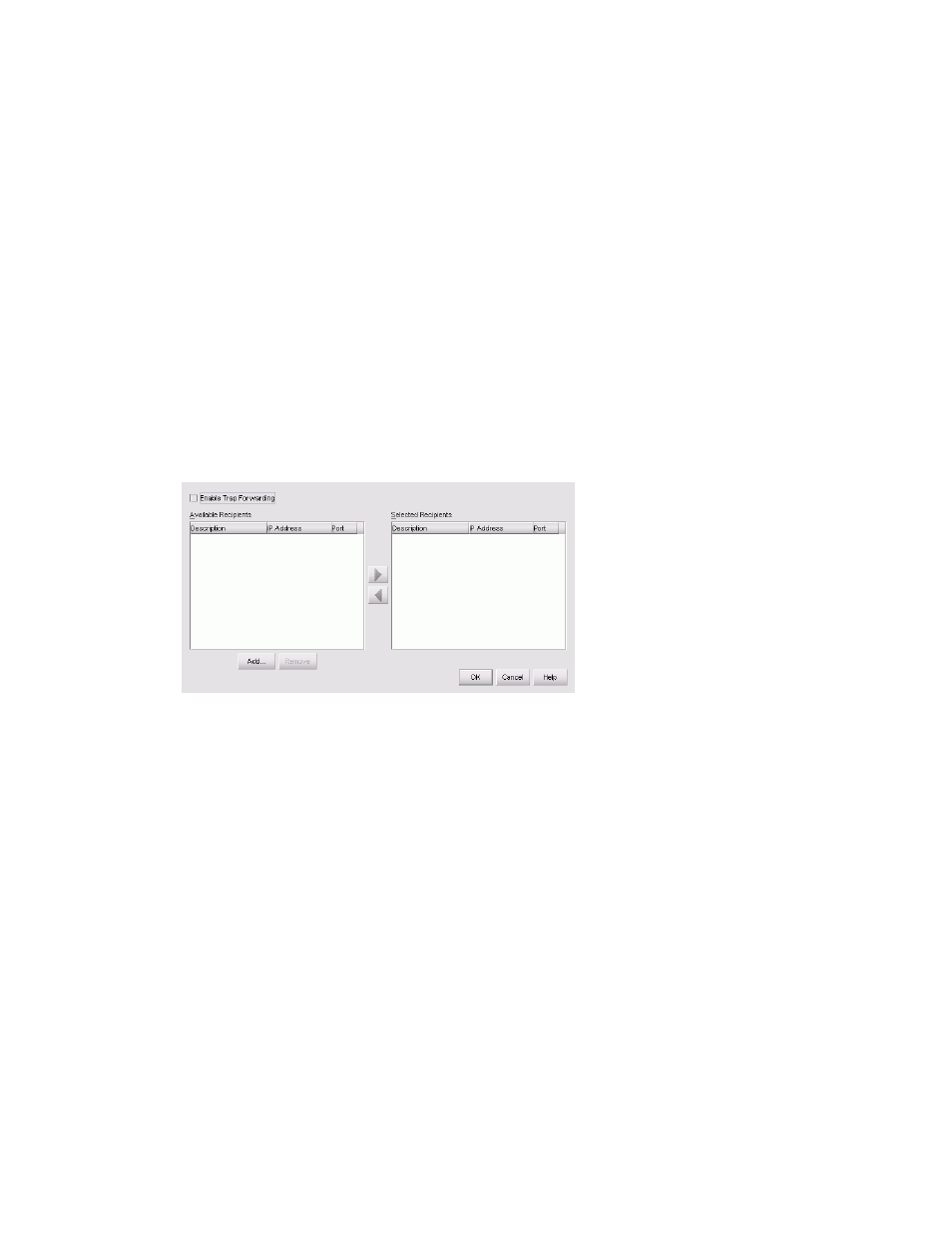

Figure 52 Configure Trap Forwarding dialog box
2. If necessary, add trap recipients to the Available Recipients list.
See ”
Adding trap recipients ” on page 87 for instructions.
3. Select the recipient that you want to provide trap messages to in the Available Recipients list.
4. Click the right arrow button.
5. Scan the Selected Recipients list, and, if necessary, select recipients to move from the list and
then click left arrow button.
6. Select the Enable Trap Forwarding check box.
7. Click OK.
Adding trap recipients
To add a trap recipient:
1. Select Monitor > Trap Forwarding from the HAFM menu bar.
The Configure Trap Forwarding dialog box appears (
Figure 52 ).
2. Click Add.
