Hiding routes
You can hide routes between two ports in a multiswitch fabric.
To hide the route:
1.
Display the route that you want to hide.
See ”
Displaying routes between ports
2.
Right-click the route and select Hide Route.
Displaying properties of routes
To display the properties of a route:
1.
Display the route that you want to hide.
See ”
Displaying routes between ports
2.
Right-click the route and select Properties.

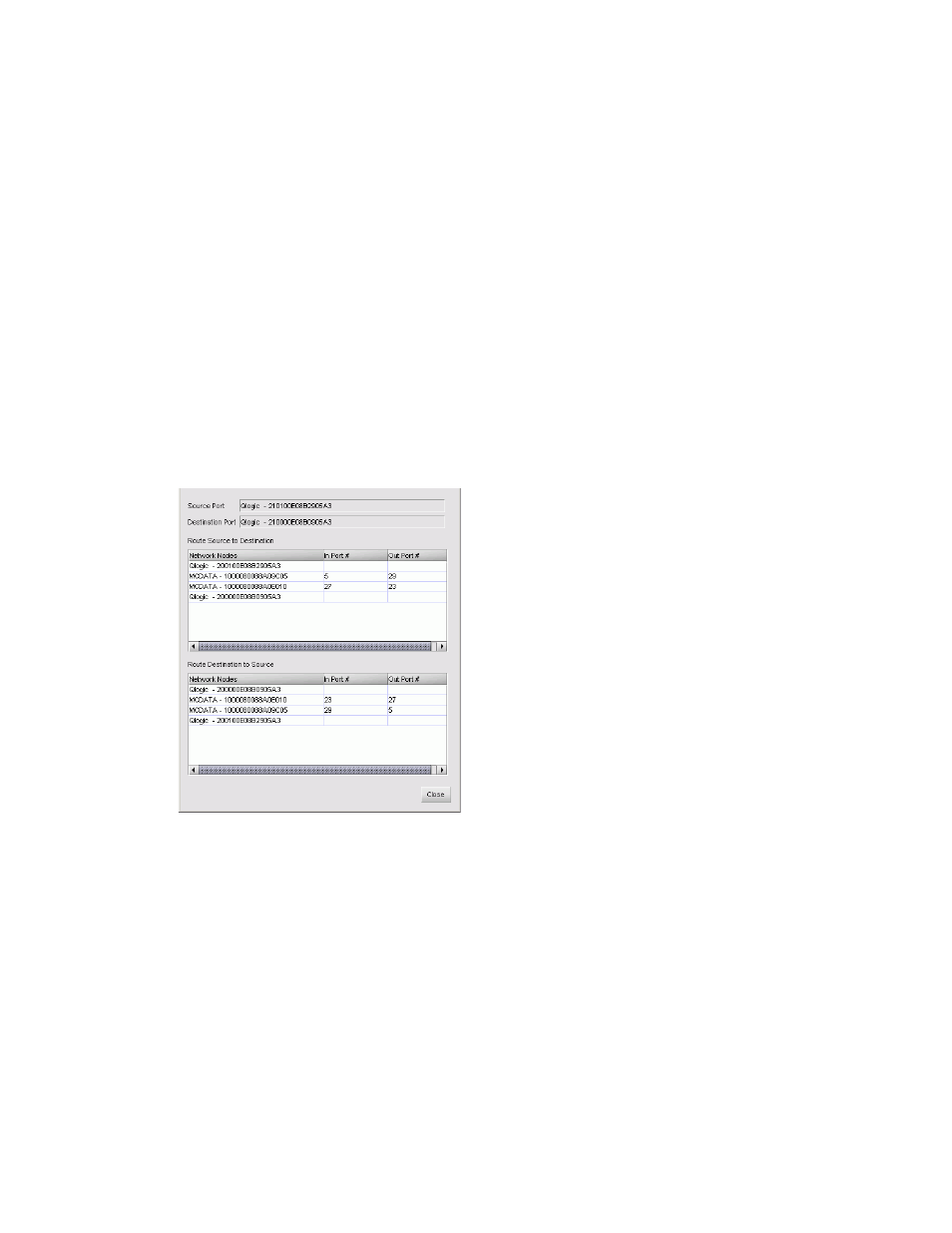

The Route Properties dialog box appears (
).
Figure 44
Route Properties dialog box
Displaying fabric properties
To display and change a fabric’s properties:
1.
Right-click a fabric icon or the background of an expanded fabric and select Properties.
