Optional HAFM features 122
The Planning window appears ( Figure 71 ).
2. Select Plan > Set Rules from the Planning window menu bar.
The Planning Rules dialog box appears (
Figure 77 .)

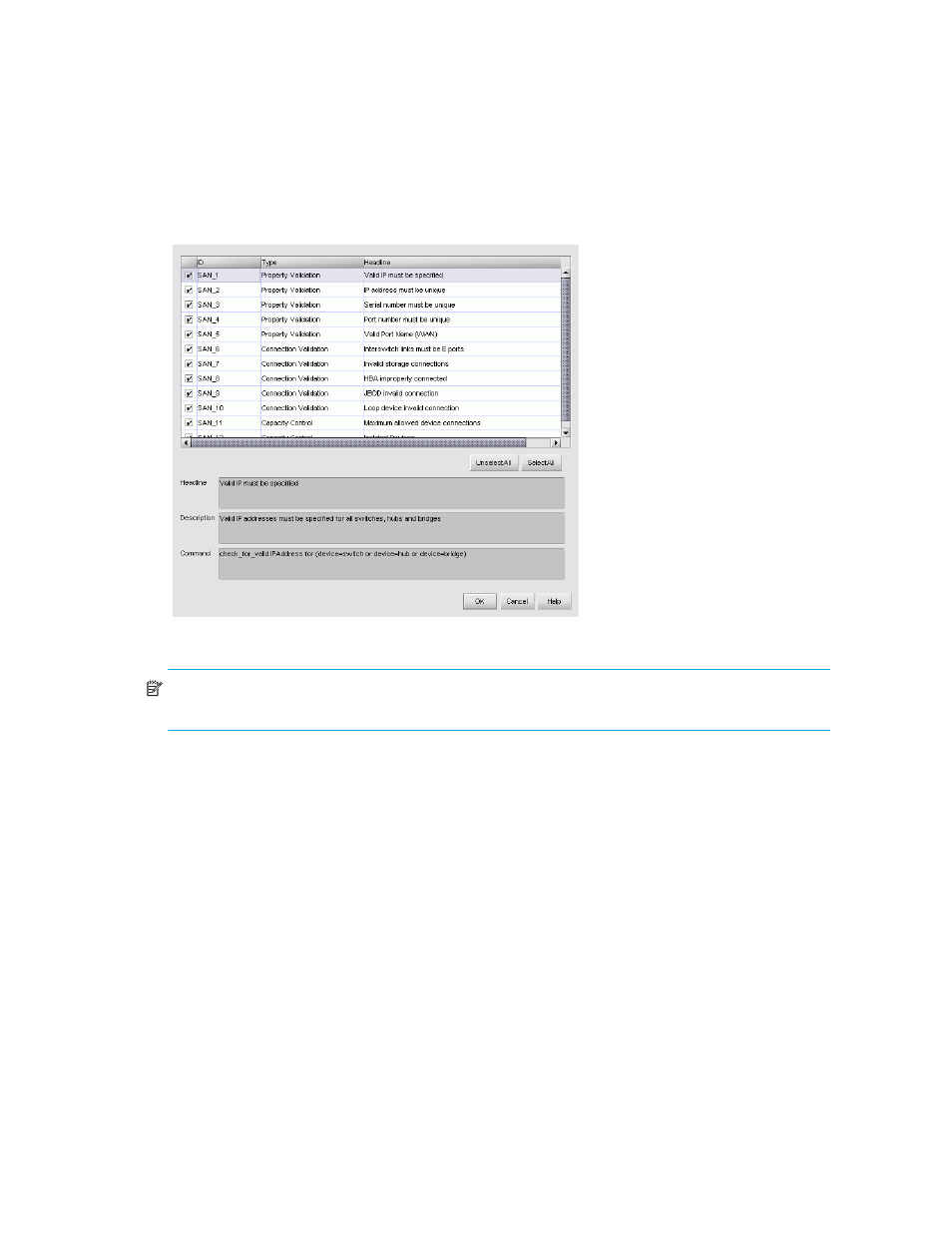

Figure 77 Planning Rules dialog box
NOTE: If spelling or syntax errors are detected, the rule may not appear in the Planning Rules
dialog box.
3. Select the rules you want to apply when evaluating the plan.
4. Click OK.
Plan evaluation
To evaluate a plan:
1. Select SAN > Open plan from the Planning window menu bar to open the plan.
2. Select Plan > Evaluate.
The application evaluates the plan and shows the results in the SAN Evaluation Report window.
3. Review the report. Click the hyperlinks to jump to devices and view the tips to determine
resolutions.
4. Resolve the issues.
5. Select Plan > Evaluate to revaluate the plan.
6. If more problems are identified, repeat step 2 through step 5 .
