Optional HAFM features 114
• Three tabs:
• Physical Map
• Product List
• Event Management
• A menu bar.
Click a menu item to see a list of available options.
• A device toolbox.
The toolbox provides tools to add, select, and connect devices in the SAN. To see a definition of
a tool, position your curser over the tool.
• Master log.
• Minimap.
To open the planning window select View > Planned SAN from the HAFM menu bar.

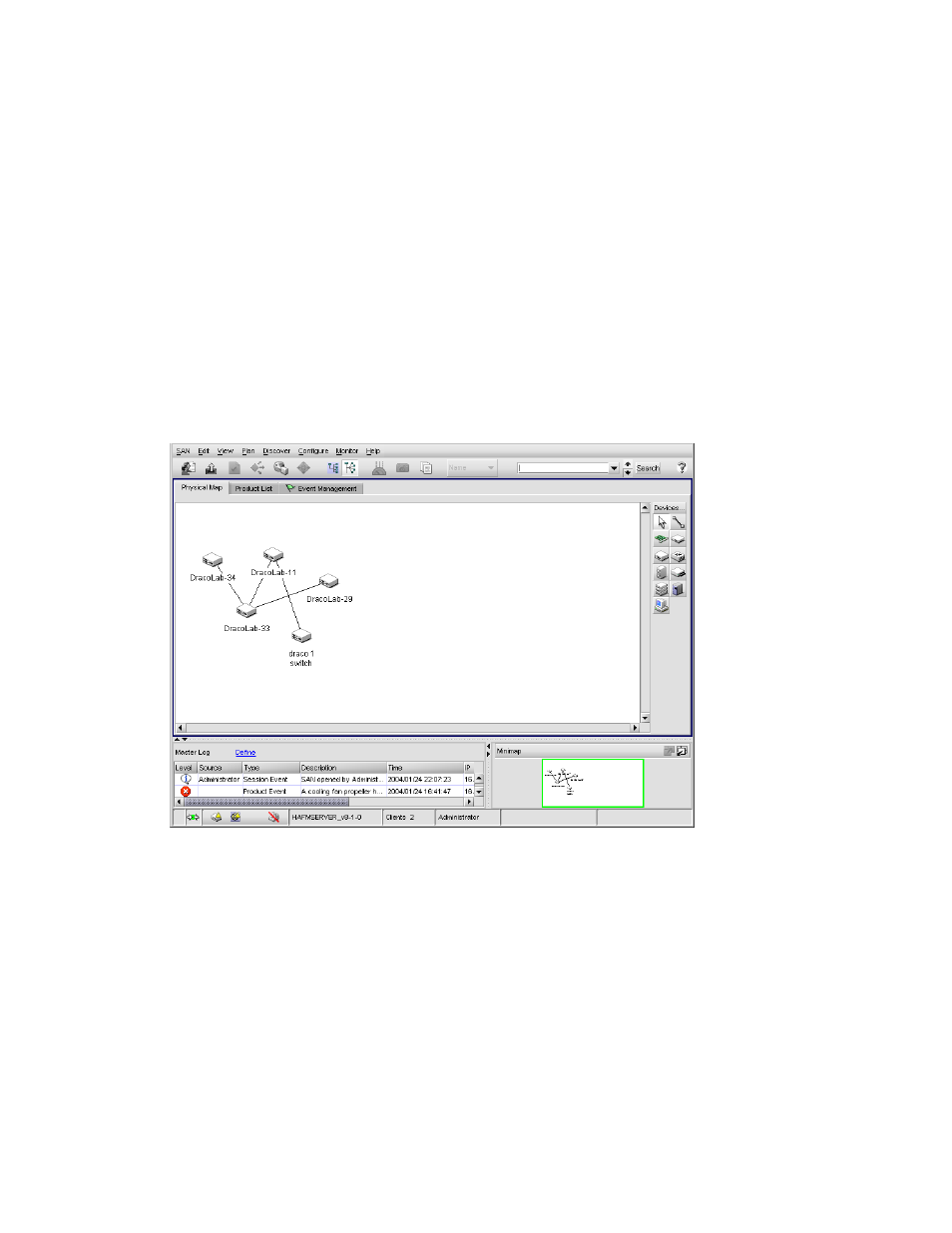

Figure 71 Planning window
Plan design
By designing a plan, you can configure, connect, and arrange planned devices. This saves you
cost and time by enabling you to evaluate the plan before implementing the design.
Planning a SAN
To plan a new SAN:
1. Select SAN > New Plan (or press Ctrl+N) from the Planning window menu bar.
