Using the Fabrics View
121 High Availability Fabric Manager User Guide
The Show Route dialog box ( Figure 56 ) displays products (switches and
directors) that support route reporting and are managed by this HAFM server in
the Select Source Node panel.

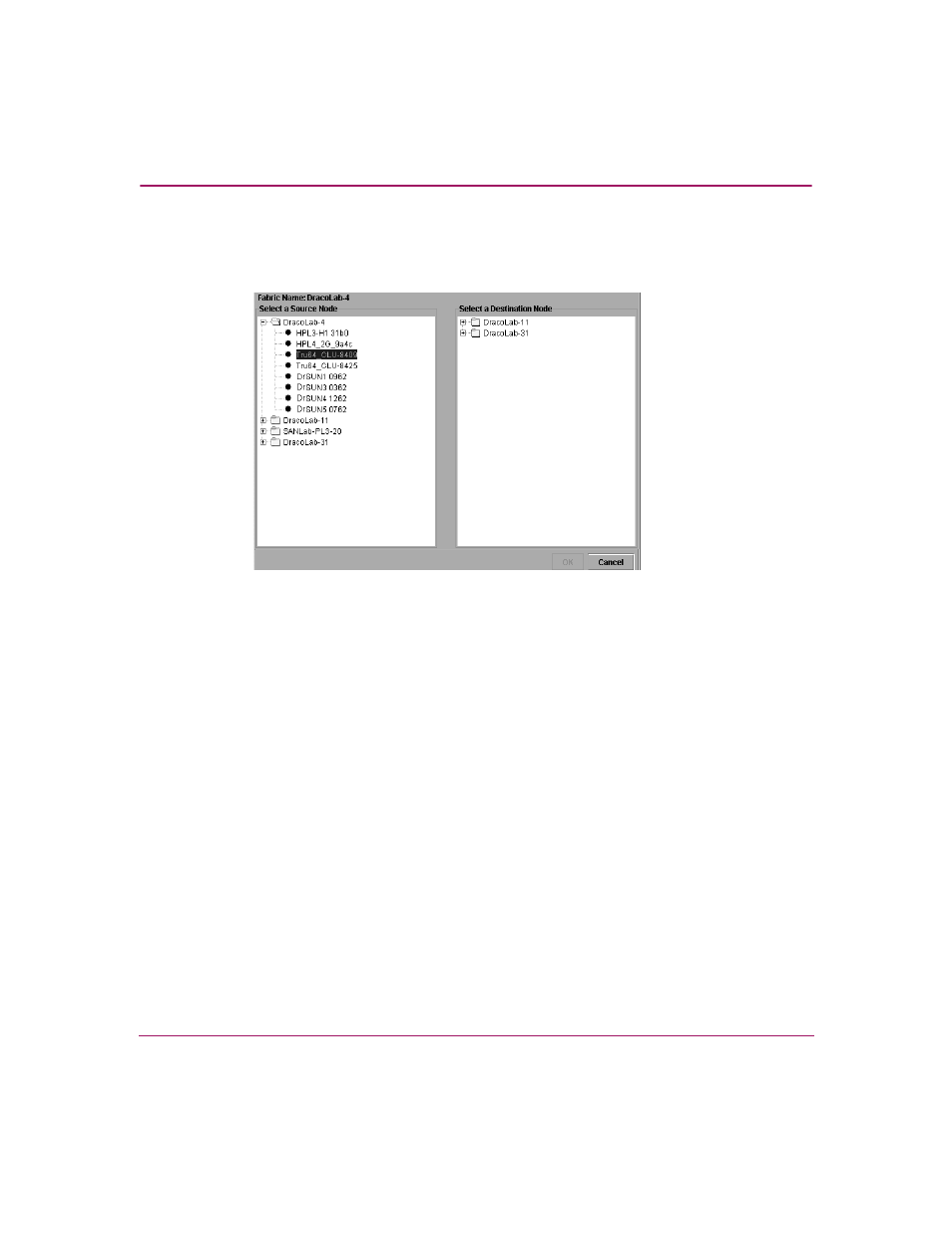

Figure 56: Show Route dialog box
To show the route for two specific nodes, perform the following steps:
1. Click the icon by a product in the Select Source Node panel to expand the list
of nodes attached to the product.
2. Click a source node to select it.
3. A list of products displays in the Select Destination Node panel.
4. Click the icon by a product in the Select Destination Node panel to expand
the list of nodes attached to the product.
5. Click a destination node to select it.
6. Click OK.
The route between the destination nodes (indicated by a small circle with an N
in the center) displays in the Topology tab’s view area (
Figure 57 on
page 122).
The route continues to be displayed until there is a change to the fabric, the
route is changed, or the hide route option is selected.
