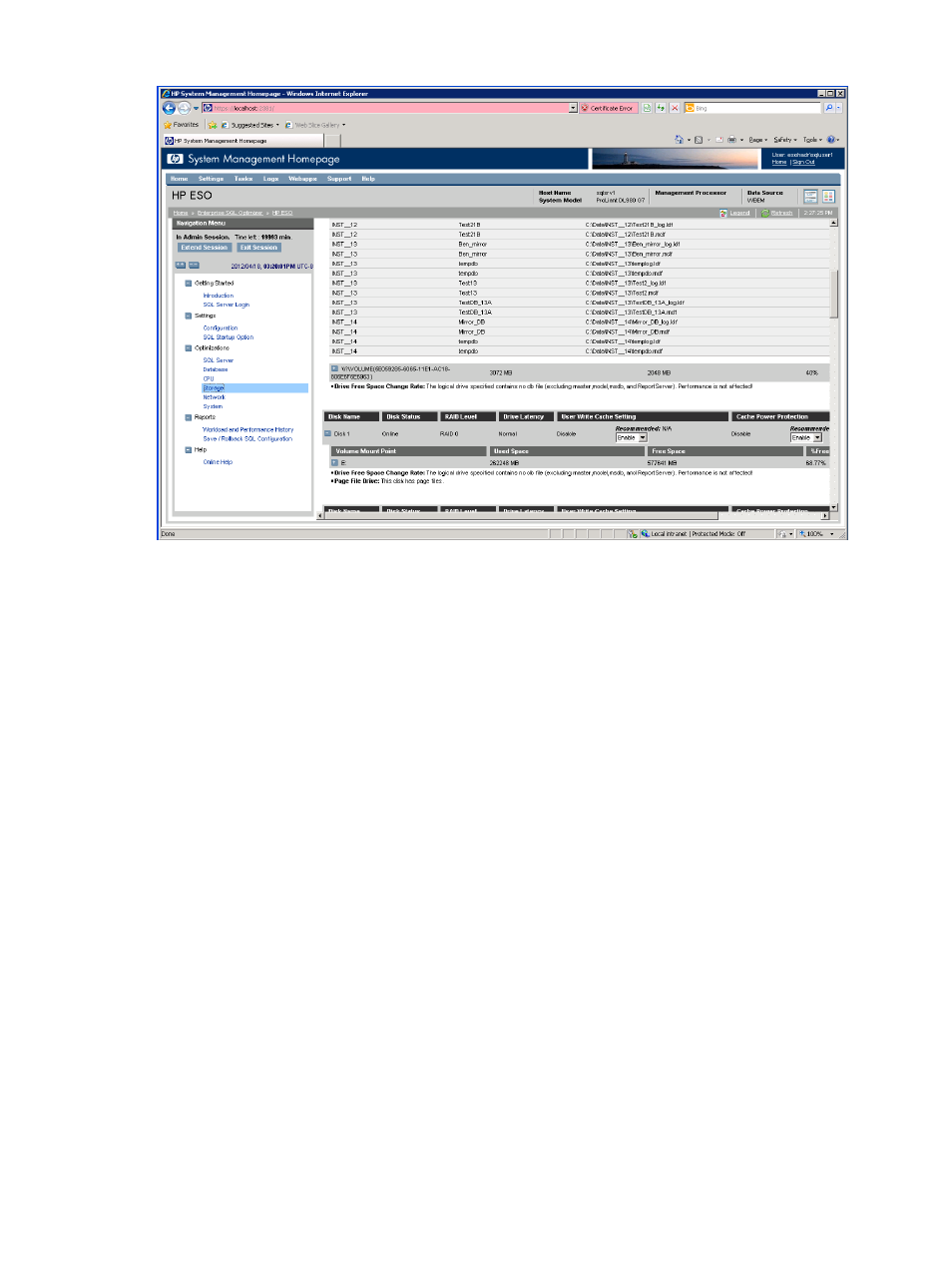

Figure 28 Storage Page
Database RAID Level
It is highly recommended that TempDB files and Log files for user databases be on physical disks
with RAID 1 + 0 or RAID 1.
Drive Free Space
When drive free space reaches less than 20%, a Warning message displays, with a
recommendation to either move the file to a larger drive or free up more space on the current drive.
Volume Mount Point
Volume mount points are specialized file system objects which are used to mount and provide an
entry point to other volumes. Mount points can be created in a directory on a file system, which
gives a reference to the root directory of the mounted volume. HP ESO will show all mount points
on disk with volume mount point configured.
Network
The Network page includes controls for setting network interface NUMA Node, Interrupt, and Port
affinities.
Optimizations Pages 27
