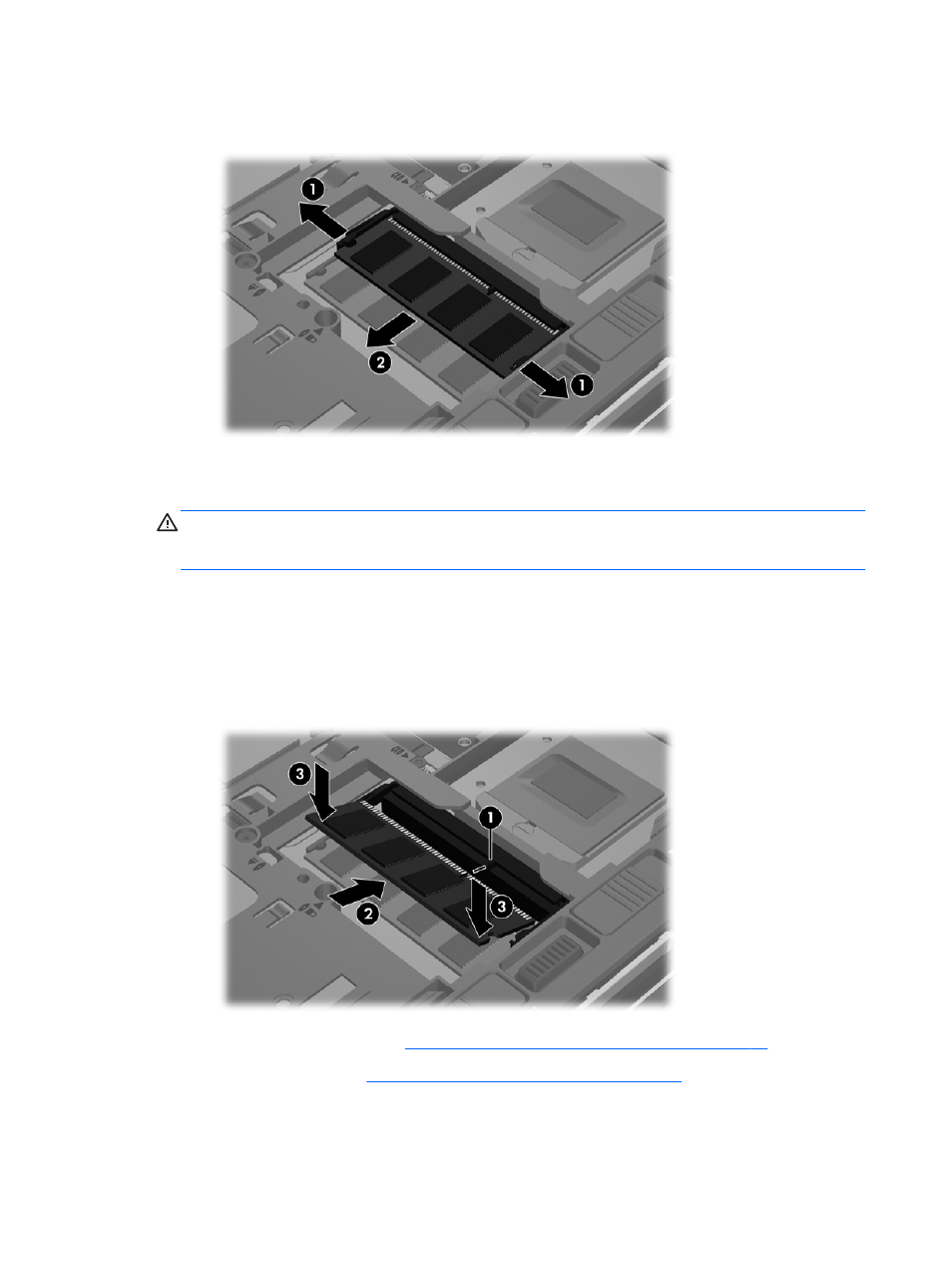

Grasp the edge of the memory module (2), and gently pull the module out of the memory
module slot.

To protect a memory module after removal, place it in an electrostatic-safe container.

7.

Insert a new memory module:

CAUTION:

To prevent damage to the memory module, hold the memory module by the edges

only. Do not touch the components on the memory module, and do not bend the memory
module.

a.

Align the notched edge (1) of the memory module with the tab in the memory module slot.

b.

With the memory module at a 45-degree angle from the surface of the memory module
compartment, press the module (2) into the memory module slot until it is seated.

c.

Gently press the memory module (3) down, applying pressure to both the left and right
edges of the memory module, until the retention clips snap into place.

8.

Replace the service door. (See

Removing or replacing the service door on page 47

.)

9.

Replace the battery. (See

Inserting or removing the battery on page 40

.)

68

Chapter 9 Memory modules
