Setting Up the Application
76 HA-Fabric Manager User Guide
4. Click Add to add a new trap recipient. See “ Adding Trap Recipients ” on
page 76 for more instructions.
5. Click the recipient’s row in the table and click Edit to edit an existing trap
recipient. See “ Editing Trap Recipients ” on page 77 for more instructions.
6. Click OK.
Turning On the SNMP Agent
To turn the SNMP Agent on, perform the following:
1. Choose Monitor > SNMP Agent > On.
Turning Off the SNMP Agent
To turn the SNMP Agent off, perform the following:
1. Choose Monitor > SNMP Agent > Off.
Adding Trap Recipients
To add a trap recipient during SNMP agent configuration, perform the following:
1. Choose Monitor > SNMP Agent > Setup. The SNMP Agent Setup dialog
box displays, as shown in Figure 28 on page 75.
2. Click the Trap Recipients tab.
3. Click Add. The Add Trap Recipient dialog box displays, as shown in
Figure 29 .

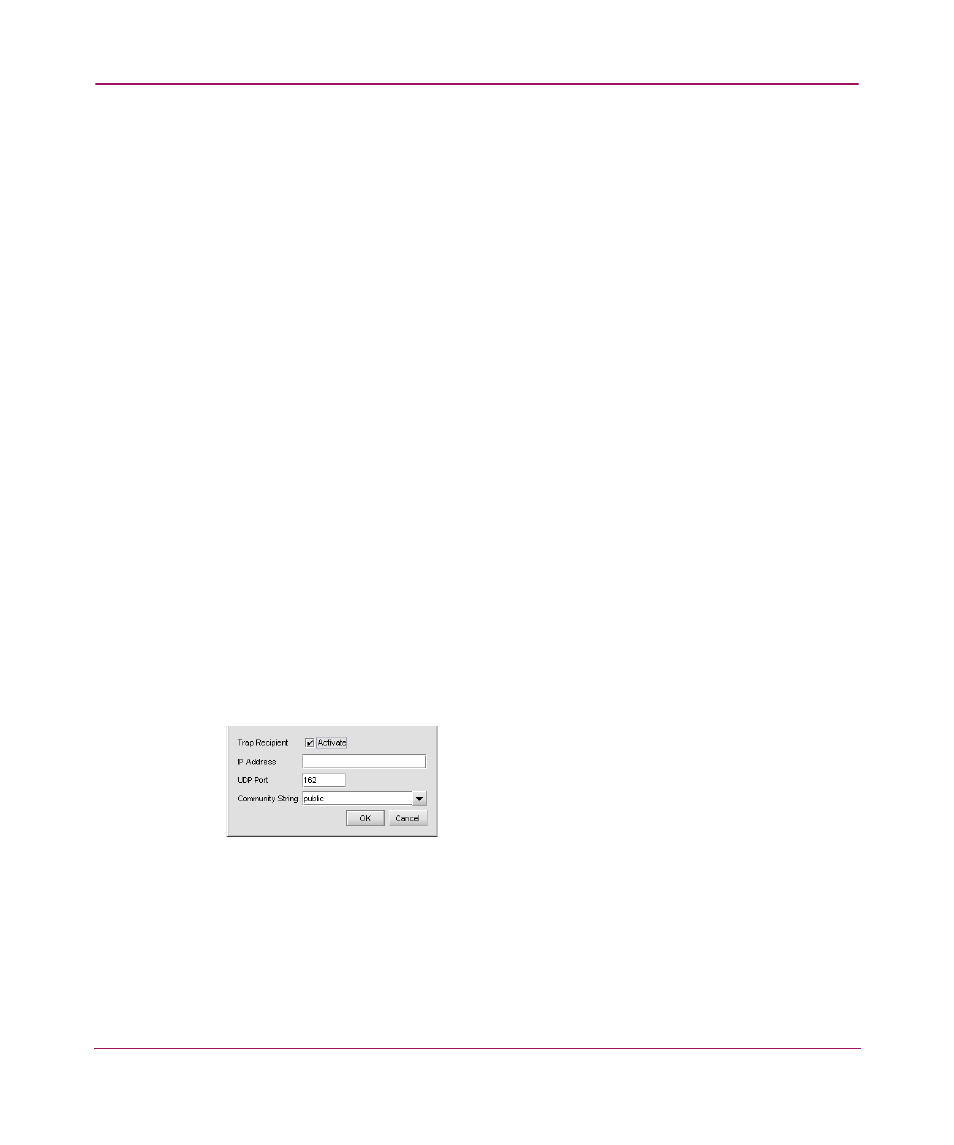

Figure 29: Add Trap Recipient dialog box
4. If you want this trap recipient to be active, ensure the Activate check box is
selected.
5. Enter the IP address or DNS host name of the trap recipient in the IP Address
field. This name must be 64 characters or fewer.
