Monitoring SAN Products
124 HA-Fabric Manager User Guide

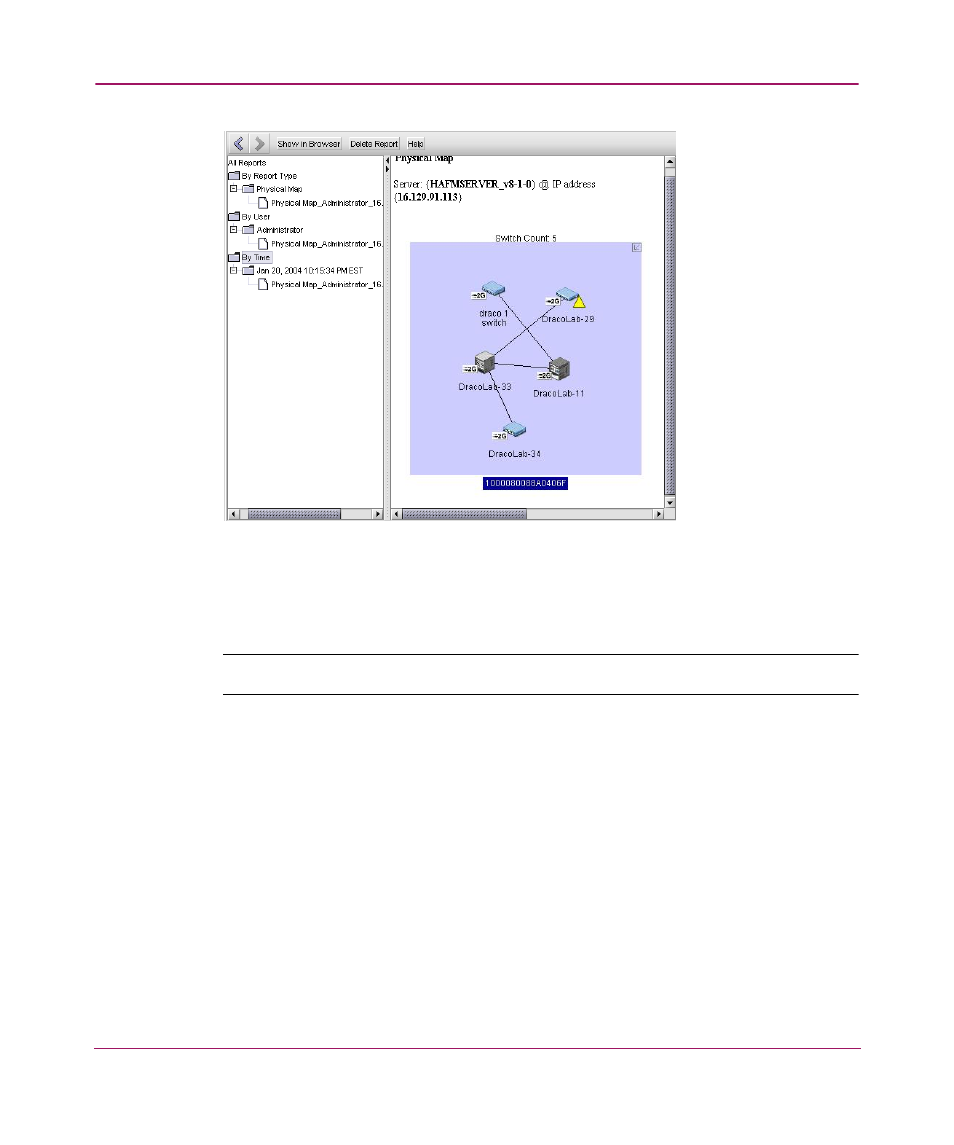

Figure 67: HAFM Reports Dialog Box
1. In the left-hand pane, select the report you want to view. If you don’t see the
report you want to view, generate it first by following the instructions in
“
Generating and Printing Reports ” on page 122.
Note: Hyperlinks in reports will only be active as long as the source data is available.
2. Click the Show in Browser button to view the report in your Web default
browser window.
3. Choose File > Print in the Web browser.
4. Click the X button in the upper right-hand corner of the HAFM 8 Reports
window to close it.
Deleting Reports
You can delete reports using the View Reports dialog box.
1. From the Monitor menu, select Report, then View. The HAFM 8 Reports
dialog box displays, as shown in Figure 67 .
