Operations
13 HP StorageWorks 30ux Standalone UDO Drive User’s Guide

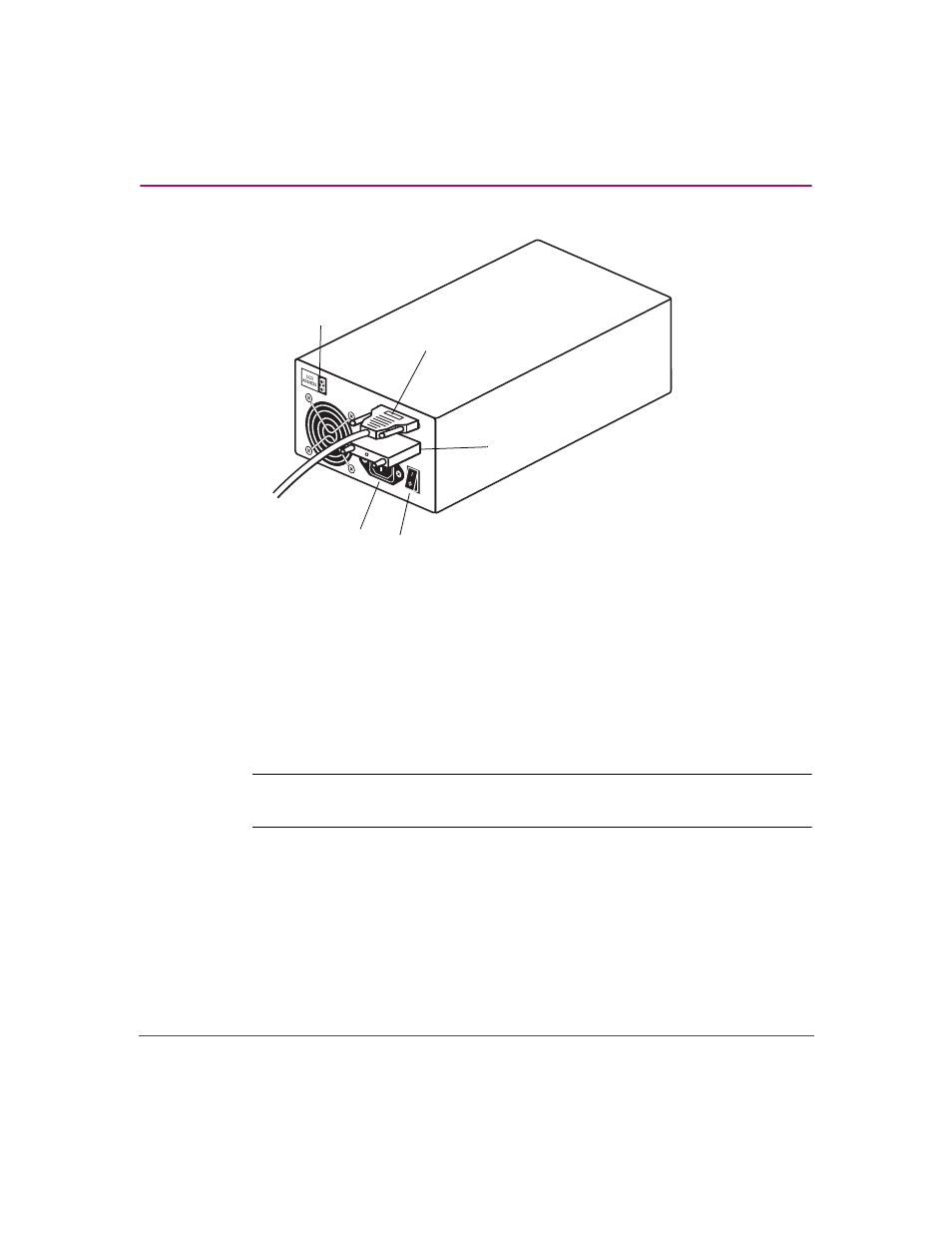

Figure 2: Back panel features
Back panel features descriptions
■ SCSI ID switch—Used to set the SCSI ID.
Note: Be careful not to inadvertently change the SCSI ID when handling the standalone
UDO drive.
■ Power connector—Connection for the power cord.
■ Power switch—Turns power to the standalone UDO drive on and off.
■ SCSI port with terminator —68-pin high-density SCSI connector (Micro
D-type). Cable may be attached to either connector.
■ SCSI port with SCSI cable—68-pin high-density SCSI connector (Micro
D-type). Terminator may be attached to either connector.
1
SCSI ID switch
2
Power connector
3
Power switch
4
SCSI port with terminator
5
SCSI port with SCSI cable
1
5
4
3
2
